| Place of Origin: | China Yixing |
|---|---|
| Brand Name: | HY |
| Certification: | CE |
| Model Number: | HY-GYTC-2 |
| Minimum Order Quantity: | 100 pieces |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
| AL2O3: | ≥ 99.9% | Product Name: | Aluminum Oxide Ceramic Industrial Mechanical Components |
|---|---|---|---|
| Color: | White | Density: | 3.85g/cm³ |
| Sintering Temperature: | 1750℃ | Hardness （HV): | 1600 |
| Size: | Customization |
Aluminum oxide ceramic industrial mechanical components, wear-resistant and corrosion-resistant, sealed grinding rings

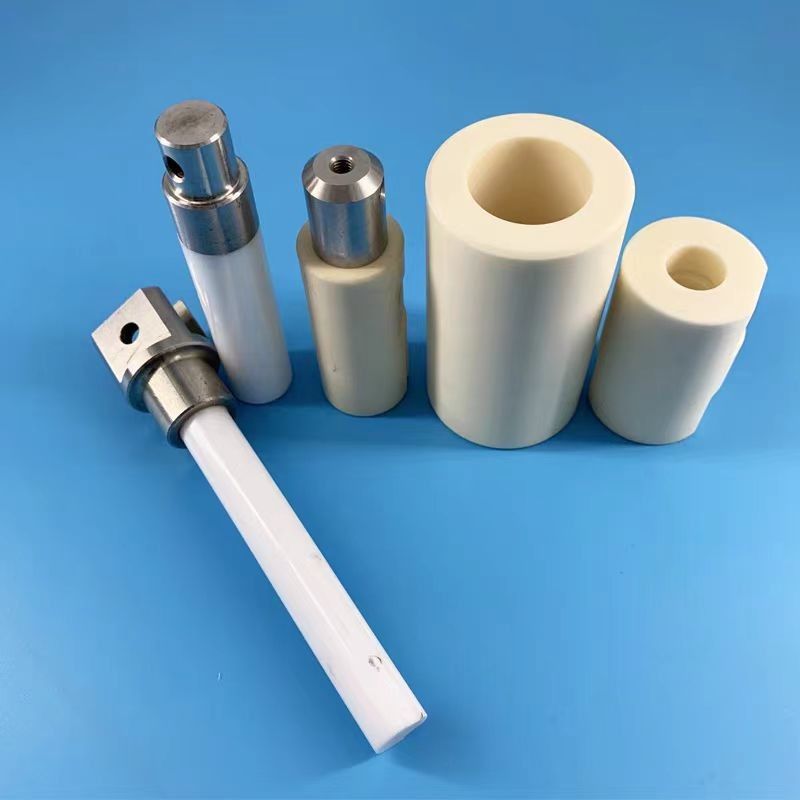

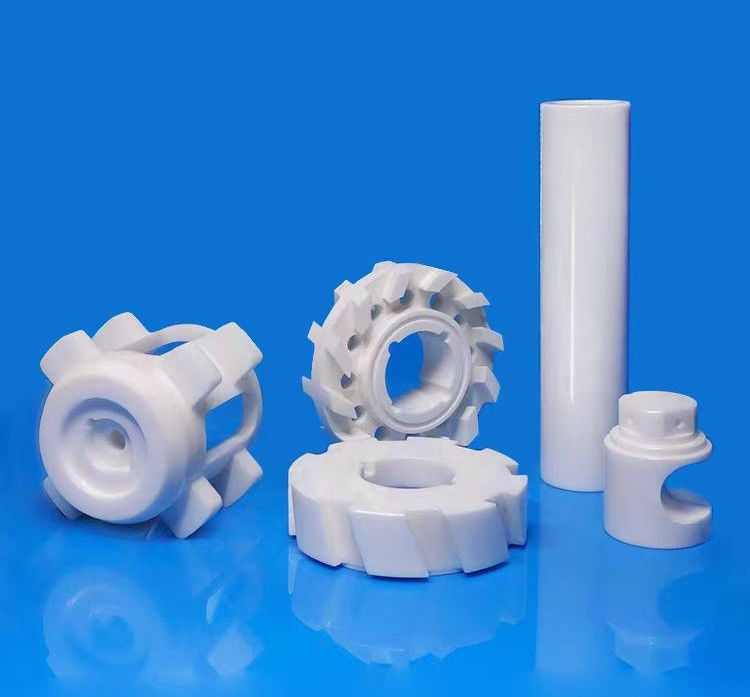

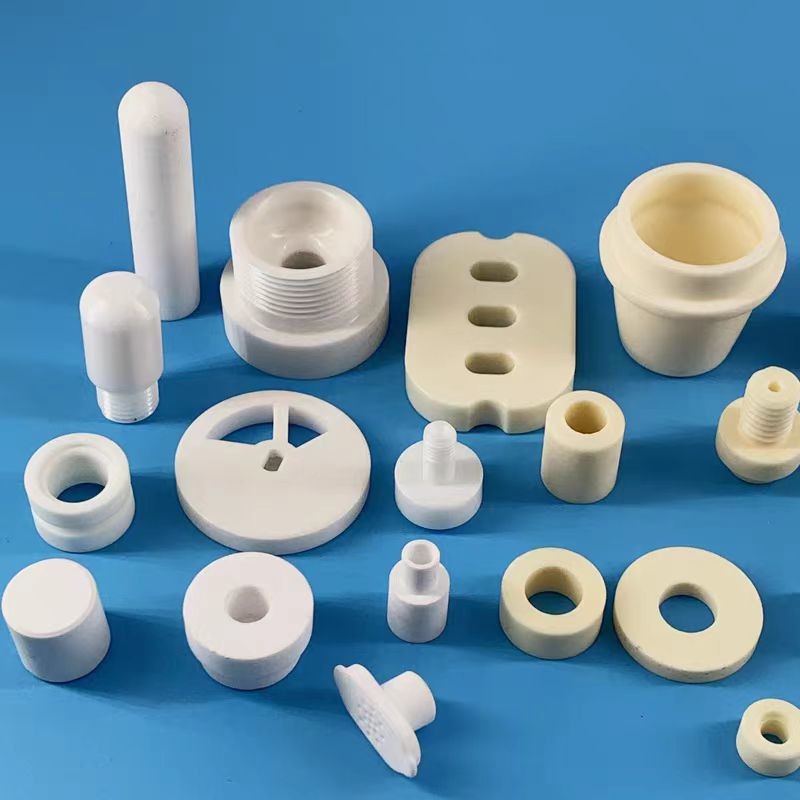

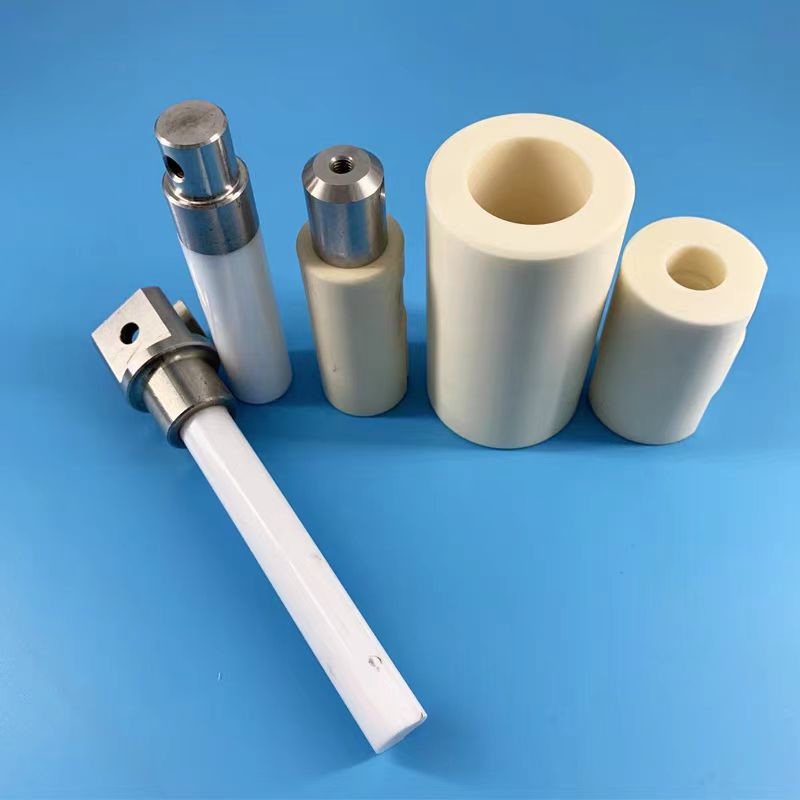

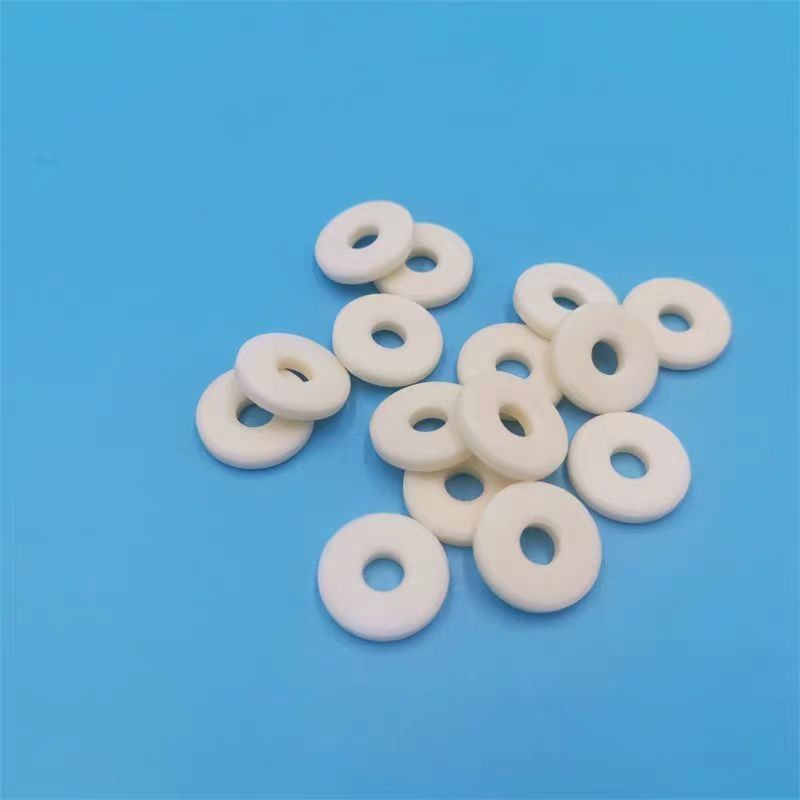

Aluminum oxide ceramic industrial mechanical components
New ceramic materials occupy an important strategic position. Taking high-temperature structural ceramics as an example, ceramic materials are traditionally considered brittle and unimaginable as mechanical components. But in fact, after decades of research, the strength and toughness of ceramics have been greatly improved, and their properties have also been significantly improved. The toughness of some varieties is even close to that of cast iron, and a series of structural materials called high-temperature structural ceramics have emerged. They have entered traditional industrial fields such as mechanical industry, automotive industry, and chemical industry as thermal engine components, cutting tools, wear-resistant and corrosion-resistant components, promoting product updates and industrial technological transformation, and improving the economic and social benefits of the industry.
The application of high-temperature structural ceramics in heat engines emerged in the 1980s, and the efficiency of heat engines in converting thermal energy into kinetic energy directly depends on their operating temperature. The current working temperature limit of superalloys is about 1080 ℃. The use of high-temperature structural ceramics can increase the working temperature of the heat engine to around 1370 ℃, thereby increasing the maximum theoretical efficiency of the heat engine from about 60% to about 80%. In addition, ceramic components are lightweight, do not require water cooling, have less friction, are resistant to wear and corrosion, and are beneficial for reducing fuel consumption and improving service life. Various high-temperature ceramic thermal engine components have been put into production.
In addition, high-temperature structural ceramics can replace metals in heat exchangers for recycling industrial waste heat, increasing the working temperature by 270 ℃ and achieving a fuel savings rate of up to 50%. The cutting speed used as cutting tools is 10 times that of high-speed steel tools. When used as wear-resistant and corrosion-resistant components (sealing rings, bearings, nozzles, liners, etc.), the service life and efficiency of mechanical and chemical equipment can be significantly improved. Taking refractory materials as an example. The technological transformation of the metallurgical industry closely relies on new refractory materials. The new large blast furnace requires the use of silicon nitride combined with silicon carbide products; High quality magnesium carbon products are required for top and bottom combined blowing converters and ultra-high power electric furnaces; Continuous steel casting requires products such as aluminum, zirconium, carbon, and nitrides. Advanced large-scale cement rotary kilns and glass kilns also require a variety of new refractory materials.
Physicochemical indexes of alumina solid rod:
| Item | Unit | Typical Values |
| Physical Properties | ||
| Colour | Ivory | |
| Density | g/cm3 | 3.85 |
| Alumina Content | % | 99% |
| Gas Permeability | 0 | |
| Water Absorption | % | 0% |
| Physical Properties | ||
| MONS’Hardness | 82 | |
| Vickers Hardness(Hv50) | Gpa(kg/mm2) | 15.7(1600) |
| Flexural Strength(20℃) | Mpa | 330 |
| Compressive Strength(20℃) | Mpa | 2000 |
| Fracture Thoughness(20℃) | Mpam1/2 | 4 |
| Thermal Properties | ||
| Thermal Conductivity(20℃) | W/(m.k) | 27.5 |
| Thermal Expansion Coeffcient | 10-6/℃ | 7.6 |
| Thermal Shock Resistance | △T℃ | 200 |
| Maximum Use Temperature | ℃ | 1650 |
| Electrical Properties | ||
| Dielectric Strength | KV/mm | ＞12 |
| Dielectric Conatant | ε0 | 9-10 |
| Dielectric Loss Angle(1MHz) | 0.0002 | |
| Volume Resistivity(20℃) | Ω.cm | ＞10 |
source factories are complete in variety:
Machinery industry, electronics industry, electrical industry, chemical industry, medical industry, textile industry
