| Place of Origin: | China Yixing |
|---|---|
| Brand Name: | HY |
| Certification: | ISO9001 |
| Model Number: | HY-BZGY |
| Minimum Order Quantity: | 1ton |
| Price: | Negotiation |
| Packaging Details: | 25kgs PVC bags+1MT big bag |
| Delivery Time: | two weeks |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 300 tons one month |
| Performance: | High Strength And Good Toughness | Color: | White |
|---|---|---|---|
| High Light: | High Strength White Fused Alumina,White Fused Alumina Good Toughness,99.2% white alumina |
||
good toughness high strength charging material for electric furnace tabular corundum Electric furnace lining

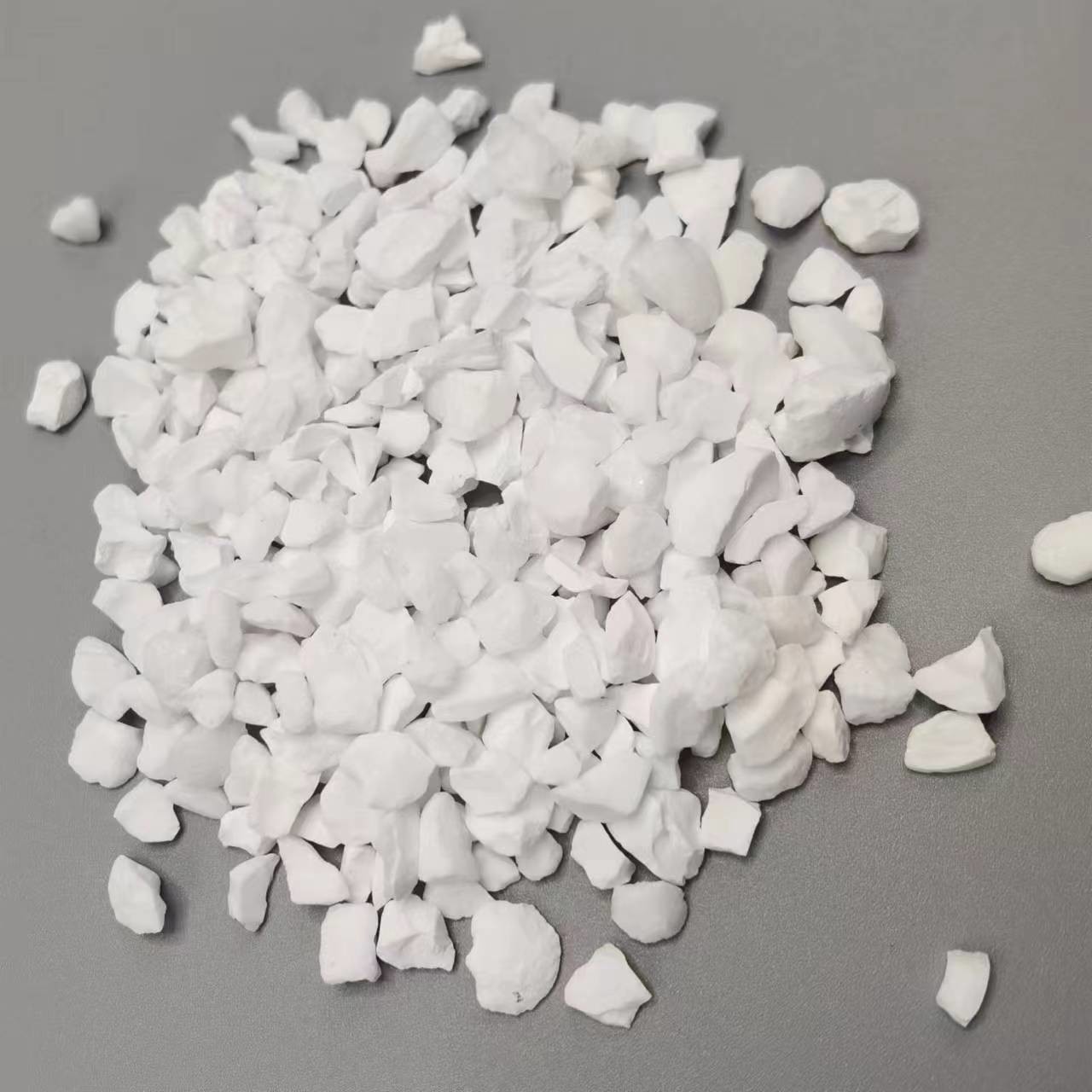

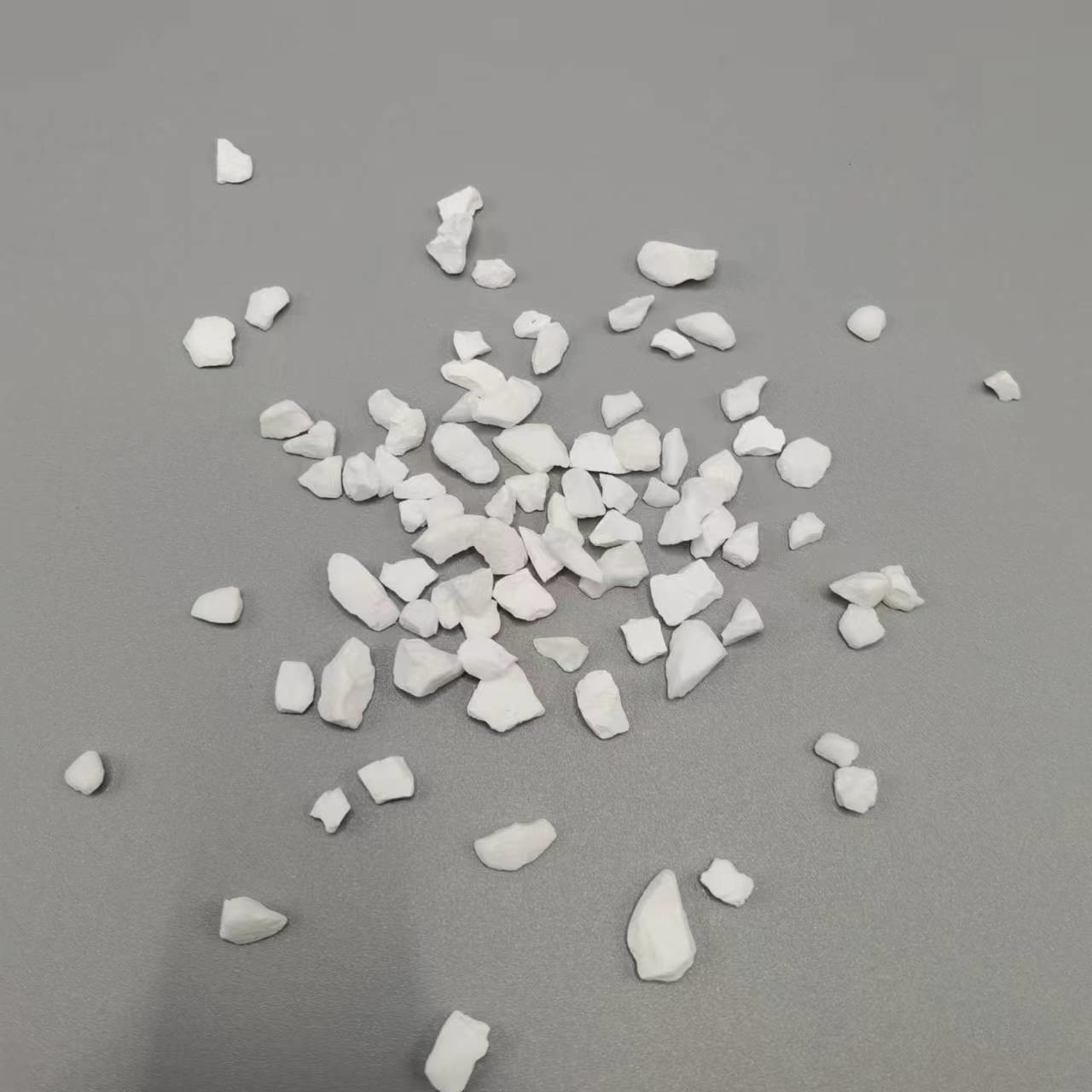

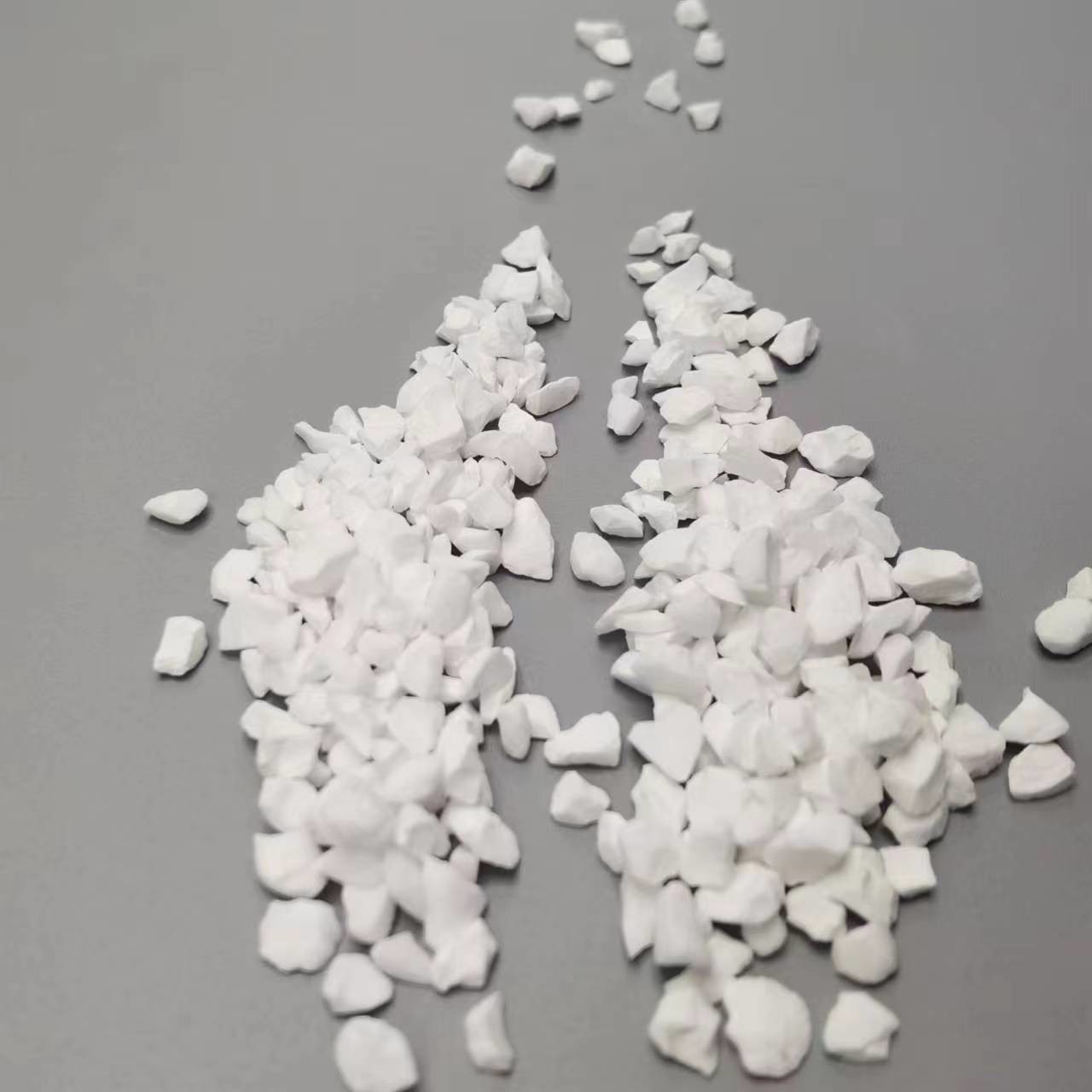

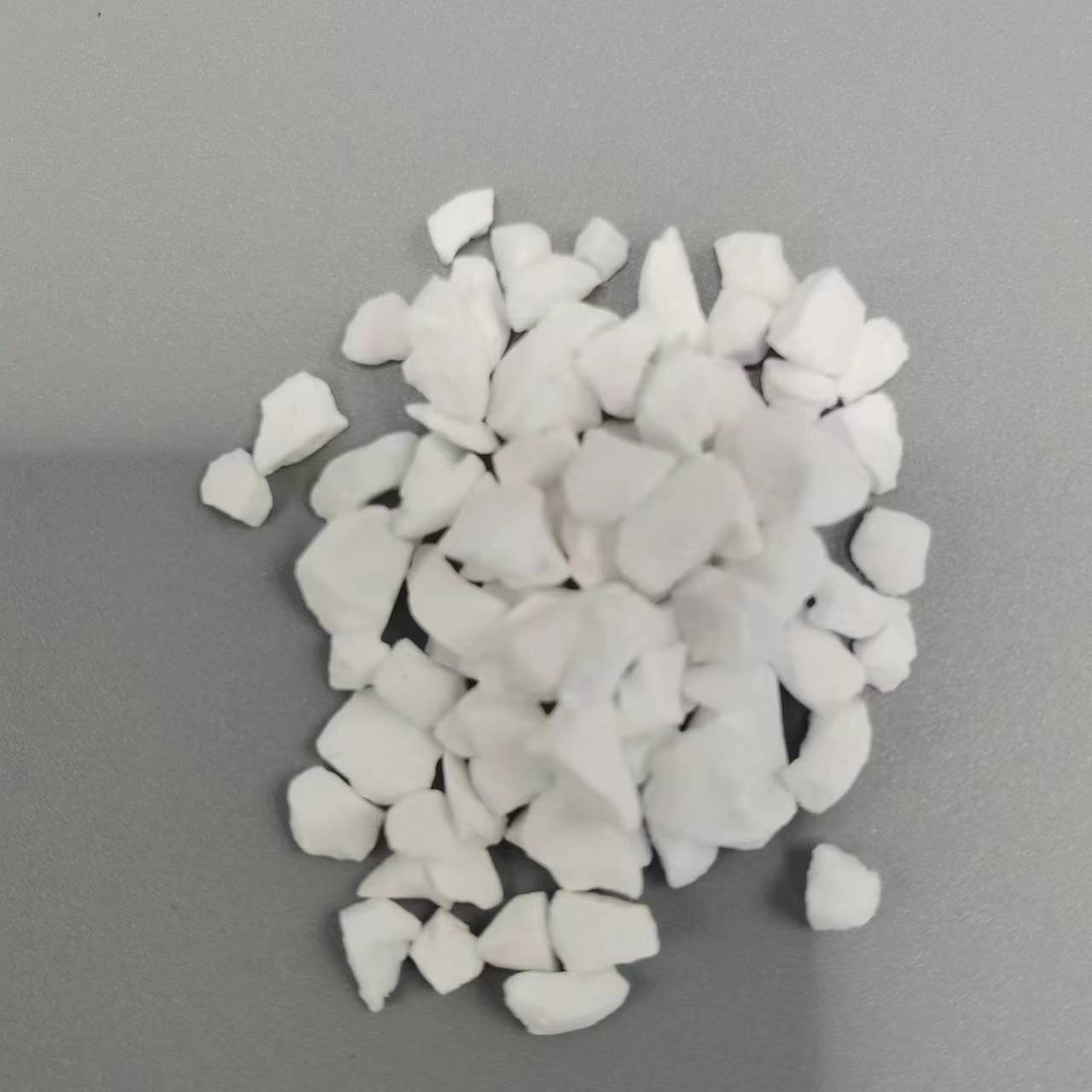

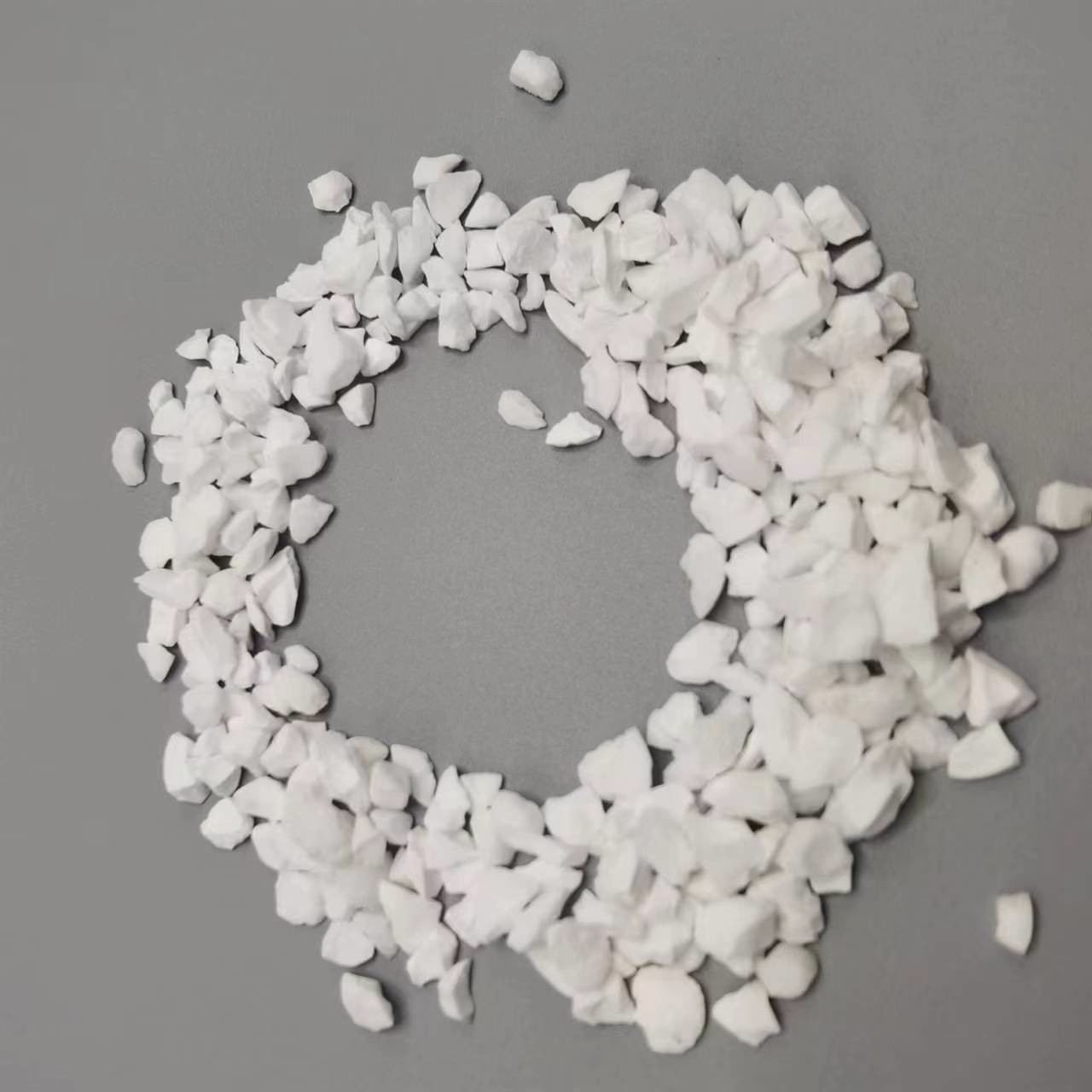

Product name: tabular alumina
specification: HY-BZGY
1, tabular corundum introduction
The tabular corundum is a recrystallized α-Al2O3 completely sintered under the ultra-high temperature condition slightly lower than the melting point of imported alumina after batching, grinding and forming. The crystals are arranged in a flat staggered arrangement, which increases the mechanical strength of the particles. The closed pores are mainly distributed in and between the crystals, with high bulk density, low apparent porosity and water absorption, which reduces the liquid consumption of the remanufactured products. The unique sodium removal process significantly reduces the content of alkaline oxides in the product, and has excellent physical properties such as high refractoriness, good thermal shock stability, low thermal shrinkage and good heat load strength. At the same time, high purity avoids the pollution of impurities to the system, and is an ideal raw material for making advanced refractory, ceramic and insulating materials.
2.product usage
As a new material, it has been applied to battery anode materials, new ceramics, solar energy industry, seals, automotive and other industries. The well-known tabular corundum ceramics are used to make abrasives. Due to the superhard properties of corundum ceramics, they can be prepared into various grinding wheels, abrasive cloth, sandpaper and various abrasives for grinding, which are widely used in the machining industry. The plate-shaped corundum material also has self-lubricating property and small friction coefficient, which is about half of the cemented carbide. Its thermal shock resistance and high elastic modulus are applied in some special places. For example, it is used to make high-power laser mirrors. Its performance is better than copper, due to low density, good rigidity, and small deformation.
4.physical and chemical criterion
| grain |
Al2O3 (％) |
Fe2O3 (％) |
Na2O (％) |
SiO2 (％) |
volume density g/cm3 |
apparent porosity (％) |
water absorption (％) |
|
| 5-8mm | standard | ≥99.2 | ≤0.1 | ≤0.4 | ≤0.1 | ≥3.5 | ≤5.0 | ≤1.5 |
| actual measurement | 99.26 | 0.06 | 0.3 | 0.08 | 3.56 | 3.8 | 1.2 | |
