| Place of Origin: | YiXing |
|---|---|
| Brand Name: | HY |
| Certification: | ISO9001 |
| Model Number: | 12# |
| Minimum Order Quantity: | 1ton |
| Price: | Negotiation |
| Packaging Details: | 25kgs PVC bags+1MT big bag |
| Delivery Time: | two weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 300 tons one month |
| Product Name: | White Adamantine Spar | Raw Material: | Industrial Alumina |
|---|---|---|---|
| Al₂O₃: | ≥99% | True Density: | ≥3.90 G/cm³ |
| PH Value: | 7.0 | Banked Density: | 1.53-1.99g/cm³ |
| Refractoriness: | 2700℃ | Mohs Hardness: | 10.0 |
| High Light: | White adamantine spar,al2o3 adamantine spar,99% industrial alumina |
||
abrasive tool abrasive material WA white adamantine spar polishing sand blast precision foundry

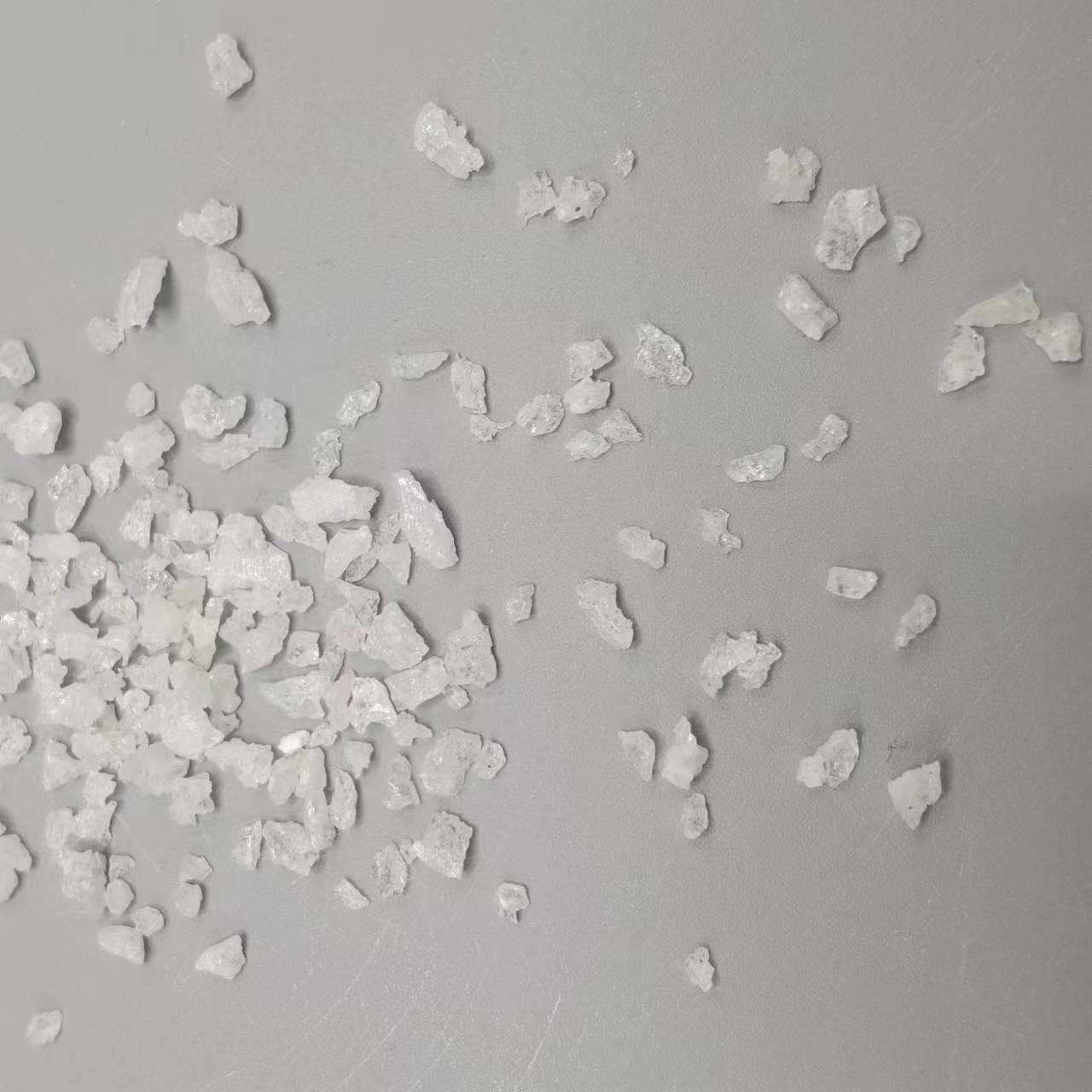

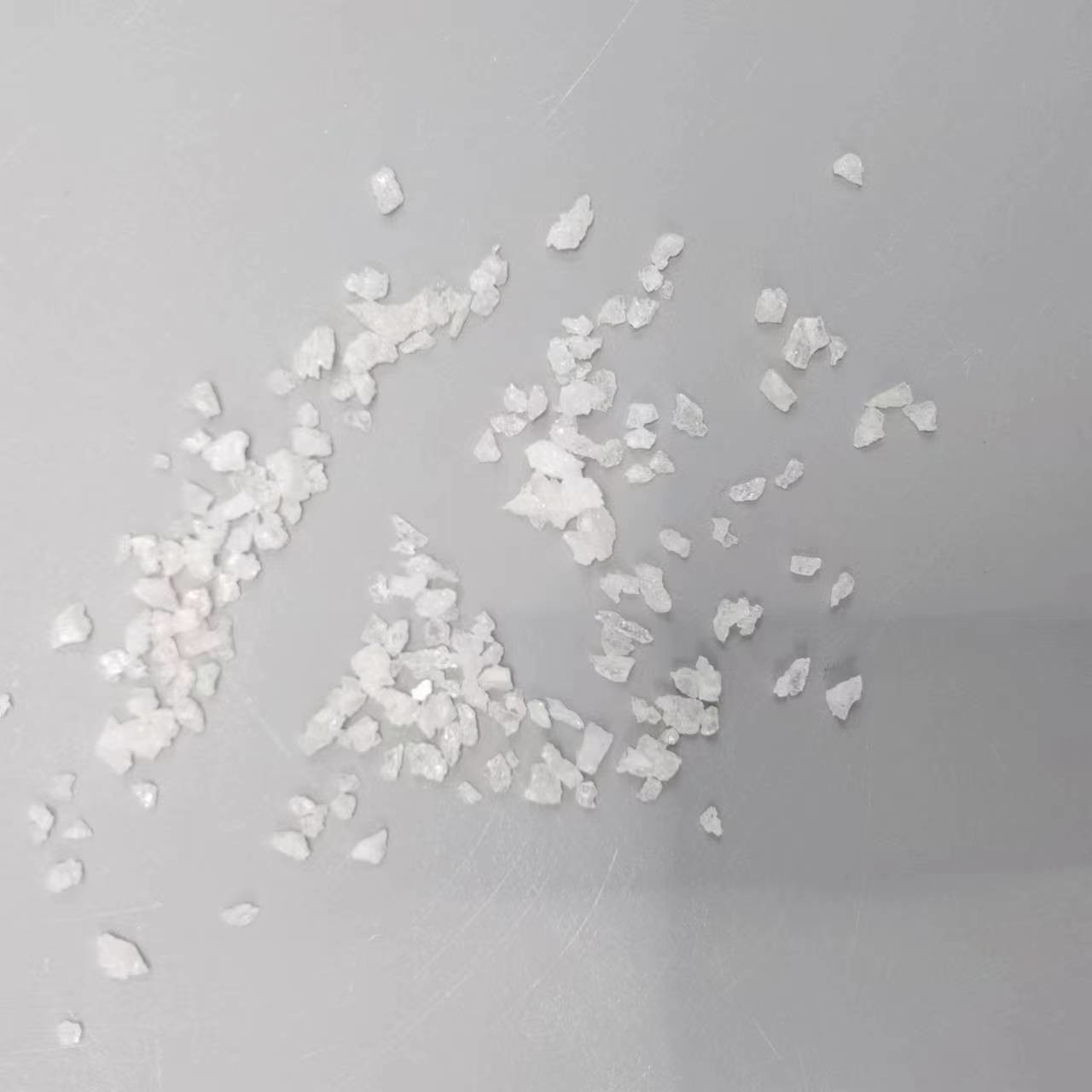

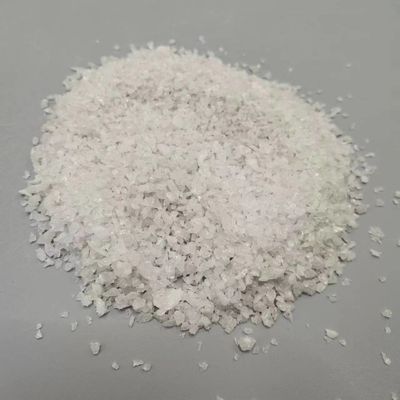

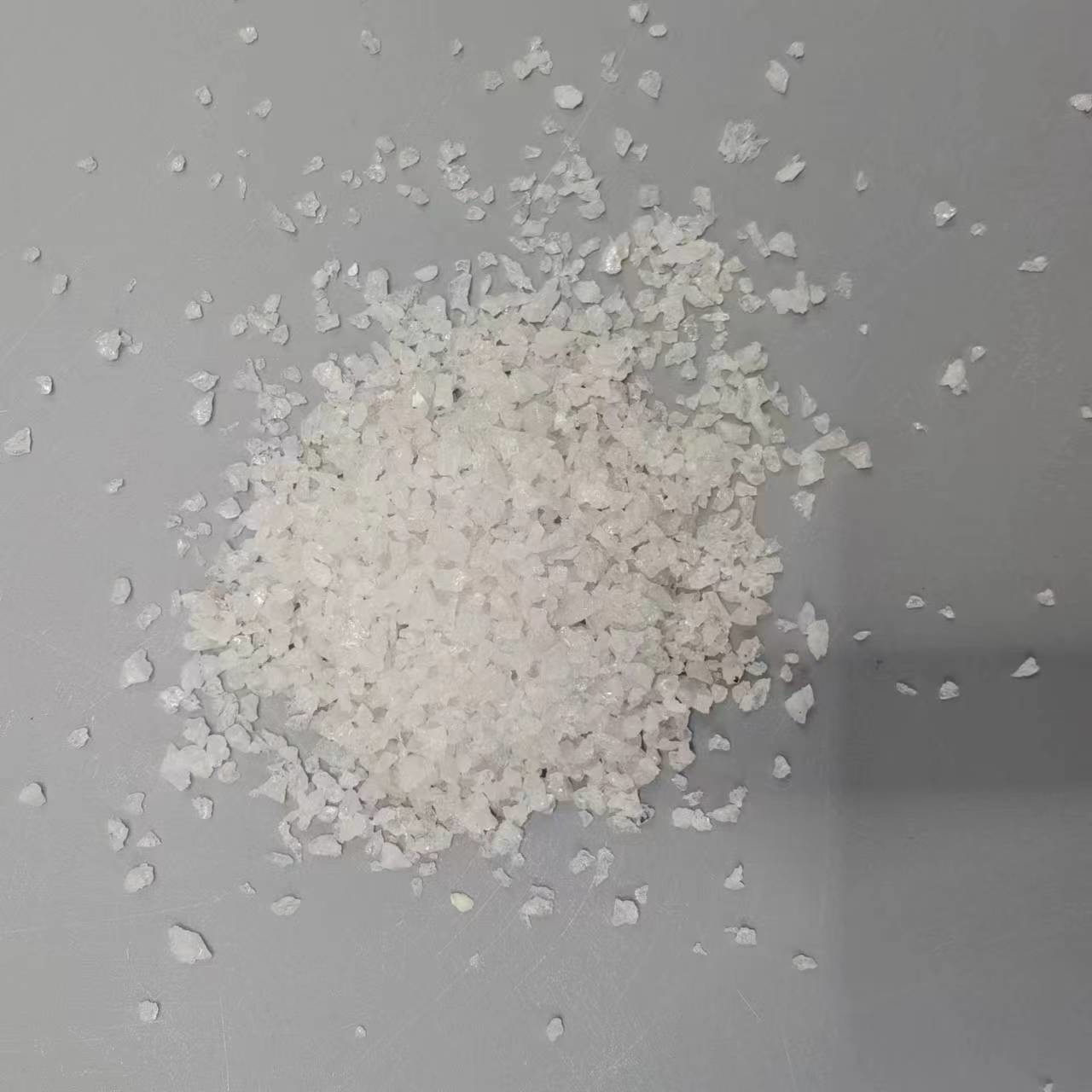

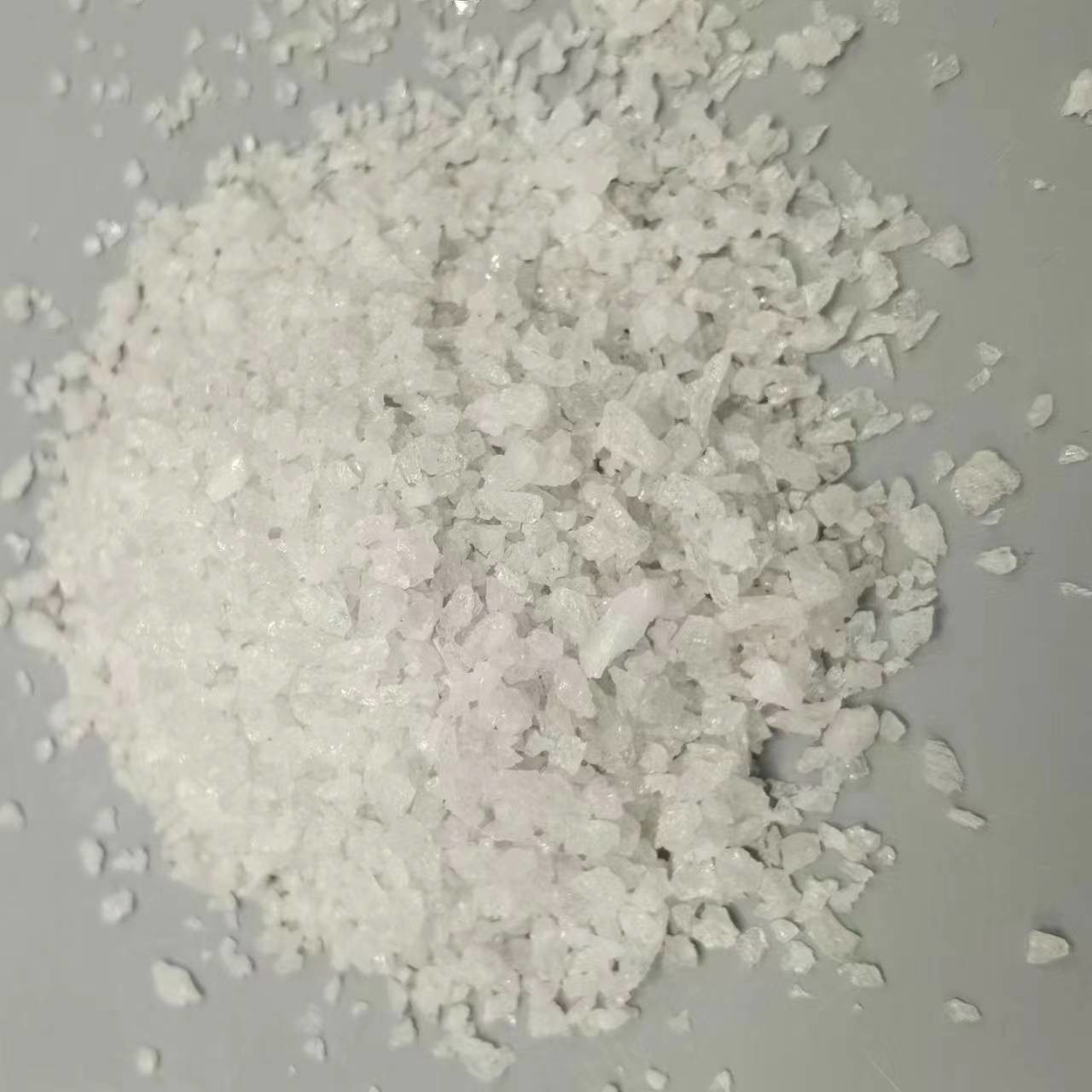

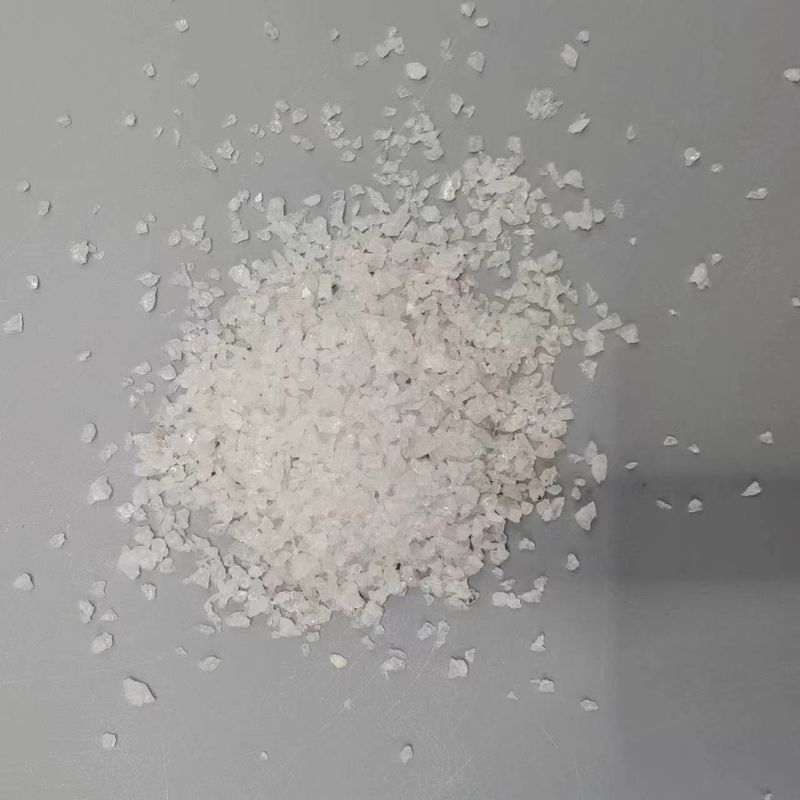

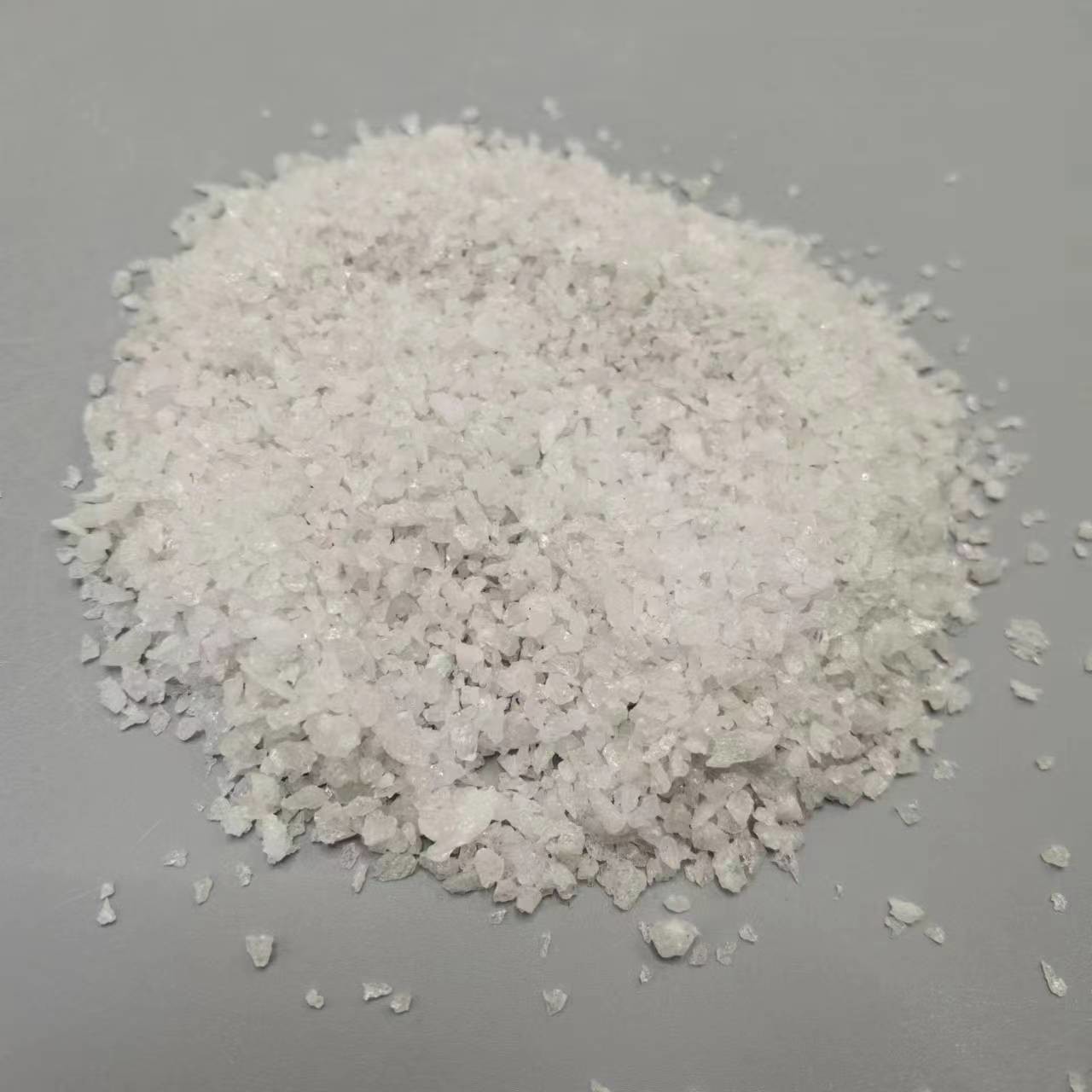

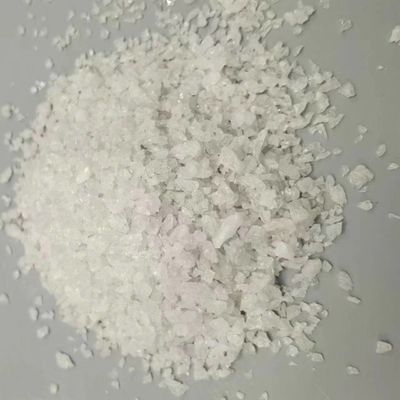

Product name:white fused alumina
specification: 12#
Product introduction:
White fused alumina is made of high quality aluminum oxide powder as raw material, refined and crystalline by electromelting, with high purity, good self-sharpness, acid and alkali corrosion resistance, high temperature resistance, and stable thermal performance. Its hardness is slightly higher than brown corundum, slightly lower toughness, high purity, good self-sharpness, strong grinding ability, small heat value, high efficiency, acid and alkali corrosion resistance, high temperature and thermal stability. Made of grinding tools, suitable for grinding high carbon steel, high speed steel and stainless steel and other fine-grained abrasive materials can also be used in precision casting and advanced refractory materials.
White corundum performance: white, harder and brittle than brown corundum, strong cutting force, good chemical stability, with good insulation.
MAIN APPLICATIONS
-Metal sandblasting cleaning and surface treatment
-Manufacture various abrasive products
-Ceramic products
-Surface treatment of glass and non-metallic materials
-Semi-conductor industry
-Hard alloy and ultra-hard abrasive tool industry
-Precision casting
-Abrasive tool processing industry and addition of abrasion-resistant materials
PACKAGING:25kgs PVC bags+1MT big bag
The shown values are typical characteristics of the material and shall not be used to prepare specifications. They are submitted
to tolerances of the production and meet the present standard of technique. We reserve our right for changes within the scope
of technical progress or internal improvement.
AVERAGE CHEMICAL COMPOSITION(TYPICAL)
| Al2O3 | Fe2O3 | Na2O | MgO | K2O | CaO | SiO2 |
| 99.50% | ≤0.05% | ≤0.26% | ≤0.01% | ≤0.02% | ≤0.04% | ≤0.1% |
Grit size composition standard GB/T 2479-2008
|
Particle size |
Most Coarse particles |
Coarse particles |
Basic grain |
Mixture grain |
Thin grain |
|||
| 100% pass the sifter number | No pass The sifter number | Not more than weight (%) |
No pass The sifter number |
Not more than weight (%) |
No pass The sifter number |
Not more than weight (%) |
Pass the sifter Number Most weight 3% |
|
| 10# | 6 | 8 | 20 | 10 | 45 | 10 12 | 70 | 14 |
| 12# | 7 | 10 | 20 | 12 | 45 | 12 14 | 70 | 16 |
| 14# | 8 | 12 | 20 | 14 | 45 | 14 16 | 70 | 18 |
| 16# | 10 | 14 | 20 | 16 | 45 | 16 18 | 70 | 20 |
| 20# | 12 | 16 | 20 | 18 | 45 | 18 20 | 70 | 25 |
| 22# | 14 | 18 | 20 | 20 | 45 | 20 25 | 65 | 30 |
| 24# | 16 | 20 | 25 | 25 | 45 | 25 30 | 65 | 35 |
| 30# | 18 | 25 | 25 | 30 | 45 | 30 35 | 65 | 40 |
| 36# | 20 | 30 | 25 | 35 | 45 | 35 40 | 65 | 45 |
| 40# | 25 | 35 | 30 | 40 | 40 | 40 45 | 65 | 50 |
| 46# | 30 | 40 | 30 | 45 | 40 | 45 50 | 65 | 60 |
| 54# | 35 | 45 | 30 | 50 | 40 | 50 60 | 65 | 70 |
| 60# | 40 | 50 | 30 | 60 | 40 | 60 70 | 65 | 80 |
| 70# | 45 | 60 | 25 | 70 | 40 | 70 80 | 65 | 100 |
| 80# | 50 | 70 | 25 | 80 | 40 | 80 100 | 65 | 120 |
| 90# | 60 | 80 | 20 | 100 | 40 | 100 120 | 65 | 140 |
| 100# | 70 | 100 | 20 | 120 | 40 | 120 140 | 65 | 200 |
| 120# | 80 | 120 | 20 | 140 | 40 | 140 170 | 65 | 230 |
| 150# | 100 | 140 | 15 | 170 200 | 40 | 170 200 230 | 65 | 325 |
| 180# | 120 | 170 | 15 | 200 230 | 40 | 200 230 270 | 65 | |
| 220# | 140 | 200 | 15 | 230 270 | 40 | 230 270 325 | 60 | |
White fused alumina product model particle size control table
| white fused alumina grit size | |||
| particle size number | particle diameter range(μm) | particle size number | particle diameter range(μm) |
| 10# | 2000 | 60# | 300-250 |
| 12# | 2000-1700 | 70# | 250-212 |
| 20# | 1400-1180 | 80# | 212-180 |
| 22# | 1180-1000 | 90# | 180-150 |
| 24# | 1000-850 | 100# | 150-125 |
| 30# | 850-710 | 120# | 125-106 |
| 36# | 600-500 | 150# | 106-75 |
| 40# | 500-425 | 180# | 90-63 |
| 46# | 425-355 | 220# | 75-53 |
| 54# | 355-300 | ||
