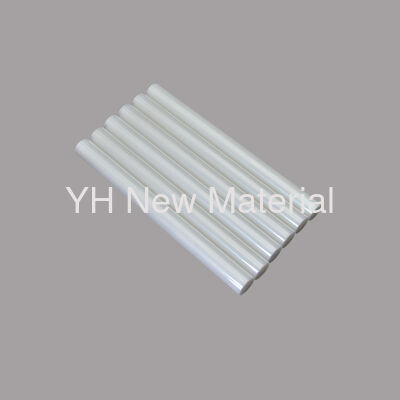

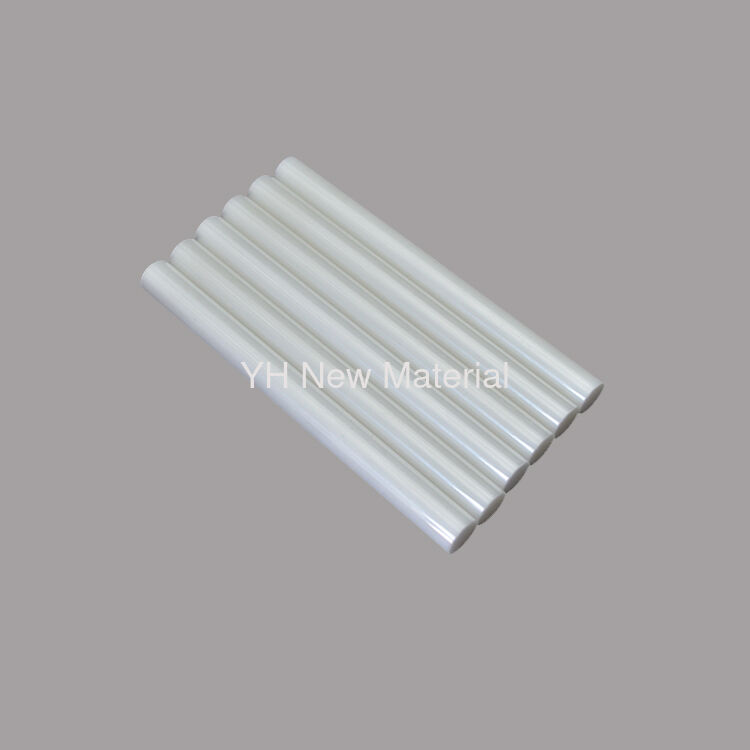

Precision Insulation Zirconia Ceramic Rod Special Shaped Zro2 Ceramic Parts Refractory Accessory

Basic Information
Place of Origin: CHINA
Brand Name: YH
Certification: ISO,Rohs
Model Number: YH
Minimum Order Quantity: 10
Price: Negotiated
Packaging Details: By carton
Delivery Time: 10-30days
Payment Terms: L/C,T/T,Western Union,D/A,D/P
Supply Ability: 10000pcs per month
Get Best Price
Chat Now
Detail Information
Inner Diameter: Customizable (for Tubes And Pipes), Typically 0.5mm To 45mm Density: 6.0 G/cm³
Outer Diameter: Customizable, Typically 1mm To 50mm Applications: High Temperature Insulation, Chemical Processing, Electronics, Medical Devices
Operating Temperature: Up To 2400°C Length: Customizable, Typically 100mm To 1000mm
Manufacturing Process: Isostatic Pressing, Extrusion, Sintering Purity: ≥ 99.9%
Shape: Rod, Tube, Pipe Thermal Conductivity: 2.5 W/m·K
Flexural Strength: ≥ 1000 MPa Material: Zirconia (Zirconium Dioxide, ZrO2)
Highlight:

Precision Insulation Zirconia Ceramic Rod

,

Special Shaped Zro2 Ceramic Parts


Product Description



Precision Insulation Zro2 Special Shaped Ceramic Parts Industrial Ceramics Refractory Accessory Zirconia Ceramic Rod



Elevate your lab milling precision with our Premium Zirconia Grinding Jar—where reliability and purity reach new heights. Crafted for researchers, engineers, and QC experts who refuse to compromise on contamination-free, high-intensity grinding, this jar guarantees the accurate results your work demands.

YSZ: The smarter choice for critical grinding tasks

Processing hard or high-purity materials risks sample contamination from jar wear, which can ruin analytical data. Stainless steel jars release metallic ions; alumina jars wear out fast. Yttria-stabilized zirconia eliminates these pain points: boasting extreme hardness and unrivaled chemical stability, it’s the only material that delivers the "true" grinding results you need for trustworthy experiments.

Precision Insulation Zirconia Ceramic Rod Special Shaped Zro2 Ceramic Parts Refractory Accessory 0

Technical Specifications
High-performance zirconia ceramic bush tubes designed for precision guiding, bearing, and insulating applications where
exceptional durability, dimensional stability, and chemical resistance are required. Ideal for replacing traditional metal
bushings in harsh operating conditions.
Material Properties
* Material: 95% Yttria-Stabilized Zirconia (YSZ)
* Density: 6.05 g/cm³
* Hardness: HV1300-1500 (HRA 88-91)
* Flexural Strength: 900-1200 MPa
* Fracture Toughness: 8-10 MPa·m¹/²
                         Application
1. Chemical Processing Equipment: Pump bushings, valve guide sleeves, agitator bearings
2. Food & Beverage: Filling equipment, conveyor systems, food processing machinery
3. Semiconductor: Wafer handling equipment, vacuum chamber components
4. Automotive Industry: Fuel systems, sensor components, special bearings
Precision Insulation Zirconia Ceramic Rod Special Shaped Zro2 Ceramic Parts Refractory Accessory 1
Basic Physical & Mechanical Properties
Zirconia Ceramic Properties
Item
Unit
Typical Values
Physical Properties
Color

Customized
Density
g/cm3
6.00
Zirconia Content
%
94.4
Gas Permeability

0
Water Absorption

0
Crystal Size
um
0.5
Mechanical Properties
Rockwell Hardness(45N)
R45N
78
Modulus of Elasticity (20°C)
Gpa
>200
Compressive Strength (20°C)
Mpa
2000
Flexural Strength (20°C)
 Mpa
800
Thermal Properties
Thermal Expansion Coefficient
 10-6/°C
9.6
Thermal Shock Resistance
T°C
250
Thermal Conductivity (20°C-400°C)
W/m.K
2.5

Precision Insulation Zirconia Ceramic Rod Special Shaped Zro2 Ceramic Parts Refractory Accessory 2

Zirconia Rod & Zirconia Tube Description


ZrO2 Ceramic Tubes and Rods have the advantages of super hardness, high wear-resisting, good corrosion resistance,
high-temperature tolerance, high strength, high mechanical strength, good chemical stability, polishing surface, and so on.

Zirconia Rod and Zirconia Tube are made of ZrO2 ceramics. Zirconia is an extremely refractory material.
It possesses excellent chemical inertness and corrosion resistance at temperatures up to 2200℃,
well above the melting point of alumina. Zirconia is stabilized in the cubic crystal structure to avoid
cracking and mechanical weakening during heating and cooling.
Precision Insulation Zirconia Ceramic Rod Special Shaped Zro2 Ceramic Parts Refractory Accessory 3
Product packaging
1:Individually packed in anti-static foam
2:Vacuum-sealed for moisture protection
3:Labeled with part number, dimensions, and material grade
4:Shock-resistant outer packaging
5:Available in bulk or custom packaging
Precision Insulation Zirconia Ceramic Rod Special Shaped Zro2 Ceramic Parts Refractory Accessory 4

Precision Insulation Zirconia Ceramic Rod Special Shaped Zro2 Ceramic Parts Refractory Accessory 5


FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
