Detail Information

Inner Diameter:	Customizable (for Tubes And Pipes), Typically 0.5mm To 45mm	Density:	6.0 G/cm³
Outer Diameter:	Customizable, Typically 1mm To 50mm	Applications:	High Temperature Insulation, Chemical Processing, Electronics, Medical Devices
Operating Temperature:	Up To 2400°C	Length:	Customizable, Typically 100mm To 1000mm
Manufacturing Process:	Isostatic Pressing, Extrusion, Sintering	Purity:	≥ 99.9%
Shape:	Rod, Tube, Pipe	Thermal Conductivity:	2.5 W/m·K
Flexural Strength:	≥ 1000 MPa	Material:	Zirconia (Zirconium Dioxide, ZrO2)
Highlight:	Zirconia Ceramic Parts Abrasion Resistance , Polished Zirconia Ceramic Shaft Rod

Product Description

Insulated High Temperature High Purity CNC Polished Zirconia Ceramic Parts Abrasion Resistance Shaft Rod

In thermal analysis techniques (e.g., TGA, DTA, DSC), the need for inert, heat-resistant sample pans and crucibles is critical to accurate measurement of thermal properties—and our Thermal-Analysis Zirconia Tube provides a reliable platform for high-temperature thermal characterization. Engineered for thermal analysts and materials scientists, it minimizes sample-container interactions, ensuring precise data on decomposition, phase transitions, and thermal stability.​

The unique advantages of yttria-stabilized zirconia (YSZ) with high thermal shock resistance​

Traditional thermal analysis pans have limitations: alumina pans react with metal oxides, platinum pans are expensive and catalyze reactions, and ceramic pans crack under rapid temperature changes. YSZ with high thermal shock resistance overcomes these flaws: its chemical inertness prevents reactions with organic/inorganic samples up to 1600°C, its thermal stability ensures no weight loss or decomposition of the pan itself, and its resistance to thermal cycling (–200°C to 1600°C) supports a wide range of thermal analysis applications.

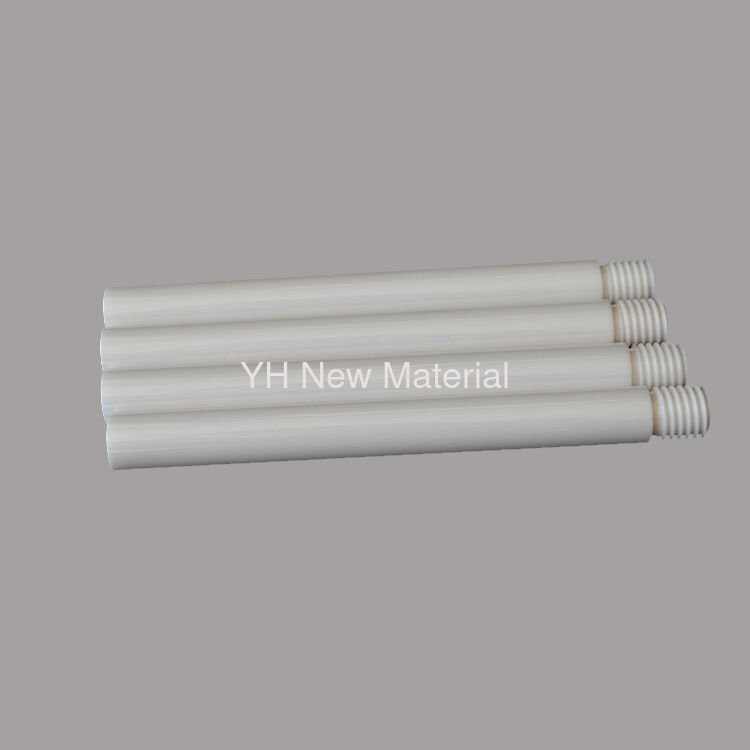

Polished Zirconia Ceramic Parts Abrasion Resistance Shaft Rod Insulated High Temperature 0

Technical Specifications

High-performance zirconia ceramic bush tubes designed for precision guiding, bearing, and insulating applications where

			exceptional durability, dimensional stability, and chemical resistance are required. Ideal for replacing traditional metal

			bushings in harsh operating conditions.
Material Properties
* Material: 95% Yttria-Stabilized Zirconia (YSZ)* Density: 6.05 g/cm³
* Hardness: HV1300-1500 (HRA 88-91)
* Flexural Strength: 900-1200 MPa
* Fracture Toughness: 8-10 MPa·m¹/²

Application

1.Chemical Processing Equipment: Pump bushings, valve guide sleeves, agitator bearings

2. Food & Beverage: Filling equipment, conveyor systems, food processing machinery

3. Semiconductor: Wafer handling equipment, vacuum chamber components4. Automotive Industry: Fuel systems, sensor components, special bearings

Basic Physical & Mechanical Properties

			Zirconia Ceramic Properties

			Item

			Unit

			Typical Values

			Physical Properties

			Color

			Customized

			Density

			g/cm3

			6.00

			Zirconia Content

			%

			94.4

			Gas Permeability

			0

			Water Absorption

			0

			Crystal Size

			um

			0.5

			Mechanical Properties

			Rockwell Hardness(45N)

			R45N

			78

			Modulus of Elasticity (20°C)

			Gpa

			>200

			Compressive Strength (20°C)

			Mpa

			2000

			Flexural Strength (20°C)

			 Mpa

			800

			Thermal Properties

			Thermal Expansion Coefficient

			 10-6/°C

			9.6

			Thermal Shock Resistance

			T°C

			250

			Thermal Conductivity (20°C-400°C)

			W/m.K

			2.5

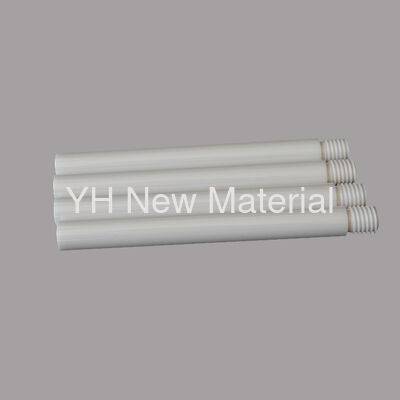

Polished Zirconia Ceramic Parts Abrasion Resistance Shaft Rod Insulated High Temperature 2

Zirconia Rod & Zirconia Tube Description

ZrO2 Ceramic Tubes and Rods have the advantages of super hardness, high wear-resisting, good corrosion resistance,

high-temperature tolerance, high strength, high mechanical strength, good chemical stability, polishing surface, and so on.
Zirconia Rod and Zirconia Tube are made of ZrO2 ceramics. Zirconia is an extremely refractory material.
It possesses excellent chemical inertness and corrosion resistance at temperatures up to 2200℃,
well above the melting point of alumina. Zirconia is stabilized in the cubic crystal structure to avoid
cracking and mechanical weakening during heating and cooling.

Product packaging

1: Individually packed in anti-static foam

2: Vacuum-sealed for moisture protection

3: Labeled with part number, dimensions, and material grade

4: Shock-resistant outer packaging

5: Available in bulk or custom packaging

Polished Zirconia Ceramic Parts Abrasion Resistance Shaft Rod Insulated High Temperature 5

FAQ

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO，Rohs
Model Number:	YH

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	By carton
Delivery Time:	10-30days
Payment Terms:	L/C,T/T,Western Union,D/A,D/P
Supply Ability:	10000pcs per month
