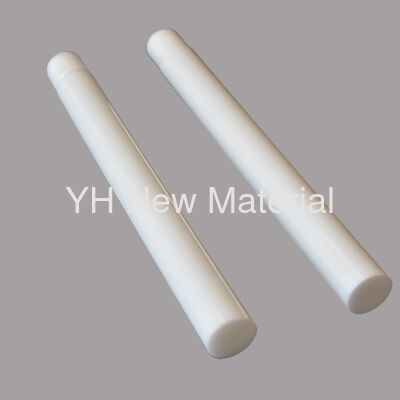

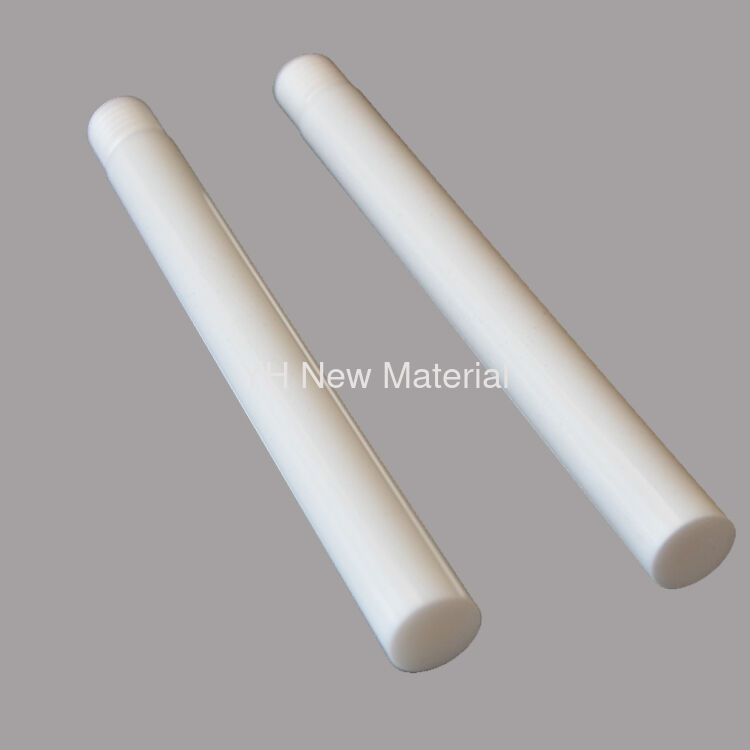

Zirconia Ceramic Shaft Rod High Precision 1mm 1.5mm 2mm 3mm 4mm 5mm Diameter

Basic Information

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO，Rohs
Model Number:	YH

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	By carton
Delivery Time:	10-30days
Payment Terms:	L/C,T/T,Western Union,D/A,D/P
Supply Ability:	10000pcs per month

Get Best Price

Chat Now

Inner Diameter:

Customizable (for Tubes And Pipes), Typically 0.5mm To 45mm

Density:

6.0 G/cm³

Outer Diameter:

Customizable, Typically 1mm To 50mm

Applications:

High Temperature Insulation, Chemical Processing, Electronics, Medical Devices

Operating Temperature:

Up To 2400°C

Length:

Customizable, Typically 100mm To 1000mm

Manufacturing Process:

Isostatic Pressing, Extrusion, Sintering

Purity:

≥ 99.9%

Shape:

Rod, Tube, Pipe

Thermal Conductivity:

2.5 W/m·K

Flexural Strength:

≥ 1000 MPa

Material:

Zirconia (Zirconium Dioxide, ZrO2)

Highlight:

Ceramic Shaft Rod High Precision

5mm Diameter Zirconia Ceramic Shaft

1mm 1.5mm 2mm 3mm 4mm 5mm Diameter Custom High Precision Zirconia Toughened Alumina Zta Ceramic Shaft Rod

In the field of laboratory grinding, the quest for contamination-free, high-precision results drives the demand for superior equipment materials—and our Premium Zirconia Grinding Jar leads the way by setting new standards of reliability and purity. Engineered specifically for the needs of researchers, process engineers, and quality control specialists, it enables high-intensity milling without introducing impurities, ensuring the validity of subsequent analytical tests.

The unique advantages of yttria-stabilized zirconia (YSZ)

For hard or high-purity material processing, jar material degradation poses a major challenge: worn particles mix with samples, and component leaching skews data accuracy. Stainless steel jars are prone to metallic ion contamination, whereas alumina jars have limited wear resistance. YSZ addresses both issues effectively: its extraordinary hardness minimizes wear, and its robust chemical stability prevents any interaction with samples—making it the perfect selection for achieving authentic, unaltered grinding results.

Zirconia Ceramic Shaft Rod High Precision 1mm 1.5mm 2mm 3mm 4mm 5mm Diameter 0

Technical Specifications

High-performance zirconia ceramic bush tubes designed for precision guiding, bearing, and insulating applications where

			exceptional durability, dimensional stability, and chemical resistance are required. Ideal for replacing traditional metal

			bushings in harsh operating conditions.
Material Properties
* Material: 95% Yttria-Stabilized Zirconia (YSZ)* Density: 6.05 g/cm³
* Hardness: HV1300-1500 (HRA 88-91)
* Flexural Strength: 900-1200 MPa
* Fracture Toughness: 8-10 MPa·m¹/²

Application

1. Chemical Processing Equipment: Pump bushings, valve guide sleeves, agitator bearings

2. Food & Beverage: Filling equipment, conveyor systems, food processing machinery

3. Semiconductor: Wafer handling equipment, vacuum chamber components4. Automotive Industry: Fuel systems, sensor components, special bearings

Basic Physical & Mechanical Properties

			Zirconia Ceramic Properties

			Item

			Unit

			Typical Values

			Physical Properties

			Color

			Customized

			Density

			g/cm3

			6.00

			Zirconia Content

			%

			94.4

			Gas Permeability

			0

			Water Absorption

			0

			Crystal Size

			um

			0.5

			Mechanical Properties

			Rockwell Hardness(45N)

			R45N

			78

			Modulus of Elasticity (20°C)

			Gpa

			>200

			Compressive Strength (20°C)

			Mpa

			2000

			Flexural Strength (20°C)

			 Mpa

			800

			Thermal Properties

			Thermal Expansion Coefficient

			 10-6/°C

			9.6

			Thermal Shock Resistance

			T°C

			250

			Thermal Conductivity (20°C-400°C)

			W/m.K

			2.5

Zirconia Rod & Zirconia Tube Description

ZrO2 Ceramic Tubes and Rods have the advantages of super hardness, high wear-resisting, good corrosion resistance,

high-temperature tolerance, high strength, high mechanical strength, good chemical stability, polishing surface, and so on.Zirconia Rod and Zirconia Tube are made of ZrO2 ceramics. Zirconia is an extremely refractory material.
It possesses excellent chemical inertness and corrosion resistance at temperatures up to 2200℃,
well above the melting point of alumina. Zirconia is stabilized in the cubic crystal structure to avoid
cracking and mechanical weakening during heating and cooling.


Product packaging

1: Individually packed in anti-static foam

2: Vacuum-sealed for moisture protection

3: Labeled with part number, dimensions, and material grade

4: Shock-resistant outer packaging

5: Available in bulk or custom packaging

Zirconia Ceramic Shaft Rod High Precision 1mm 1.5mm 2mm 3mm 4mm 5mm Diameter 5

Zirconia Ceramic Shaft Rod High Precision 1mm 1.5mm 2mm 3mm 4mm 5mm Diameter 6

FAQ

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
