| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YH |
| Certification: | ISO |
| Model Number: | YH -Z |
| Minimum Order Quantity: | 10 |
| Price: | Negotiated |
| Packaging Details: | By wooden case |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 5000pcs per month |
| Tensile Strength: | 200 MPa | Applications: | Industrial Ceramic |
|---|---|---|---|
| Type: | Ceramic Crucible | Electrical Resistivity: | 10¹⁴ To 10¹⁵ Ω·cm |
| Dielectric Constant: | 9.8 To 10.2 | Low Dielectric Loss: | 0.0002 |
| Thermal Conductivity: | 20 To 30 W/m·K | Dimensional Tolerance: | ±0.001 Mm |
| Application: | Industrial Ceramic | Compressive Strength: | Up To 3000 MPa |
| Size: | Customized | Melting Point: | 2040°C |
| Method: | Lsostatic Presure | Temperature Resistance: | Up To 1450°C |

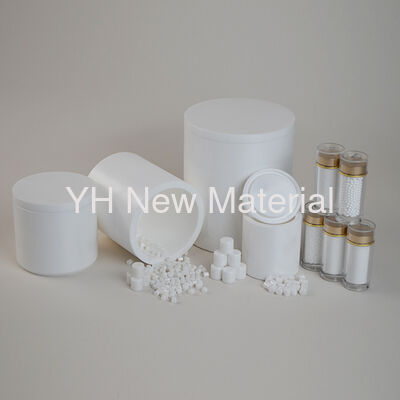

| Highlight: | Yttrium Stabilized Zirconia Grinding Jar,Zirconia Grinding Jar High Strength |
||
|
|
Technical Specifications
* Material: Yttria-Stabilized Zirconia (Y₂O₃-ZrO₂)
* Density: ≈6.0 g/cm³
* Vickers Hardness: >1200 HV
* Max. Operating Temperature: 1000 °C
* Sealing: Silicone O-ring (standard), PTFE gasket available upon request
* Available Sizes: 50mL, 100mL, 250mL, 500mL, 1L * Recommended Grinding Media: Zirconia grinding balls (same material) for optimal performance and minimal wear.
|
