Detail Information

Tensile Strength:	200 MPa	Applications:	Industrial Ceramic
Type:	Ceramic Crucible	Electrical Resistivity:	10¹⁴ To 10¹⁵ Ω·cm
Dielectric Constant:	9.8 To 10.2	Low Dielectric Loss:	0.0002
Thermal Conductivity:	20 To 30 W/m·K	Dimensional Tolerance:	±0.001 Mm
Application:	Industrial Ceramic	Compressive Strength:	Up To 3000 MPa
Size:	Customized	Melting Point:	2040°C
Method:	Lsostatic Presure	Temperature Resistance:	Up To 1450°C
Highlight:	Industrial Zirconium Oxide Grinding Jar , Zirconia Ceramic Parts Corrosion Resistance

Product Description

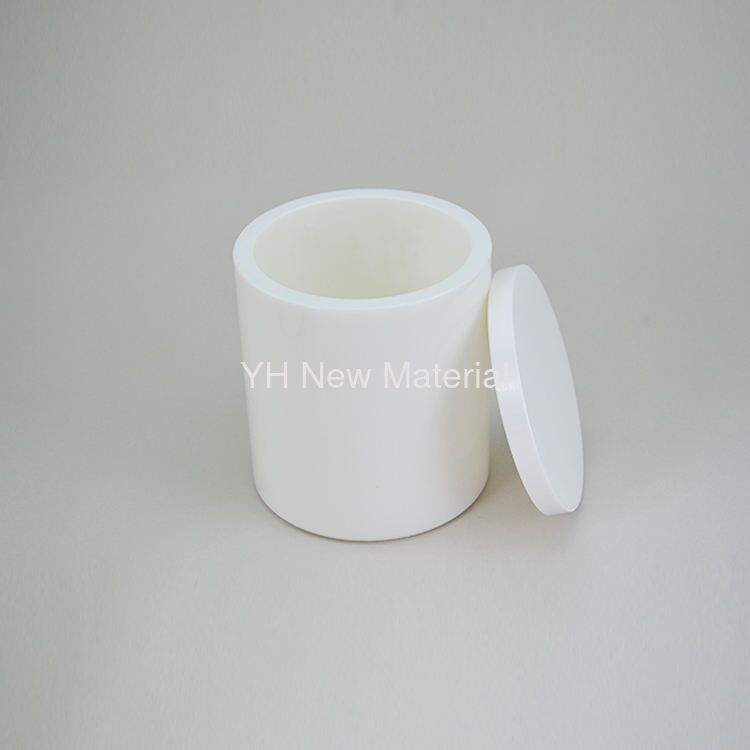

Industrial Use Zirconium Oxide Zirconia ceramic 1 Litre Grinding Jar

with High Wear and Corrosion Resistance

The Professional-Grade Solution for Critical Sample Preparation

Our Premium Zirconia Grinding Jar sets a new standard for reliability and purity in laboratory milling.

Designed for researchers,engineers, and QC specialists who demand contamination-free,

high-intensity grinding for precise results.

Why Zirconia (YSZ) is the Superior Choice

When processing hard or high-purity materials, jar material wear can contaminate samples and skew

analytical data. Stainless steel introduces metallic ions, while alumina wears relatively quickly.

Yttria-Stabilized Zirconia solves these problems: it offers extreme hardness, outstanding chemical stability,

and is the ideal choice for achieving "true" grinding results.

Industrial Zirconium Oxide Grinding Jar 1 Litre Zirconia Ceramic Parts Corrosion Resistance 0

Technical Specifications

* Material: Yttria-Stabilized Zirconia (Y₂O₃-ZrO₂)* Density: ≈6.0 g/cm³
* Vickers Hardness: >1200 HV
* Max. Operating Temperature: 1000 °C
* Sealing: Silicone O-ring (standard), PTFE gasket available upon request

			* Available Sizes: 50mL, 100mL, 250mL, 500mL, 1L
* Recommended Grinding Media: Zirconia grinding balls (same material) for optimal performance and minimal wear.

Applications

* Geology & mineral sample preparation

* Nanomilling of ceramics, glass, and pigments

* Battery material R&D (e.g., cathode/anode powders like NMC, LFP)

* Fine grinding of metal alloys

* Mixing of polymer composites


Parameters of Zirconia Mill Jar

Specifications (ml)	External Diameter (mm)	Inner Diameter (mm)	Height (mm)
50ml	55	38	38
100ml	65	50	50
250ml	92	74	74
500ml	100	84	84
1000ml	128	108	108
1500ml	132	112	112
2000ml	158	134	134
3000ml	158	138	225
Remarks:Size deviation within ±2mm. We offer tailored solutions in accordance with customer designs and requirements.

Industrial Zirconium Oxide Grinding Jar 1 Litre Zirconia Ceramic Parts Corrosion Resistance 1

Features:

High cost-effective, low wear and long lifetime

High specific gravity, high efficiency

Highly wear resistant to acid and solvents

Highly polished, smooth, easy to clean, low abrasion to the equipment

High mechanical strength, good toughness, impact resistance, no broken beads

Mainly used for lab planetary ball mill machines

Zirconia Grinding Jar Packaging Options:
Single Unit Pack: ardboard box with foam,Suitable for samples and small orders;

Bulk Pack: * Sturdy box with foam dividers,For regular procurement needs;

Custom Pack: For special requirements and large purchases

Industrial Zirconium Oxide Grinding Jar 1 Litre Zirconia Ceramic Parts Corrosion Resistance 4

FAQ

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO
Model Number:	YH -Z

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	By wooden case
Delivery Time:	15-20days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000pcs per month

Industrial Zirconium Oxide Grinding Jar 1 Litre Zirconia Ceramic Parts Corrosion Resistance
