| Place of Origin: | China Yixing |
|---|---|
| Brand Name: | HY |
| Certification: | CE |
| Model Number: | HY-TCG-01 |
| Minimum Order Quantity: | 10 pieces |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| AL2O3: | ≥ 99% | Product Name: | Alumina Ceramics Tube |
|---|---|---|---|
| Color: | White | Density: | 3.85g/cm³ |
| Sintering Temperature: | 1690℃ | Hardness （HV): | 1700 |
| Size: | Customization | ||
| High Light: | Alumina Ceramic Parts 99%,AL2O3 Alumina Ceramic Parts,alumina ceramics tube Bearing |
||
alumina ceramics tube bearing various machine shaft accessories high using frequency

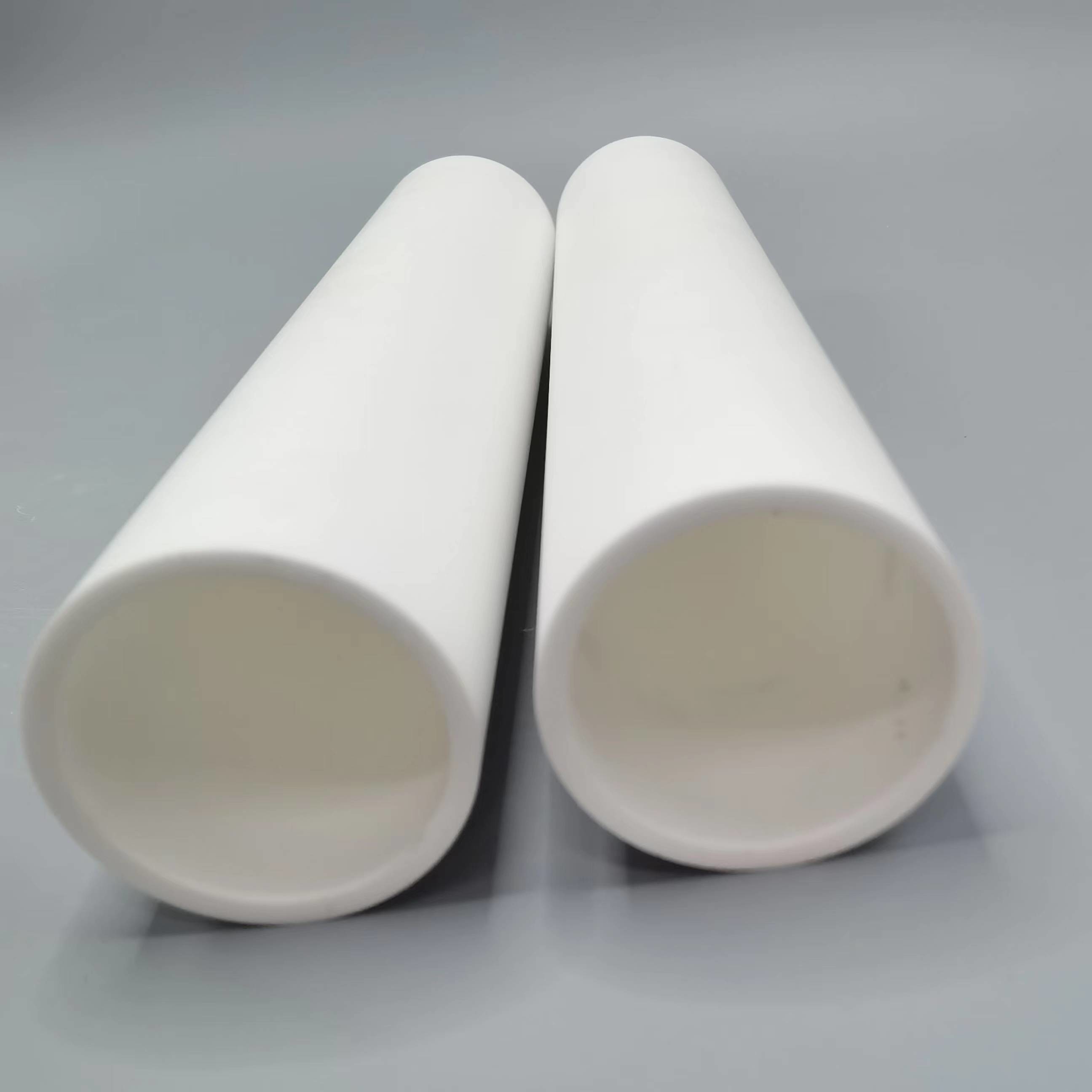

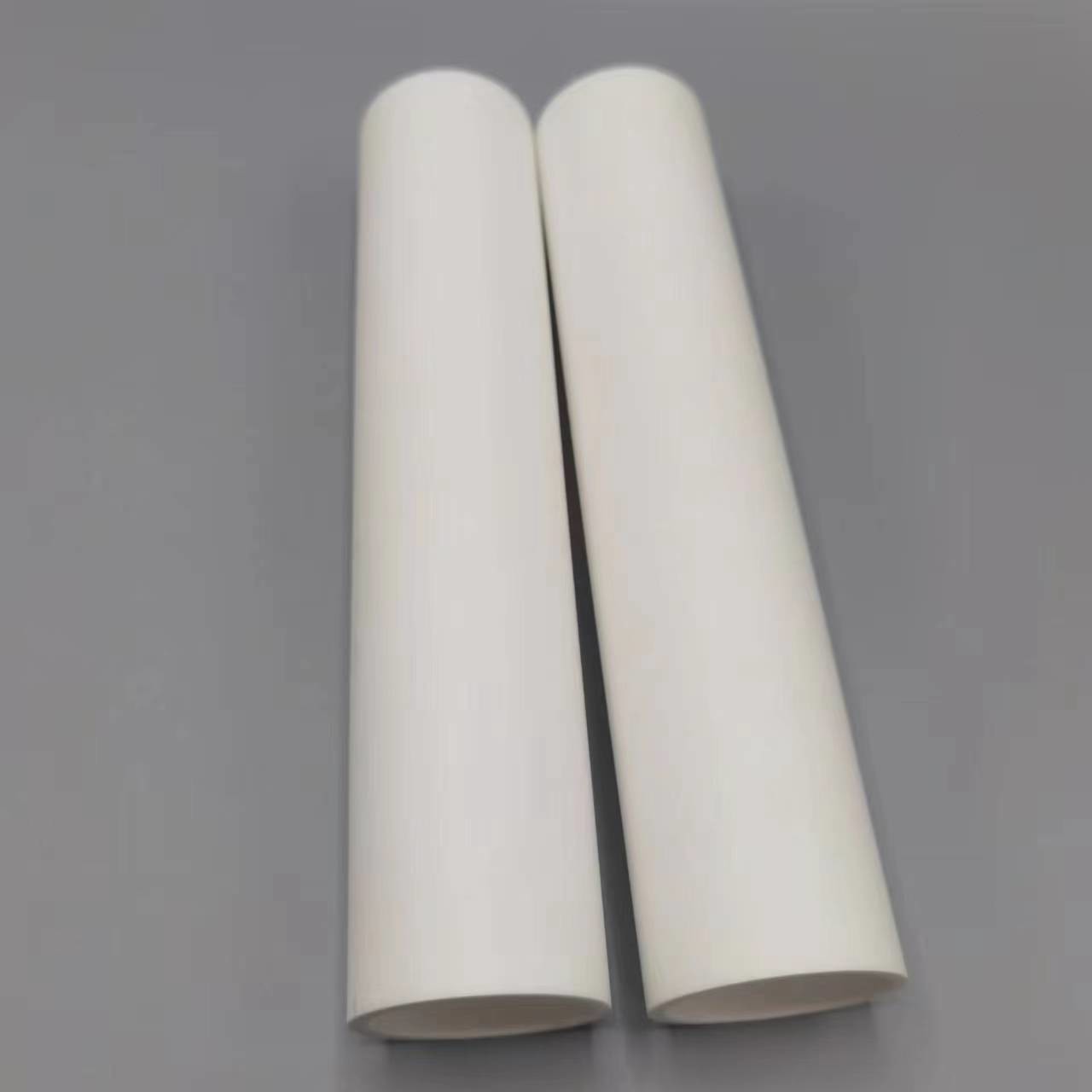

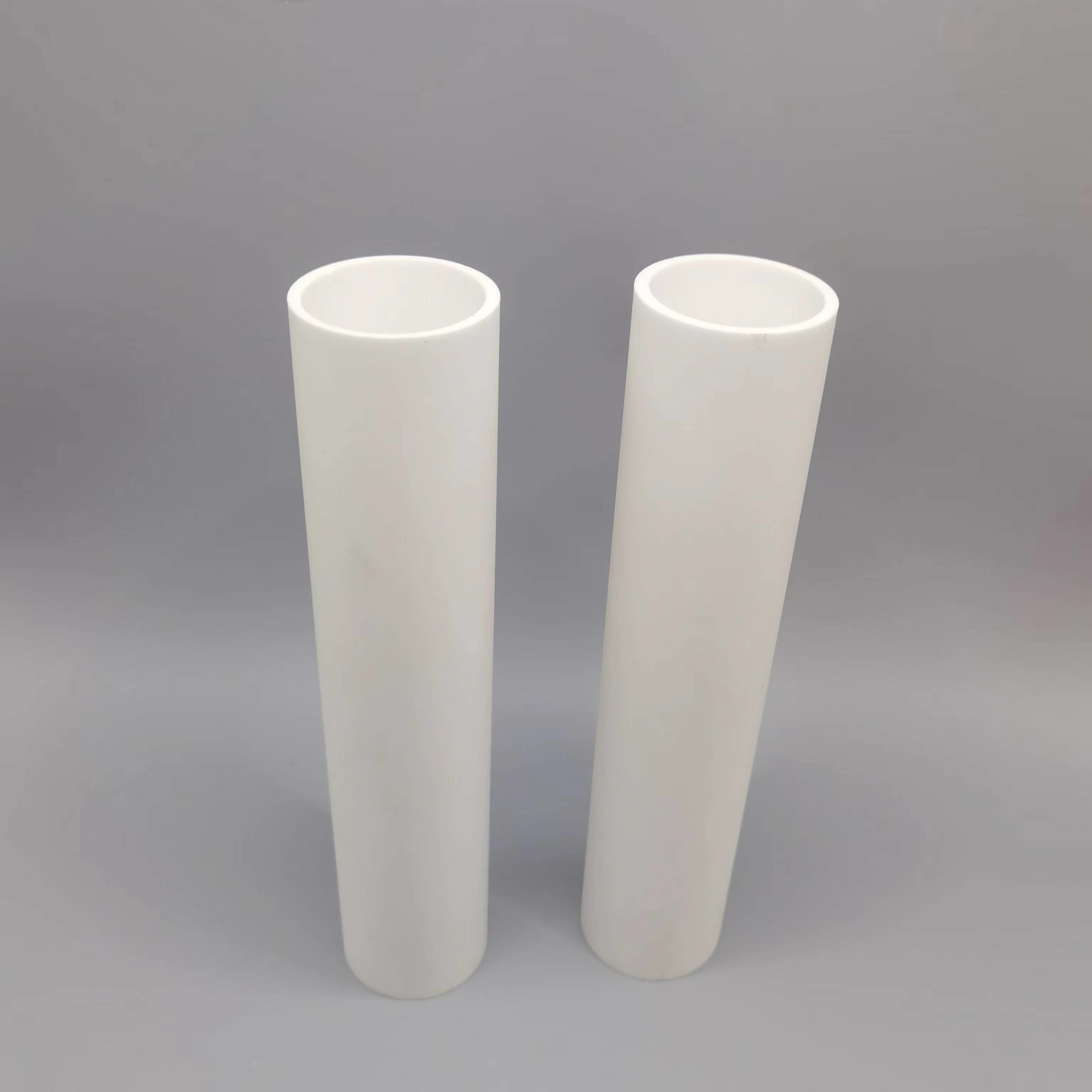

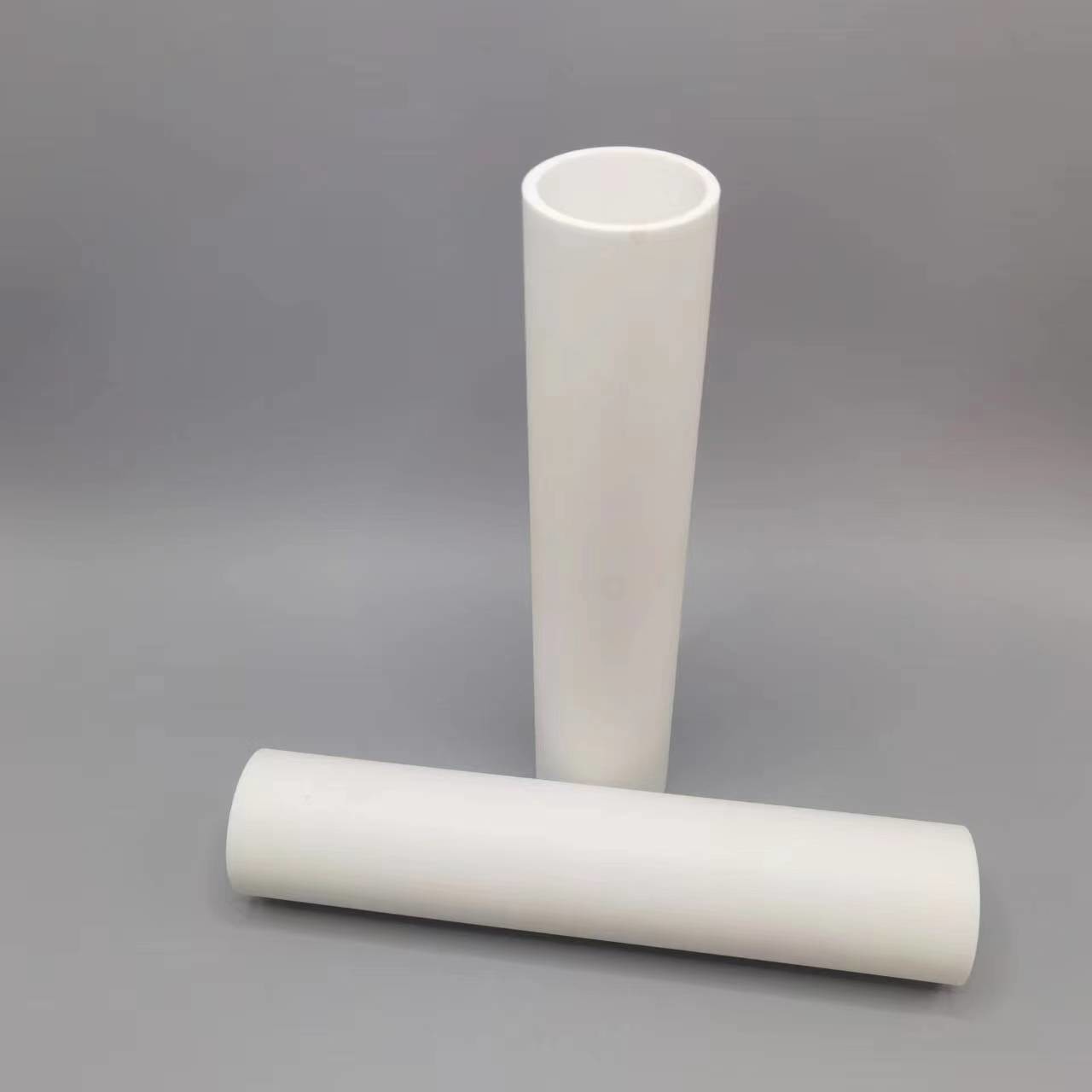

product name:alumina ceramic tube
The properties of alumina ceramic tube :
1.High hardness
It is determined that the Rockwell hardness of alumina is HRA80-90, and the hardness is only second to diamond, far exceeding the wear resistance of wear-resistant steel and stainless steel.
2, excellent wear resistance
The wear resistance of alumina ceramic material is 266 times as much as that of manganese steel and 171.5 times as much as that of high chromium cast iron. According to our customer tracking survey for more than ten years, it can extend the service life of the equipment by at least ten times under the same working conditions.
3, light weight
The density of alumina ceramic material is 3.7 ~ 3.95g / cm °, which is only half of steel, and can greatly reduce the equipment load.
4 , Wide range of application
Alumina ceramics are widely used in machinery, optical fiber, cutting tools, medical, food, chemical, aerospace and other fields.
products index:
| Ceramic characteristic table | |||
| name | 99% AL2O3 | 95% AL2O3 | |
| physical propertyessential component | essential component | AL2O3≥99% | AL2O3≥95% |
| Density(g/cm3) | 3.85 | 3.6 | |
| water absorption% | 0 | 0 | |
| sintering temperature | 1690 | 1670 | |
| material characters | Hardness(HV) | 1700 | 1600 |
| break off strength | >6500 | >2900 | |
| compressive strength | 30000 | 25000 | |
| thermal response | maximum service tempera- ture | 1500 | 1400 |
| thermal expansion coefficient | 8 | 7.8 | |
| 10-6/℃ | |||
| 0-1000℃ | |||
| Heat shock resistance T(℃) | 200 | 220 | |
| thermal conductivity W/m.k | 31 | 22 | |
| electrical specification | volume resistivity Ω.cm | >1012 | >1012 |
| Insulation destructive power KT/m | 18 | 16 | |
| dielectric constant 1MHZ(E) | 9.2-10.5 | 9.0-10 | |
Workshop warehouse products:
