Detail Information

Material:	Alumina Ceramic	Type:	Ceramic Disc
Application:	Industrial Ceramic,Refractory	Color:	White,Yellow ,brown
Size:	Customers' Requests,Size Customized,0.5mm-95mm,According To Your Drawing,OEM	Name:	Alumina Ceramic Disc For Tap
Shape:	Round Shape	Usage:	Industrial Ceramic, Tap Bathroom Ceramic
Using Life:	More Than 300000 To 500000
Highlight:	Al2o3 Ceramic Disc Industrial Use , Wear Resistance Al2o3 Ceramic Disc

Product Description

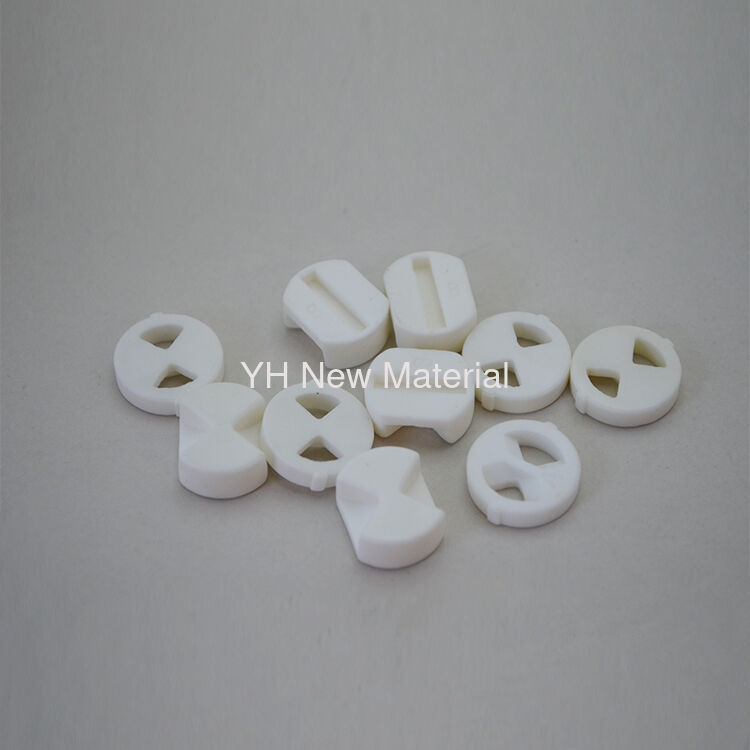

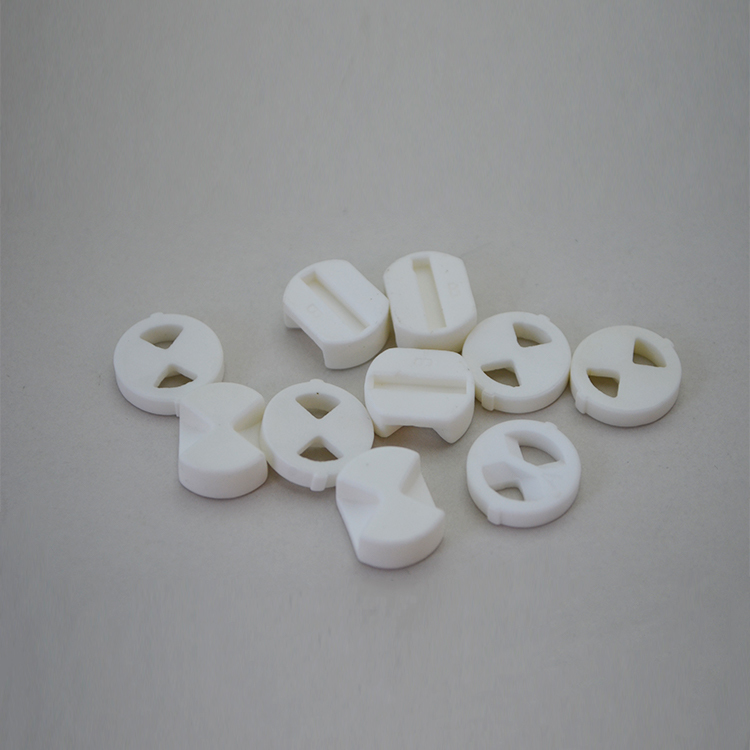

Alumina Ceramic Disc Faucet Valve for Industrial Use Wear Resistance Water Tap with Custom Cutting Service

Name: Wear Resistance Al2o3 Ceramic Disc Industrial Use With Custom Cutting Service
Brand: Hunan Yuanhong New Materials Co.,Ltd
SKU: Ceramic disc
Price: 0.02 USD
Availability: InStock

Perfect sealing, flawless performance—our Alumina Al₂O₃ Ceramic Disc is the ultimate sealing solution for valve cartridges!

Crafted from 98% dense alumina ceramics, it features ultra-smooth surfaces and precise dimensional accuracy (15mm size, fully compatible with 1/4-turn brass cartridges).

The porous 98% aluminium oxide structure enhances sealing efficiency, effectively preventing leakage and ensuring stable fluid control.

Suitable for both high-pressure and low-pressure scenarios, it maintains outstanding sealing performance even after thousands of operating cycles.

Replace your old, leak-prone discs with our ceramic solution—experience zero leakage, consistent flow and superior reliability for your valves!

CERAMIC DISC

1.Specification: OD: 11.5mm---32mm. ceramic discs Features: 2.The frictional times is 300, 000 to 500, 000. 3.Corrosion-resistant. 4.Density :3.6~3.7g/cubic centimeter. 5.Satisfy various technical request. 6.OEM ODM Service.

Application

Alumina ceramic discs properties and application:

Alumina ceramic discs properties and application:Properties of the ceramic disc cartrige:

1) resistance to chemical attack and gas-tight

2) pressure resistant and insensitive to attack by chemical cleaning agents

3) major lime deposits forming at high water temperatures will be removed by the ceramic material.

4) Non-corrosive, high abrasion resistant

Other Application of the ceramic disc cartridge:

1) for titrators

2) for refrigerant valves

3) for analyzers and medical apparatus, medical applications

4) for gas and solids proportion-ing equipment.

5) for espresso and coffee machines

6) ceramic seal and regulator discs for diverters

7) for single-handle mixers

8) for two-handle faucets

9) for sanitary technology

10) for special-purpose valves .

Performance For Industrial Ceramic
Item		Unit	95Al2O3	96 Al2O3	99 Al2O3
Physical Characteristics	Heat resistance	℃	1500	1550	1800
	Bulk density	g/cm3	3.6	3.6	3.9
	Water absorption	%	0	0	0
Mechanical Characteristics	Flexural strength	Mpa	320	340	360
	Hardness vickers	Gpa	12.2	13.5	15.6
	Elastic modulus	Gpa	280	320	370
	Poisson’s ratio		0.22	0.23	0.23
Thermal Characteristics	Linear expansion coefficient	(20-500℃) 10-6/℃	7.1	7.2	8
	Thermal conductivity	w/(m.k)	16	24	32
	Specific Heat	10-3J/(kgK)	0.78	0.78	0.9
Electrical Characteristics	Dielectric constant (1MHZ)	-	9	9.4	9.9
	Dielectric loss angle	*10-4	15	5	1
	Dielectric strength	*10⁶V/m	12	15	15

Wear Resistance Al2o3 Ceramic Disc Industrial Use With Custom Cutting Service 2

Main advantage of the ceramic disc cartridge:

95%Al2O3 ceramic discs,mailly applicated to temperature modulatory valve,conversion valve,modulatory valve of surf and massagebathtub,

LPG valves,Good hermetical, compressive resistance,flexual resistance,using longevity will be above 500 thousand times.

Wear Resistance Al2o3 Ceramic Disc Industrial Use With Custom Cutting Service 3

Wear Resistance Al2o3 Ceramic Disc Industrial Use With Custom Cutting Service 4

FAQ

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	China
Brand Name:	YH
Certification:	ISO,Rohs
Model Number:	Ceramic disc

Minimum Order Quantity:	100000
Price:	0.02
Packaging Details:	plastic bubble case one by one,put into carton box.
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	within 20days
