Detail Information

Inner Diameter:	Customizable (for Tubes And Pipes), Typically 0.5mm To 45mm	Density:	6.0 G/cm³
Outer Diameter:	Customizable, Typically 1mm To 50mm	Applications:	High Temperature Insulation, Chemical Processing, Electronics, Medical Devices
Operating Temperature:	Up To 2400°C	Length:	Customizable, Typically 100mm To 1000mm
Manufacturing Process:	Isostatic Pressing, Extrusion, Sintering	Purity:	≥ 99.9%
Shape:	Rod, Tube, Pipe	Thermal Conductivity:	2.5 W/m·K
Flexural Strength:	≥ 1000 MPa	Material:	Zirconia (Zirconium Dioxide, ZrO2)
Highlight:	Y Tzp Zirconia Ceramic Rod Stick , Zirconia Ceramic Rod Stick

Product Description

Yuan Hong Excellent Insulation Y-tzp Zirconia Ceramic Rod Stick

Our Premium Yttria-Stabilized Zirconia (YSZ) Grinding Jar redefines the benchmarks for reliability and purity in lab-scale milling applications.

Tailored for discerning researchers, engineers, and quality control professionals, it delivers contamination-free, high-intensity grinding to ensure accurate, reproducible experimental outcomes.

Why is YSZ the material of choice for superior grinding?

When milling hard or high-purity substances, the wear of jar materials is a critical concern—it can introduce unwanted impurities and distort analytical results. Traditional options fall short: stainless steel jars leach metallic ions that contaminate samples, while alumina jars suffer from rapid wear and tear. In contrast, yttria-stabilized zirconia combines exceptional hardness with excellent chemical inertness, making it the optimal solution for obtaining genuine, unadulterated grinding results.

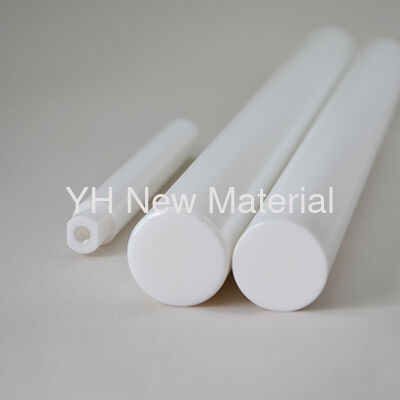

Y Tzp Zirconia Ceramic Rod Stick Excellent Insulation Zirconia Ceramic components 0

Technical Specifications

High-performance zirconia ceramic bush tubes designed for precision guiding, bearing, and insulating applications where

			exceptional durability, dimensional stability, and chemical resistance are required. Ideal for replacing traditional metal

			bushings in harsh operating conditions.
Material Properties
* Material: 95% Yttria-Stabilized Zirconia (YSZ)* Density: 6.05 g/cm³
* Hardness: HV1300-1500 (HRA 88-91)
* Flexural Strength: 900-1200 MPa
* Fracture Toughness: 8-10 MPa·m¹/²

Application

1. Chemical Processing Equipment: Pump bushings, valve guide sleeves, agitator bearings

2. Food & Beverage: Filling equipment, conveyor systems, food processing machinery

3. Semiconductor: Wafer handling equipment, vacuum chamber components4. Automotive Industry: Fuel systems, sensor components, special bearings

Basic Physical & Mechanical Properties

			Zirconia Ceramic Properties

			Item

			Unit

			Typical Values

			Physical Properties

			Color

			Customized

			Density

			g/cm3

			6.00

			Zirconia Content

			%

			94.4

			Gas Permeability

			0

			Water Absorption

			0

			Crystal Size

			um

			0.5

			Mechanical Properties

			Rockwell Hardness(45N)

			R45N

			78

			Modulus of Elasticity (20°C)

			Gpa

			>200

			Compressive Strength (20°C)

			Mpa

			2000

			Flexural Strength (20°C)

			 Mpa

			800

			Thermal Properties

			Thermal Expansion Coefficient

			 10-6/°C

			9.6

			Thermal Shock Resistance

			T°C

			250

			Thermal Conductivity (20°C-400°C)

			W/m.K

			2.5

Y Tzp Zirconia Ceramic Rod Stick Excellent Insulation Zirconia Ceramic components 2

Zirconia Rod & Zirconia Tube Description

ZrO2 Ceramic Tubes and Rods have the advantages of super hardness, high wear-resisting, good corrosion resistance,

high-temperature tolerance, high strength, high mechanical strength, good chemical stability, polishing surface, and so on.
Zirconia Rod and Zirconia Tube are made of ZrO2 ceramics. Zirconia is an extremely refractory material.
It possesses excellent chemical inertness and corrosion resistance at temperatures up to 2200℃,
well above the melting point of alumina. Zirconia is stabilized in the cubic crystal structure to avoid
cracking and mechanical weakening during heating and cooling.

Product packaging

1: Individually packed in anti-static foam

2: Vacuum-sealed for moisture protection

3: Labeled with part number, dimensions, and material grade

4: Shock-resistant outer packaging

5: Available in bulk or custom packaging

Y Tzp Zirconia Ceramic Rod Stick Excellent Insulation Zirconia Ceramic components 5

FAQ

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO，Rohs
Model Number:	YH

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	By carton
Delivery Time:	10-30days
Payment Terms:	L/C,T/T,Western Union,D/A,D/P
Supply Ability:	10000pcs per month
