Name: Isostatic Pressure Al2O3 Alumina Ceramic Crucible For Melting Furnace Custom Capacity
Brand: Hunan Yuanhong New Materials Co.,Ltd
SKU: crucible
Availability: InStock

Detail Information

Alumina Purity:	99.5%	Productname:	Alumina Ceramic Crucible
Color:	White	Chemicalresistance:	Excellent Resistance To Acids And Alkalis
Material:	Alumina (Aluminum Oxide, Al2O3)	Applicationindustries:	Metallurgy, Laboratory, Electronics, Ceramics
Sintering Temperature:	1800℃	Size:	Various Sizes Available (e.g., 50ml, 100ml, 200ml)
Manufacturingprocess:	Sintering	Usage:	Melting, Calcining, And Chemical Analysis
Maximumoperatingtemperature:	1700°C	Shape:	Cylindrical
Highlight:	Alumina Ceramic Crucible For Melting Furnace , Custom Capacity Alumina Ceramic Crucible

Product Description

Isostatic Pressure AI2O3 Alumina Ceramic Melting Furnace Crucibles Different Types for Industrial Ceramic Applications

Alumin crucibles is a high-temperature ceramic container sintered with α-Al2O3 as the main raw material.The Al2O3 content >95% is usually called corundum crucible,and the high -purity can reach 99%.It has high thermal conductivity,samll coefficient of the thermal expansion coefficient,and good thermal shock resistance,high density,high mechanical strength,and not easy to deform.It is fully applied in sample burning,ashification,melting analysis,thermogravimetric(TAG) testing,metallurgy,ceramics,electronics and other fields.

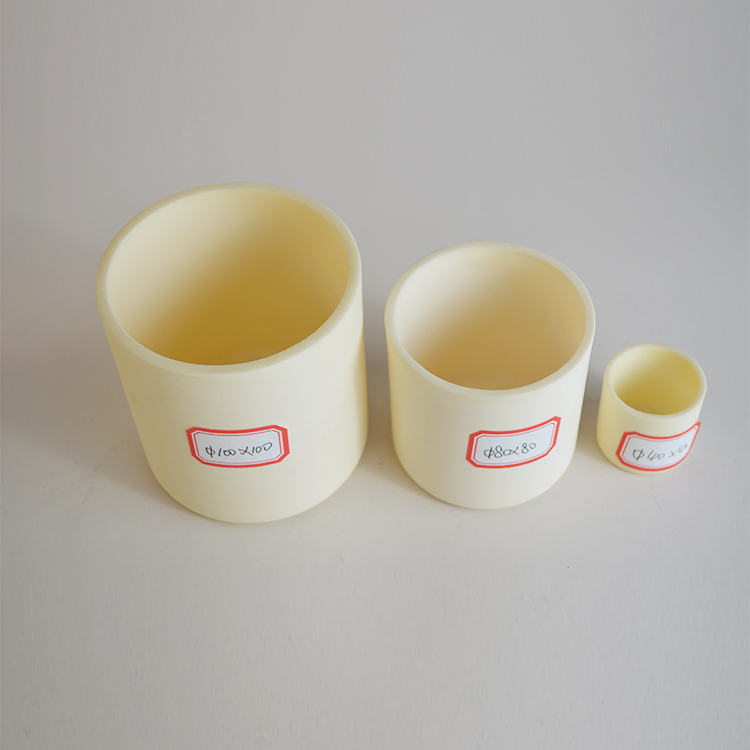

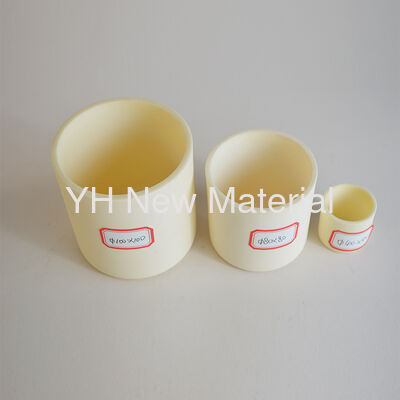

Isostatic Pressure Al2O3 Alumina Ceramic Crucible For Melting Furnace Custom Capacity 0

Alumina Ceramic crucible
Alumina (Al₂O₃) ceramic crucible represent advanced engineering components manufactured from high-purity aluminum oxide. With

			exceptional hardness, thermal stability, chemical resistance, and electrical insulation properties, these precision components

			serve critical functions across semiconductor, medical, industrial, and high-tech applications where traditional materials fail to

			perform.

Application

Isostatic Pressure Al2O3 Alumina Ceramic Crucible For Melting Furnace Custom Capacity 1

Specifications

Product name	alumina ceramic crucible
Material	AL2O3
Purity	95%99%99.7%99.9%
Color	white,ivory yellow
Shape	Arc/Square/Rectangle/Cylinder/Boat
Capacity	3-800ml or custom
Density	3.98g/cm3
Max. Working Temperature	1800℃
	Powder metallurgy, petrochemical, machinery and equipment, new energy, etc

Alumina Ceramic Crucible Basic size:

Type	Upper Diameter(mm)	Height(mm)	Bottom Diameter(mm)
5ml	27	22	15
5ml	20	16	10
8ml	22	29	16
10ml	31	29	19
15ml	33	29	20
20ml	38	34	21
25ml	40	40	22
30ml	47	42	25

Type	Upper Diameter(mm)	Height(mm)	Bottom Diameter(mm)
40ml	48	42	21
50ml	53	47	31
100ml	64	60	35
150ml	74	63	39
200ml	78	70	42
300ml	92	83	47
500ml	92	122	75
950ml	102	160	60
1000ml	126	145	73
2000ml	145	155	95

Feature Advantage

Physical Character of the alumina ceramic crucible
Item	Unit	99Al2O3
Bulk density	g/cm3	3.9
Water absorption	%	0
Flexural strength	Mpa	360
Hardness Vickers	Gpa	15.6
Elastic modulus	Gpa	370
Poisson’s ratio	-	0.23
Linear expansion coefficient	(20-5000°C) 10-6/0°C	8
Thermal conductivity	w/(m·k)	32
Specific Heat	×10-3J/(kg·K)	9
Dielectric constant (1MHZ)	-	9.9
Sinterring Temperature	℃	1800
Dielectric strength	*10-6V/M	15

Advantages of alumina crucible compared with other crucible:

1. Excellent high temperature performance: alumina crucible can be used at high temperatures,

has a high melting point and chemical stability, can withstand temperature conditions.

2. Good corrosion resistance: alumina crucible has good corrosion resistance to most acids,

alkali, salt and other chemical substances, which can ensure the accuracy and safety of the experiment.

3. High strength and good mechanical properties: alumina crucible has high mechanical strength and hardness,

can withstand greater pressure and vibration, not easy to break or deformation.

4. Good thermal conductivity: the alumina crucible has high thermal conductivity and can transfer heat quickly,

which is conducive to the experiment.

5. Long service life: alumina crucible has high hardness, is not easy to wear, can be used for a long time,

reduce the cost of the experiment.

Frequently Asked Questions

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Certification:	ISO9001,CE,Rohs
Model Number:	crucible

Minimum Order Quantity:	100
Price:	negotiated
Packaging Details:	By carton and wooden case,Pallets
Delivery Time:	30days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000pcs per month
