Detail Information

Applications:	Electrical Insulators, Cutting Tools, Wear Parts, Biomedical Implants	Dielectric Loss:	0.0002
Flexural Strength:	300 To 400 MPa	Color:	White To Off-white
Temperature Resistance:	Up To 1600°C	Manufacturing Method:	Dry Pressing Or Isostatic Pressing
Surface Finish:	Polished	Maximum Use Temperature:	1600°C
Tensile Strength:	200 MPa	Density:	3.8 To 3.95 G/cm³
Highlight:	Circular Alumina Ceramic Gasket , Ceramic Gasket High Temperature Resistant

Product Description

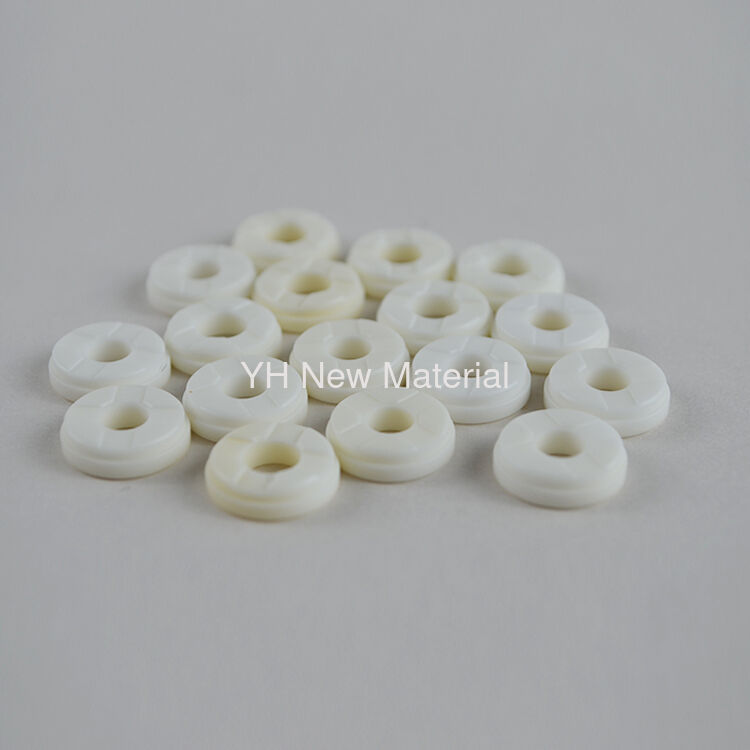

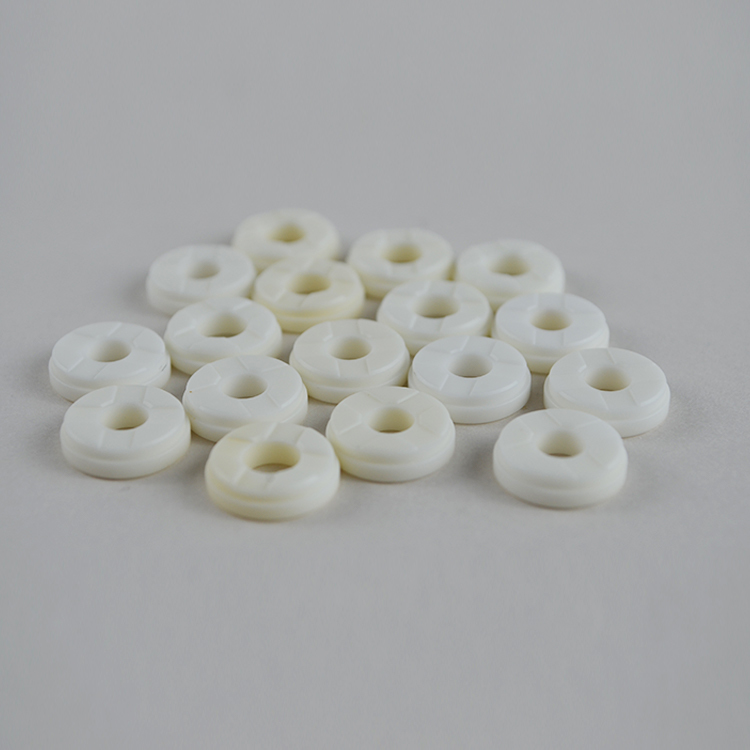

High Temperature Resistant Circular Alumina Ceramic Gasket

The "Invisible Shield" for Stable Operation of Electronic Devices! Alumina Insulator Ceramic Tubes Are Here!

Who understands the stability anxiety of electronic components under high temperature and high pressure?

This high-purity alumina insulator ceramic tube fully delivers "peace of mind"!

✅ Exceptional High-Temp Resistance: Stable operation from -40℃ to 1600℃, withstands continuous high-heat working conditions without deformation or cracking.

✅ Superior Electrical Insulation: Crafted from high-purity alumina (95%/99%/99.5% options), ensuring excellent insulation performance to prevent electric leakage and protect heating elements.

✅ Robust Wear & Corrosion Resistance: Mohs hardness Grade 9, resistant to abrasion and chemical erosion, extending the service life of your electric heating equipment by 3x

Full Application Scenarios: Semiconductor equipment, power electronics, medical instruments, industrial sensors... It’s competent wherever insulation protection is needed!

Avoid pitfalls in electronic component selection—choose Alumina Insulator Ceramic Tubes! DM us for customized solutions, and enjoy surprise discounts on bulk purchases～

Application

Mechanical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Colour

			--

			White

			Yellow

			Yellow

			Density

			g/cm³

			3.7

			3.85

			3.9

			Hardness

			GPa

			13.7

			15.2

			15.7

			Compressive Strength

			MPa

			2000

			2160

			2350

			Flexural Strength

			MPa

			280

			310

			350

			Fracture Toughness

			MPa・m1/2

			3~4

			3~4

			4.5

			Modulus of Elasticity

			GPa

			320

			360

			370

			Poissons Ratio

			--

			0.23

			0.23

			0.23

Thermal Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Maximum Use Temperature

			℃(No load)

			1650

			1650

			1650

			Thermal Conductivity @ 20°C

			W/(m・K)

			24

			29

			32

			Thermal Expansion a at 20–400°C

			1 x 10-6/°C

			7~8

			7~8

			7~8

			Specific Heat

			J/(kg・K)

			780

			790

			780

			Thermal Shock Resistance

			℃(Put in water)

			200

			200

			200

Electrical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Dielectric Constant

			1MHz

			9.4

			9.9

			9.9

			Dielectric Strength

			V/m

			15 x 10 6

			15 x 10 6

			15 x 10 6

			Dielectric Loss

			1MHz

			4 x 10 -4

			4 x 10 -4

			4 x 10 -4

			Volume Resistivity @ 25°C

			Ω・cm

			>10 14

			>10 14

			>10 14

			Volume Resistivity @ 500°C

			Ω・cm

			>10 8

			>10 8

			>10 10

Various Types of Alumina Ceramic Sealing Ring

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic* Relatively low density;

* Extremely high operating temperature;

* Very high hardness and compressive strength;

* Excellent electrical insulation properties;

* Corrosion and wear resistance;

* Biologically inert, food compatibility.
Alumina Ceramic PropertiesThe following only lists the performance parameters of the three most common aluminum oxide ceramics.
Normally, alumina ceramics are composed of these types

Packing



FAQ
Q1. Do you provide product samples?
Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods?
We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time?
Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer?
We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramic

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO，CE，ROHS
Model Number:	Yh

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	by caront or wooden case
Delivery Time:	10-30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000pcs per month
