Detail Information

Dielectric Strength:	15 KV/mm	Chemical Composition:	Al2O3 (Aluminum Oxide)
Color:	White Or Yellow	Electrical Insulation:	Excellent
Operating Temperature:	Up To 1700°C	Low Thermal Expansion:	Excellent
Biocompatibility:	Yes	Alumina Content:	95-99.7%
Flexural Strength:	300 To 400 MPa	Thermal Conductivity:	20 To 30 W/m·K
Machinability:	Difficult	Maximum Use Temperature:	1700c
Transparency:	Opaque	Surface Finish:	Polished
Highlight:	Industrial Glazed Alumina Ceramic Parts , Al2O3 Ceramic Laser Reflector

Product Description

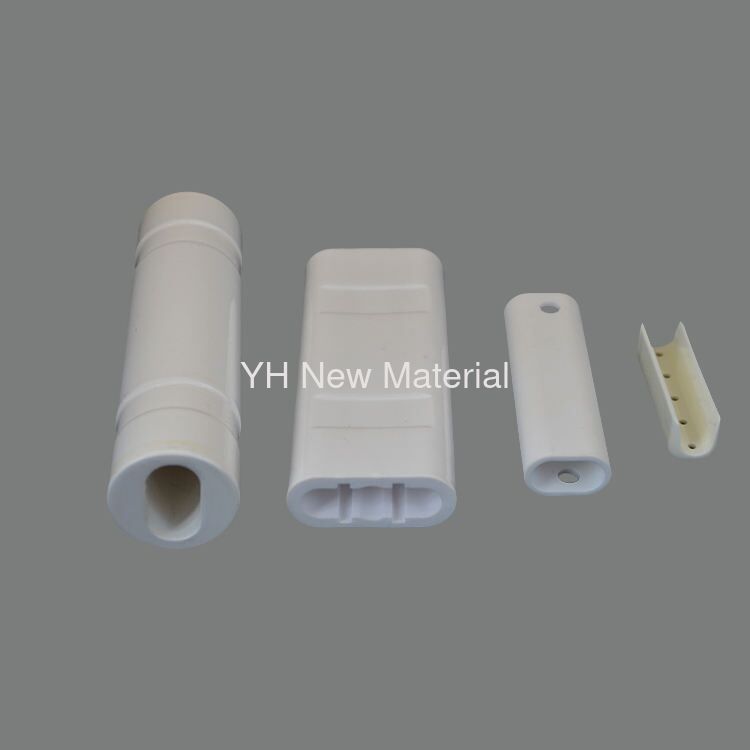

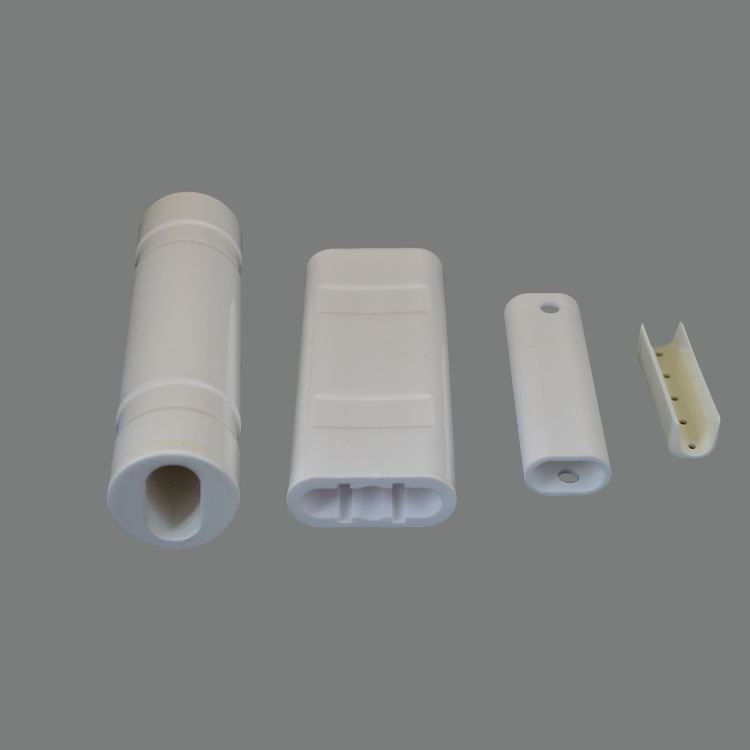

Glazed Alumina Al2O3 Ceramic Laser Reflector Industrial Ceramic Parts Cutting Bending Industrial Ceramic

Maximizing laser power, precision, and longevity starts with the right core components.

Our Al₂O₃ Ceramic Laser Reflectors, Laser Heads, Alumina Laser Cavities, and Ceramic Diffuser Reflectors are engineered for high-power laser systems—delivering unmatched optical performance and thermal stability.

Core Advantages of Our Al₂O₃ Ceramic Laser Components
✅ Ultra-High Reflectivity: Up to 99.999% reflectivity at 1064 nm (near-infrared band), minimizing light loss and maximizing laser energy utilization.
✅ Extreme Thermal Stability: Withstands continuous high-temperature operation (up to 1600°C) and rapid thermal cycles.
✅ Superior Laser Damage Threshold: Dense Al₂O₃ ceramic structure resists laser ablation, ensuring longer lifespan (5x more durable than traditional glass components) in high-power laser systems.
✅ Micron-Level Precision: Ultra-smooth surface (Ra < 0.01 μm) and tight dimensional tolerance (±0.001 mm) guarantee consistent optical performance and easy integration into laser heads/cavities.
✅ Chemical & Environmental Stability: Corrosion-resistant and oxidation-free, maintaining reliable performance in harsh industrial environments (cutting, welding, marking) and laboratory conditions.

Glazed Alumina Ceramic Parts Industrial Al2O3 Ceramic Laser Reflector Oxidation Free 0

Application

Mechanical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Colour

			--

			White

			Yellow

			Yellow

			Density

			g/cm³

			3.7

			3.85

			3.9

			Hardness

			GPa

			13.7

			15.2

			15.7

			Compressive Strength

			MPa

			2000

			2160

			2350

			Flexural Strength

			MPa

			280

			310

			350

			Fracture Toughness

			MPa・m1/2

			3~4

			3~4

			4.5

			Modulus of Elasticity

			GPa

			320

			360

			370

			Poissons Ratio

			--

			0.23

			0.23

			0.23

Thermal Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Maximum Use Temperature

			℃(No load)

			1650

			1650

			1650

			Thermal Conductivity @ 20°C

			W/(m・K)

			24

			29

			32

			Thermal Expansion a at 20–400°C

			1 x 10-6/°C

			7~8

			7~8

			7~8

			Specific Heat

			J/(kg・K)

			780

			790

			780

			Thermal Shock Resistance

			℃(Put in water)

			200

			200

			200

Electrical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Dielectric Constant

			1MHz

			9.4

			9.9

			9.9

			Dielectric Strength

			V/m

			15 x 10 6

			15 x 10 6

			15 x 10 6

			Dielectric Loss

			1MHz

			4 x 10 -4

			4 x 10 -4

			4 x 10 -4

			Volume Resistivity @ 25°C

			Ω・cm

			>10 14

			>10 14

			>10 14

			Volume Resistivity @ 500°C

			Ω・cm

			>10 8

			>10 8

			>10 10

Various Types of Alumina Ceramic Part

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic* Relatively low density;

* Extremely high operating temperature;

* Very high hardness and compressive strength;

* Excellent electrical insulation properties;

* Corrosion and wear resistance;

* Biologically inert, food compatibility.
Alumina Ceramic PropertiesThe following only lists the performance parameters of the three most common aluminum oxide ceramics. Normally, alumina ceramics

are composed of these types

Glazed Alumina Ceramic Parts Industrial Al2O3 Ceramic Laser Reflector Oxidation Free 4

FAQ

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO,CE
Model Number:	YH

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	by caront or wooden case
Delivery Time:	10-30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000pcs per month

Glazed Alumina Ceramic Parts Industrial Al2O3 Ceramic Laser Reflector Oxidation Free

Industrial Glazed Alumina Ceramic Parts

Al2O3 Ceramic Laser Reflector

Glazed Alumina Al2O3 Ceramic Laser Reflector Industrial Ceramic Parts Cutting Bending Industrial Ceramic

Features of alumina ceramic

Alumina Ceramic Properties

alumina ceramic machining,

alumina ceramic components,

alumina ceramic products

Alumina Ceramic Disk Wear Resistance High Purity 98% Alumina Tap Ceramic Disc

High Polished 98% Alumina Ceramic Disc For Kitchen Faucet Cartridges 11.5mm-32mm

High Strength Alumina Ceramic Rod Plunger Piston Tube High Heat Resistance OEM

CNC Machining Alumina Ceramic Parts Sintered Wear Resistant Positioning Block

Machining Alumina Ceramic Parts Heat Resistance Alumina Ceramic Screws Bolts And Nuts

Electric Alumina Ceramic Positioning Block CNC Machining Sintered Wear Resistant Mechanical Ceramic Parts

Abrasion Resistant Al2o3 Ceramic Laser Reflector Alumina Laser Cavity Diffuser OEM

Wear Resistance Al2o3 Ceramic Disc Industrial Use With Custom Cutting Service

Properties	Unit	95%Al2O3	99%Al2O3	99.5%Al2O3
Colour	--	White	Yellow	Yellow
Density	g/cm³	3.7	3.85	3.9
Hardness	GPa	13.7	15.2	15.7
Compressive Strength	MPa	2000	2160	2350
Flexural Strength	MPa	280	310	350
Fracture Toughness	MPa・m1/2	3~4	3~4	4.5
Modulus of Elasticity	GPa	320	360	370
Poissons Ratio	--	0.23	0.23	0.23
