Detail Information

Materials:	95-997% Alumina	Low Thermal Expansion:	Yes
Dimensional Tolerance:	±0.001 Mm	Bulk Density:	>3.63
Maximum Use Temperature:	1700c	Chemical Resistance:	Excellent
Applications:	Electrical Insulators, Wear-resistant Parts, Cutting Tools, Biomedical Implants	Low Dielectric Loss:	0.0002
Chemical Composition:	Al2O3 (Aluminum Oxide)	Properties:	Electric Insulation
Thermal Conductivity:	20 - 30 W/m·K	Maximum Operating Temperature:	Up To 1700°C
Corrosion Resistance:	Excellent	Elastic Modulus:	380 GPa
Highlight:	Alumina Ceramic Plate With Hole , High Temperature Resistance Alumina Plate

Product Description

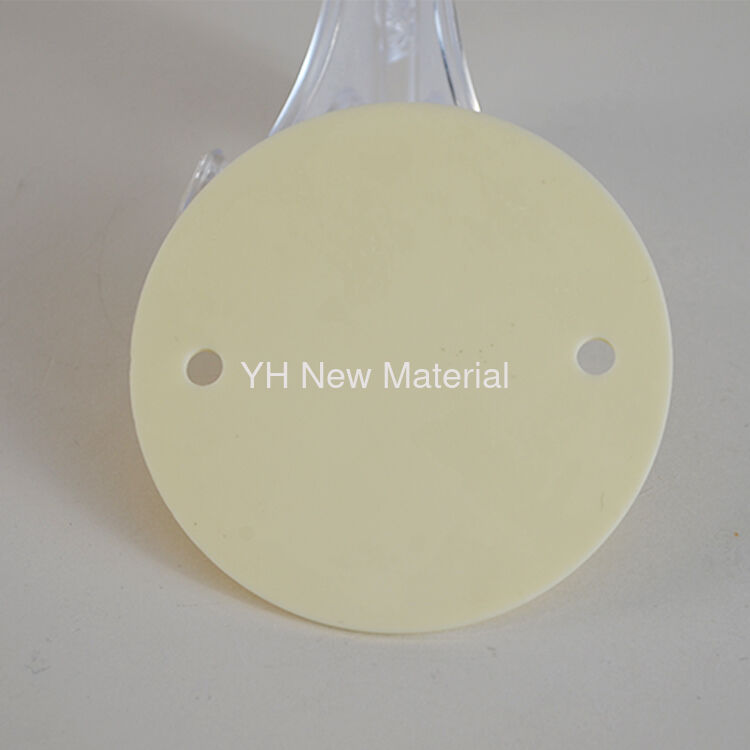

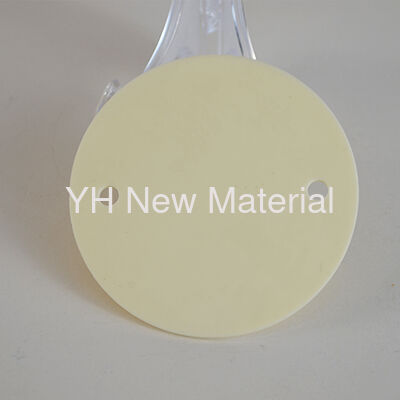

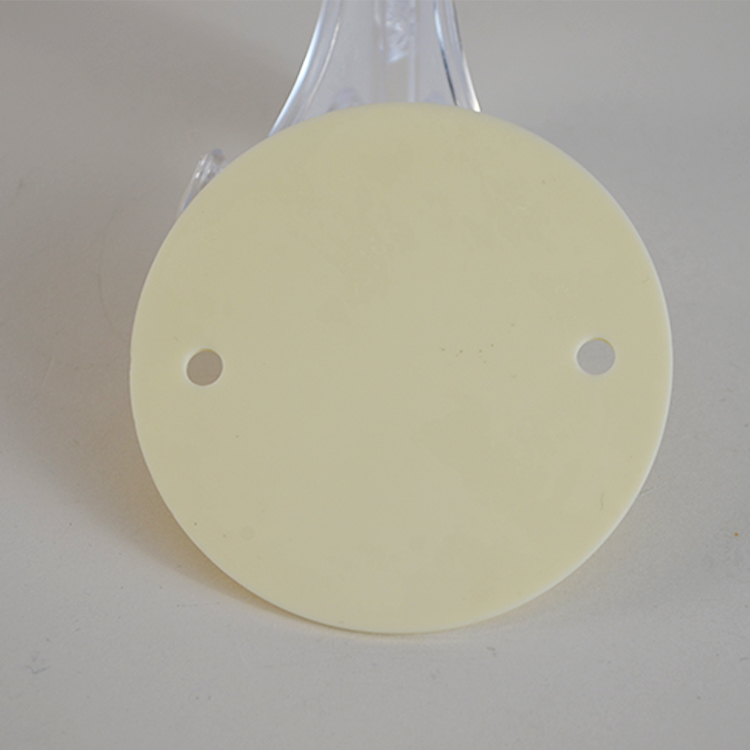

High Temperature Resistance 95% Alumina Ceramic Plate with Hole

95% Alumina Ceramic Plate with Hole

In high-temperature industrial processes—from furnaces and kilns to heat treatment equipment—components must stand up to scorching environments without compromising performance. Our 95% Alumina Ceramic Plate with Hole is engineered for these harsh conditions.

Key industrial-grade advantages:

Superior high-temperature resistance (withstands up to 1600°C continuous use)
95% high-purity alumina - ensures excellent thermal stability & mechanical strength
Pre-drilled hole design - easy installation & integration into existing systems
Corrosion & wear resistant - long service life, reduces maintenance costs
Ideal for heat shields, insulation panels, sensor mounts, and high-temp industrial fixtures

Customizable hole sizes, dimensions, and thicknesses to match your specific application requirements. Trusted by manufacturers for reliable high-temperature performance.

95% Alumina Ceramic Plate With Pre Drilled Hole High Temperature Resistance 0

Application

Performance That Outperforms Alternatives


			Item

			Unit

			95 Al2O3

			96 Al2O3

			99 Al2O3

			Physical Characteristics

			Heat resistance

			0C

			1500

			1550

			1800

			Bulk density

			g/cm3

			3.6

			3.6

			3.9

			Water absorption

			%

			0

			0

			0

			Mechanical Characteristics

			Flexural strength

			Mpa

			320

			340

			360

			Hardness vickers

			Gpa

			12.2

			13.5

			15.6

			Elastic modulus

			Gpa

			280

			320

			370

			Poisson’s ratio

			0.22

			0.23

			0.23

			Thermal Characteristics

			Linear expansion coefficient

			(20-5000C) 10-6/0C

			7.1

			7.2

			8

			Thermal conductivity

			w/(m.k)

			16

			24

			32

			Specific Heat

			*10-3J/(kg*K)

			0.78

			0.78

			0.9

			Electrical Characteristics

			Dielectric constant (1MHZ)

			-

			9

			9.4

			9.9

Various Types of Aluminum Nitride Sheets

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Machining Ability of Alumina Ceramics:

Dimensional accuracy: Up to 0.02mm

Surface roughness: Ra0.02-3.2μm

Concentricity: Up to 0.02mm

Parallelism: Up to 0.01mmFlatness:Up to 0.01mm
Accuracy of Inner hole Drilling: Up to 0.01mm

Cylindricity: Up to 0.02mm

Thread machining: Minimum internal thread M2

Surface finish: As fired, glazed, grinding, polishing, metallization,coating


                                              Feature

			√ High Voltage Insulator

			√ High Purity, Max. 99.8%

			√ Various Available Grades

			√ Hard and Wear Resistant

			√ High Corrosion Resistance

			√ High Mechanical Strength

			√ Good Thermal Conductivity

			√ High Operating Temperature

			√ Most Favorable Fine Ceramic

Packing

			Hunan Yuanhong New Material Co.,Ltd was established in 2016 ,there are over 100 sets of ceramic professional equipments , several types of furnace in more than 8000 square meters production workshops. ISO9001 certified, a variety of advanced ceramic materials are ROHS and REACH certified.

CNC Workshop
Dry Pressing Workshop
Polishing Machine
Zirconium Oxide Furnace
Sintering Kiln
Exhibition
FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO,CE,Rohs

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	Packing by carton
Delivery Time:	15-30 work days
Supply Ability:	10000pcs per month
