Detail Information

Dielectric Strength:	15 KV/mm	Chemical Composition:	Al2O3 (Aluminum Oxide)
Color:	White Or Yellow	Electrical Insulation:	Excellent
Operating Temperature:	Up To 1700°C	Low Thermal Expansion:	Excellent
Biocompatibility:	Yes	Alumina Content:	95-99.7%
Flexural Strength:	300 To 400 MPa	Thermal Conductivity:	20 To 30 W/m·K
Machinability:	Difficult	Maximum Use Temperature:	1700c
Transparency:	Opaque	Surface Finish:	Polished
Highlight:	Alumina Ceramic Arm End Effector , Alumina Ceramic Wafer Handling Parts

Product Description

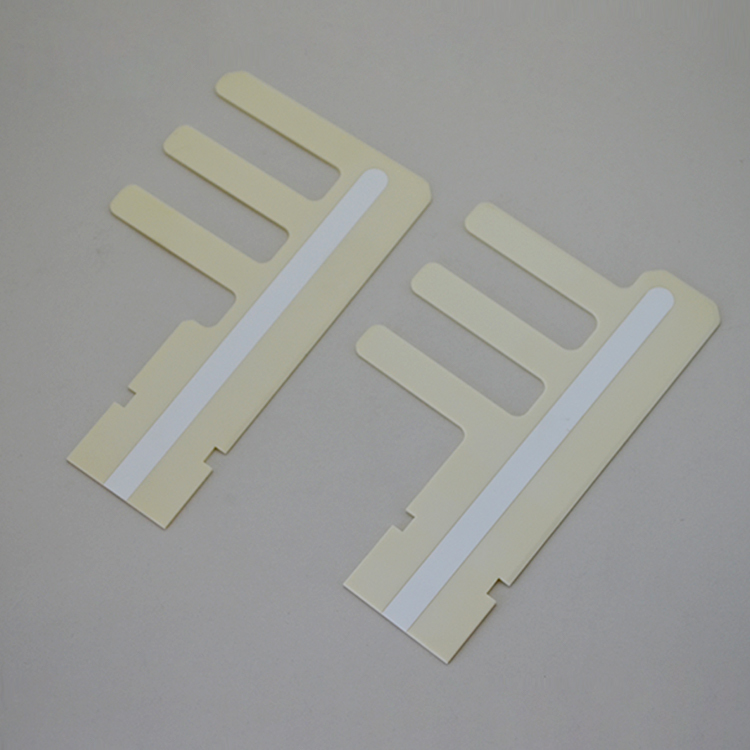

Semiconductor's Alumina Ceramic Arm End Effector Customized

High-Temperature Wafer Handling Parts Cutting Service

In CNC machining and precision mechanical operations, wear and low hardness of positioning components lead to frequent replacements,

reduced accuracy, and increased costs. It's time to upgrade to components that keep up with your high-demand workflows.

Our Alumina Ceramic Positioning Blocks (CNC Machined & Sintered) are engineered for extreme performance, boasting:

• Superior wear resistance - outlasts metal parts by 5-10x in high-friction environments

• Exceptional hardness (HRA ≥ 88) - maintains precision shape even under heavy loads

• High-precision CNC machining - ensures tight tolerances for accurate positioning

• Sintered for durability - stable performance in harsh industrial conditions

• Ideal for cutting machinery, mechanical fixtures, and precision machining equipment

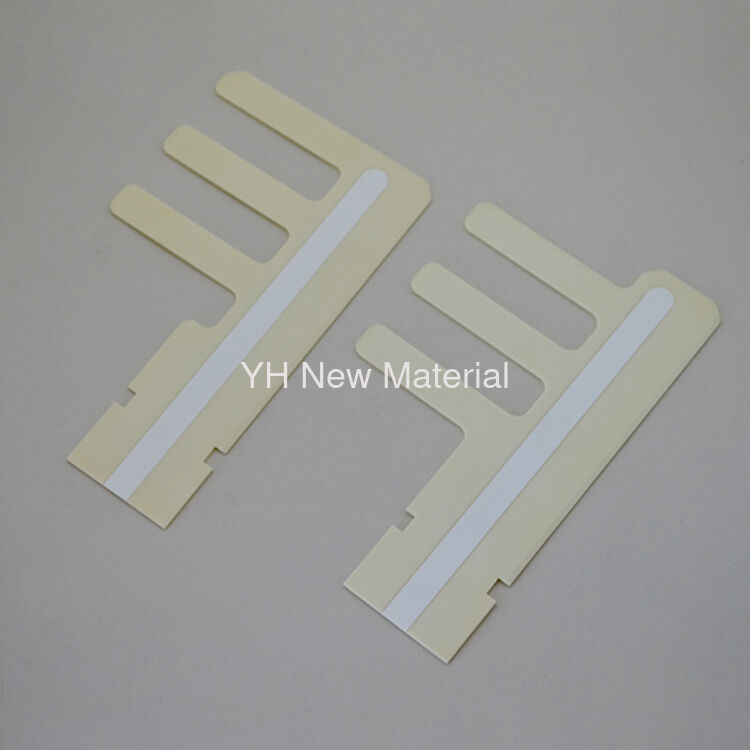

Customized Alumina Ceramic Arm End Effector High Temperature Wafer Handling Parts 0

Application

Mechanical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Colour

			--

			White

			Yellow

			Yellow

			Density

			g/cm³

			3.7

			3.85

			3.9

			Hardness

			GPa

			13.7

			15.2

			15.7

			Compressive Strength

			MPa

			2000

			2160

			2350

			Flexural Strength

			MPa

			280

			310

			350

			Fracture Toughness

			MPa・m1/2

			3~4

			3~4

			4.5

			Modulus of Elasticity

			GPa

			320

			360

			370

			Poissons Ratio

			--

			0.23

			0.23

			0.23

Thermal Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Maximum Use Temperature

			℃(No load)

			1650

			1650

			1650

			Thermal Conductivity @ 20°C

			W/(m・K)

			24

			29

			32

			Thermal Expansion a at 20–400°C

			1 x 10-6/°C

			7~8

			7~8

			7~8

			Specific Heat

			J/(kg・K)

			780

			790

			780

			Thermal Shock Resistance

			℃(Put in water)

			200

			200

			200

Electrical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Dielectric Constant

			1MHz

			9.4

			9.9

			9.9

			Dielectric Strength

			V/m

			15 x 10 6

			15 x 10 6

			15 x 10 6

			Dielectric Loss

			1MHz

			4 x 10 -4

			4 x 10 -4

			4 x 10 -4

			Volume Resistivity @ 25°C

			Ω・cm

			>10 14

			>10 14

			>10 14

			Volume Resistivity @ 500°C

			Ω・cm

			>10 8

			>10 8

			>10 10

Various Types of Alumina Ceramic Part

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic* Relatively low density;

* Extremely high operating temperature;

* Very high hardness and compressive strength;

* Excellent electrical insulation properties;

* Corrosion and wear resistance;

* Biologically inert, food compatibility.
Alumina Ceramic PropertiesThe following only lists the performance parameters of the three most common aluminum oxide ceramics. Normally, alumina ceramics

are composed of these types

Packing

Customized Alumina Ceramic Arm End Effector High Temperature Wafer Handling Parts 4

Hunan Yuanhong New Material Co.,Ltd was established in 2016 ,there are over 100 sets of ceramic professional equipments , several types of furnace in more than 8000 square meters production workshops. ISO9001 certified, a variety of advanced ceramic materials are ROHS and REACH certified.

FAQ

Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO,CE
Model Number:	YH

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	by caront or wooden case
Delivery Time:	10-30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000pcs per month
