Detail Information

Volume Resistivity:	10^14 Ω·cm	Wear Resistance:	Very High
Purity:	Typically 30% To 99.9%	Maximum Use Temperature:	1700c
High Purity:	99.5% Or Higher	Method:	Lsostatic Presure
Bulk Density:	>3.63	Max Operating Temperature:	1700°C
Properties:	Electric Insulation	Melting Point:	2040°C
Transparency:	Opaque	Type:	Alumina Ceramic Parts
Alumina Content:	95%	Biocompatibility:	Yes
Precision Tolerance:	High
Highlight:	99% Alumina Ceramic Tube , Refractory Ceramic Pipe Insulation

Product Description

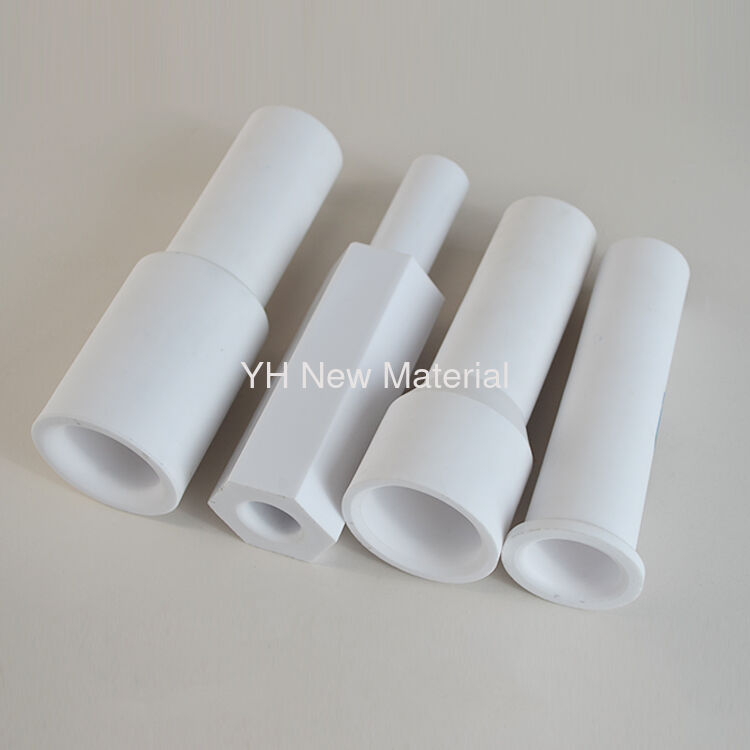

Refractory Alumina Ceramic Tube Industrial Use Cutting Service

High-Temperature Insulation Alumina Ceramic Tubes: Engineered for Industrial Excellence

For professionals in metallurgy, thermal processing, and high-voltage equipment manufacturing—our alumina ceramic tubes provide a critical layer of protection against extreme temperatures and electrical leakage.

Key benefits:

Exceptional thermal shock resistance for long service life

High volume resistivity for stable insulation under heat stress

Customizable dimensions & structures to match your exact specifications

As a direct manufacturer, we ensure consistent quality and on-time delivery for global clients. Connect with us to discuss your insulation needs!

$Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 0$ $Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 1$

Alumina ceramic tubes of application:

1.Industrial Furnaces: Thermocouple protection tubes, furnace tubes, inspection tubes, rollers.

2.Semiconductor & Electronics:Diffusion furnace tubes, insulating sleeves, vacuum chamber components.

3.Mechanical & Wear Parts: Wear-resistant linings, guide tubes, nozzles, sealing rings.

4.Energy & Environmental: Fuel cell components, sensor protection tubes, sampling tubes.

5.Laboratory:Tube furnace tubes, laboratory glassware.

$Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 2$

Industrial Ceramic Performance Specifications

Al₂O₃ Content (%)	70-75	85	95	99.7
Density (g/cm³)	3.0	3.4	3.7	3.9
Bending Strength (MPa)	85	300	364	450
Coefficient of Thermal Expansion (200℃-800℃)	6	7	7.6	8
Thermal Conductivity (W/(m·K))	17	18	20	35
Dielectric Strength (kV/mm)	9	10	11	12
Working Temperature (Long Term Use) (℃)	1300	1400	1600	1750
Water Absorption (%)	5	<0.2	<0.25	<0.1-0.2

$Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 3$ $Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 4$

Main advantage of the Alumina ceramic tubes:

1.Maximum tolerable temperature: 1600°C–1800°C,It does not soften or deform at high temperatures,

has a low coefficient of thermal expansion, and exhibits excellent thermal shock resistance.

Alumina ceramic tubes of Feature:

1.High Temperature Resistance: Can be used for extended periods at temperatures up to 1600°C or even higher (depending on alumina purity, such as 99% alumina).

2.High Hardness and Wear Resistance: With a Mohs hardness of up to 9, second only to diamond, it effectively resists particle abrasion and erosion.

3.Excellent Electrical Insulation: Maintains good insulation performance even at high temperatures, making it an ideal material for insulating sleeves.

4.Chemical Corrosion Resistance: Excellent resistance to most acids, alkalis, salts, and molten metals (except for hydrofluoric acid and high-temperature corrosion from strong alkalis).

5.High Mechanical Strength: High compressive and flexural strength, but is a brittle material with poor resistance to mechanical impact.

6.Low Coefficient of Thermal Expansion: Good dimensional stability and relatively good thermal shock resistance (but not as good as zirconium oxide).

7.Bio-Inert: High-purity alumina is harmless to human tissue.

$Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 5$ $Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 6$

Product Packaging

$Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 7$

Qualified products are carefully packed in protective wooden boxes to ensure safe transportation and delivery.

$Refractory 60-99% Alumina Ceramic Tube Industrial Use Ceramic Pipe Insulation 8$

Frequently Asked Questions

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	China
Brand Name:	YH
Certification:	ISO
Model Number:	YH-T

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	wooden case and paper case
Delivery Time:	15-30 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000pcs per month
