Name: 99.5% Alumina Ceramic Cylinder Piston Plunger Tube Customized Made Wear Proof
Brand: Hunan Yuanhong New Materials Co.,Ltd
SKU: YH
Availability: InStock

Detail Information

Coefficient Of Thermal Expansion:	Low	Material:	Ceramic
Type:	Piston	Application:	Internal Combustion Engines, Compressors
Manufacturing Process:	Sintering Or Injection Molding	Surface Finish:	Smooth Or Polished
Compatibility:	Compatible With Various Engine Types	Mechanical Strength:	High Compressive Strength
Highlight:	99.5% Alumina Ceramic Cylinder Piston , Alumina Ceramic Plunger Tube Customized

Product Description

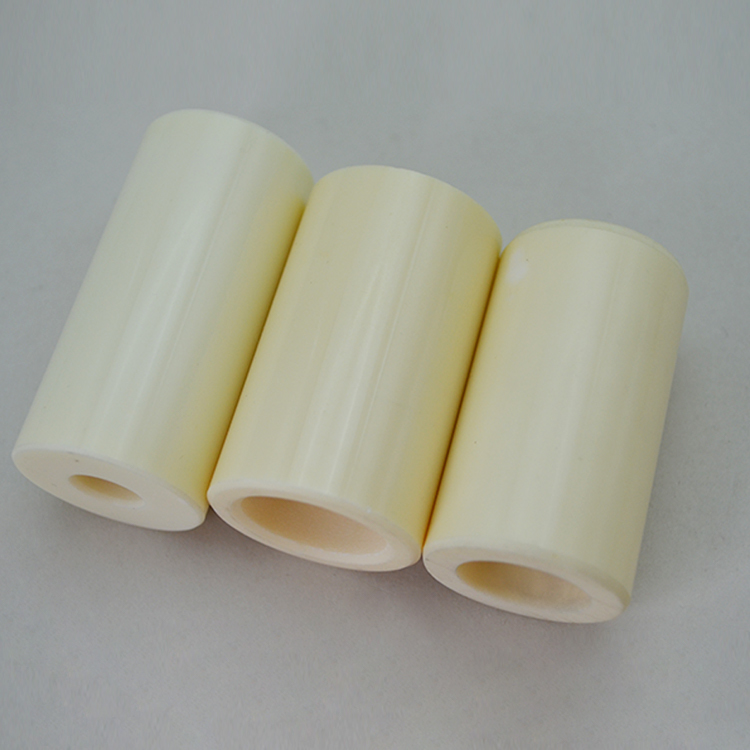

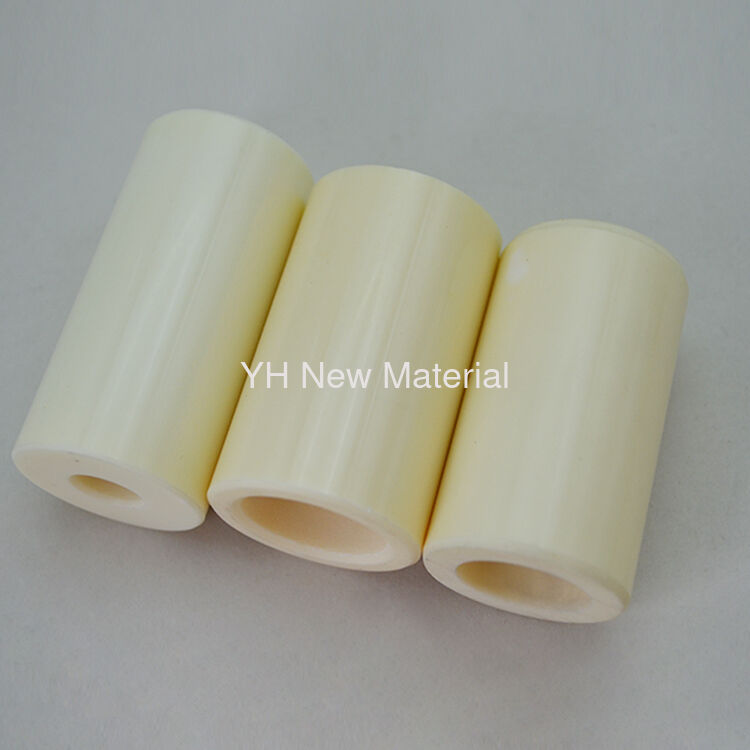

Mechanical Wear-proof 99.5% Alumina Ceramic Cylinder Piston Plunger Tube

99.5% Alumina Ceramic Cylinder Piston Plunger Tube Customized Made Wear Proof 0

Alumina (Al₂O₃) Ceramic Plunger:

Alumina ceramic plungers are high-performance precision components engineered for demanding pump and fluid handling

			applications.Manufactured from high-purity aluminum oxide (Al₂O₃), these plungers deliver exceptional wear resistance, chemical

			inertness, anddimensional stability, outperforming traditional metal and polymer alternatives in severe service conditions across

			chemical,pharmaceutical, food processing, and industrial sectors

Application Alumina ceramic tubes of application:1. Industrial Furnaces: Thermocouple protection tubes, furnace tubes, inspection tubes, rollers. 2. Semiconductor & Electronics:Diffusion furnace tubes, insulating sleeves, vacuum chamber components.
Mechanical & Wear Parts: Wear-resistant linings, guide tubes, nozzles, sealing rings.
Energy & Environmental: Fuel cell components, sensor protection tubes, sampling tubes.
Laboratory:Tube furnace tubes, laboratory glassware.

Mechanical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Colour

			--

			White

			Yellow

			Yellow

			Density

			g/cm³

			3.7

			3.85

			3.9

			Hardness

			GPa

			13.7

			15.2

			15.7

			Compressive Strength

			MPa

			2000

			2160

			2350

			Flexural Strength

			MPa

			280

			310

			350

			Fracture Toughness

			MPa・m1/2

			3~4

			3~4

			4.5

			Modulus of Elasticity

			GPa

			320

			360

			370

			Poissons Ratio

			--

			0.23

			0.23

			0.23

Thermal Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Maximum Use Temperature

			℃(No load)

			1650

			1650

			1650

			Thermal Conductivity @ 20°C

			W/(m・K)

			24

			29

			32

			Thermal Expansion a at 20–400°C

			1 x 10-6/°C

			7~8

			7~8

			7~8

			Specific Heat

			J/(kg・K)

			780

			790

			780

			Thermal Shock Resistance

			℃(Put in water)

			200

			200

			200

Electrical Properties

			Properties

			Unit

			95%Al2O3

			99%Al2O3

			99.5%Al2O3

			Dielectric Constant

			1MHz

			9.4

			9.9

			9.9

			Dielectric Strength

			V/m

			15 x 10 6

			15 x 10 6

			15 x 10 6

			Dielectric Loss

			1MHz

			4 x 10 -4

			4 x 10 -4

			4 x 10 -4

			Volume Resistivity @ 25°C

			Ω・cm

			>10 14

			>10 14

			>10 14

			Volume Resistivity @ 500°C

			Ω・cm

			>10 8

			>10 8

			>10 10

Various Types of Alumina Ceramic piston

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic* Relatively low density;

* Extremely high operating temperature;

* Very high hardness and compressive strength;

* Excellent electrical insulation properties;

* Corrosion and wear resistance;

* Biologically inert, food compatibility.
Alumina Ceramic PropertiesThe following only lists the performance parameters of the three most common aluminum oxide ceramics. Normally, alumina ceramics are composed of these types

Packing

CNC Workshop
Dry Pressing Workshop
Polishing Machine
Zirconium Oxide Furnace
Sintering Kiln
Exhibition
FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO,CE
Model Number:	YH

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	by caront or wooden case
Delivery Time:	10-30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000pcs per month
