Detail Information

Coefficient Of Thermal Expansion:	4.5-5.3 X10^-6 /K	Dielectric Constant:	8.5-9.5
Operating Temperature Range:	-40°C To 1000°C	Thermal Conductivity:	170-200 W/mK
Applications:	Electronics, Heat Sinks, Substrates	Surface Finish:	Polished Or As-sintered
Density:	3.26 G/cm³	Electrical Resistivity:	1x10^14 Ohm-cm
Purity:	99.5% Or Higher	Material:	Aluminum Nitride (AlN)
Breakdown Voltage:	10-15 KV/mm	Color:	Light Gray To White
Form Factor:	Customizable Shapes And Sizes
Highlight:	Industrial Hot Pressed Aln Parts , Aluminum Nitride Ceramic Structural Components

Product Description

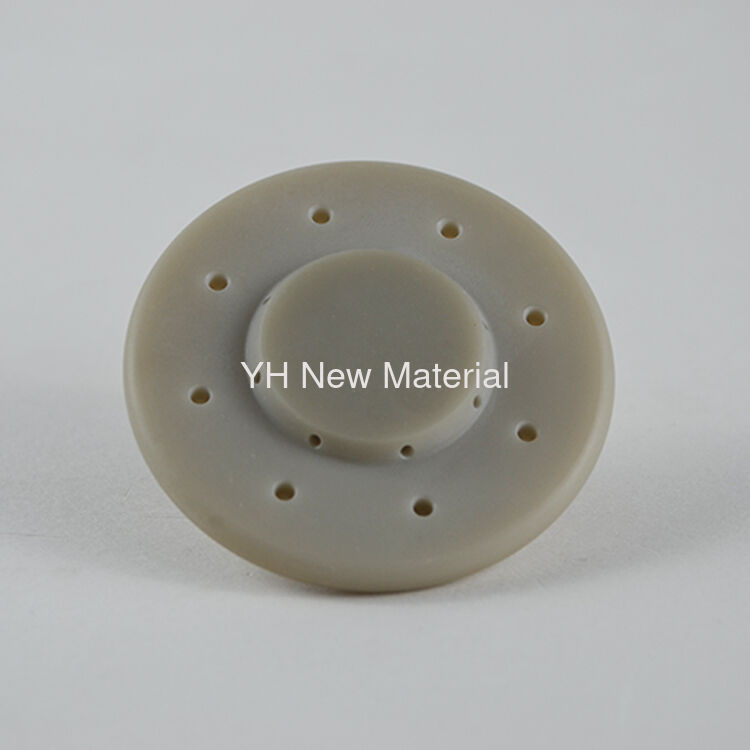

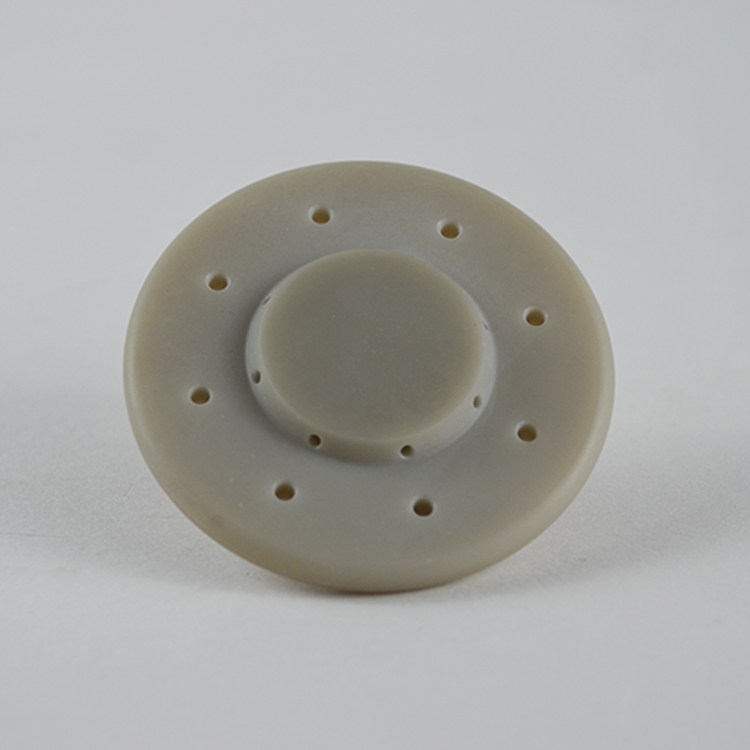

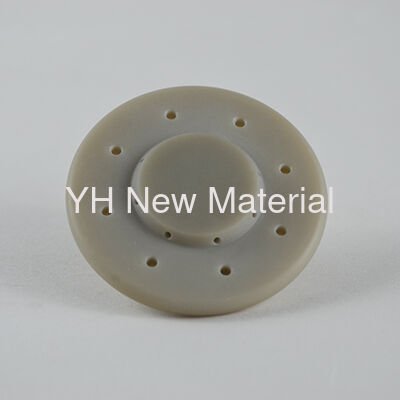

Industrial Machined Hot Pressed Aln Aluminum Nitride Ceramic Structural Parts

Premium Aluminum Nitride Sheets - Superior Thermal Conductivity & Electrical Insulation.

High-Performance Ceramic Solution for Electronics, LED, and Semiconductor Industries

Aluminum nitride ceramics are usually gray or off-white. It has a low thermal expansion coefficient,

excellent insulation performance, heat resistance, and a thermal conductivity of more than 180W/(m.k).

It is an ideal package heat dissipation material for large integrated circuits.

Application
Aluminum Nitride Part Application:
Here are the common purity levels of aluminum nitride powder (AlN) and their typical applications:
1. Industrial Grade Purity•Purity Range: 95% - 98%•Applications: Generally used in applications where high purity is not critical, such as basic ceramic

materials and composites.
2. High Purity•Purity Range: 99% - 99.5%•Applications: Suitable for most electronic packaging and thermal management applications, as well as

high-performance ceramic materials.
3. Ultra-High Purity•Purity Range: 99.5% - 99.99%•Applications: Used in advanced electronic packaging, LED packaging, and high-performance catalyst

supports where extremely high purity is required.
4. Special Purity•Purity Range: >99.99%•Applications: Used in specific scientific research and high-precision technology applications, such as

aerospace and military fields.
Selection Recommendations•Choose Based on Application Requirements: Different applications have different purity requirements. Selecting the appropriate purity can balance performance and cost.

			Regular Size

			Length x Width (mm)

			Thickness (mm)

2'' x 2''
(50.8 x 50.8)

 3'' x 3''
(76.2 x 76.2)

4'' x 4''
(101.6 x101.6)

4.5'' x 4.5''

			(114.3 x 114.3)

5'' x 5''
(127 x 127)

			 0.385

			 0.5

			 0.635

			 1.0

			Diameter (mm)

			Thickness (mm)

Φ16 Φ19 Φ20 Φ26Φ30 Φ35 Φ40 Φ45 Φ50 Φ52 Φ60 Φ75 Φ80

			1.0

			1.2

			1.5

			2.0

			2.5

Performance That Outperforms Alternatives


			Item

			Unit

			Reference Value

			Test method

			Thermal conductivity

			 W/m・K

			＞170

			Transient plane source method

			Surface roughness

			μm

			＜0.6

			Stylus surface roughness tester

			Warpage

			 /

			＜2.5‰

			Glass gauge

			Apparent density

			 g/cm3

			≥3.26

			Drainage method

			Bending strength

			 MPa

			＞300

			Three-point bending resistance method

			Volume resistance

			Ω・cm

			 1.5x1013 (TYP)

			Volume resistance gauge

			Dielectric constant

			 @1MHz

			 8.9 (TYP)

			Impedance method

			Dielectric loss

			 @1MHz

			4.6×10-4(TYP)

			Impedance method

			Break down voltage

			 Kv/mm

			36.85(TYP)

			DC power method

			Coefficient of linear expansion

			 1×10-6/℃

			 4.75(TYP)

			Thermomechanical a

Various Types of Aluminum Nitride Sheets

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Exceptional Material Properties:

Technical Superiority

* High Purity Material: >99% AlN composition with minimal impurities.

* Advanced Manufacturing: Pressureless sintering technology ensures uniform density.

* Precision Engineering: ±0.05mm dimensional tolerance guarantee.

* Multiple Finishes: As-fired, polished, or metallized surfaces available.

Quality Certifications

* ISO 9001:2015 Certified Manufacturing

* Batch-to-Batch Consistency Guarantee

* Full Traceability Documentation

* RoHS & REACH &CE Compliant

Packing

Industrial Machined Hot Pressed Aln Parts Aluminum Nitride Ceramic Structural Components 4

FAQ

Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Tag:

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO
Model Number:	YH-A

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	Carton
Delivery Time:	5-8weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000pcs per month
