Detail Information

Coefficient Of Thermal Expansion:	4.5-5.3 X10^-6 /K	Dielectric Constant:	8.5-9.5
Operating Temperature Range:	-40°C To 1000°C	Thermal Conductivity:	170-200 W/mK
Applications:	Electronics, Heat Sinks, Substrates	Surface Finish:	Polished Or As-sintered
Density:	3.26 G/cm³	Electrical Resistivity:	1x10^14 Ohm-cm
Purity:	99.5% Or Higher	Material:	Aluminum Nitride (AlN)
Breakdown Voltage:	10-15 KV/mm	Color:	Light Gray To White
Form Factor:	Customizable Shapes And Sizes
Highlight:	Aluminium Nitride AIN Parts , Customizable AlN Structural Components

Product Description

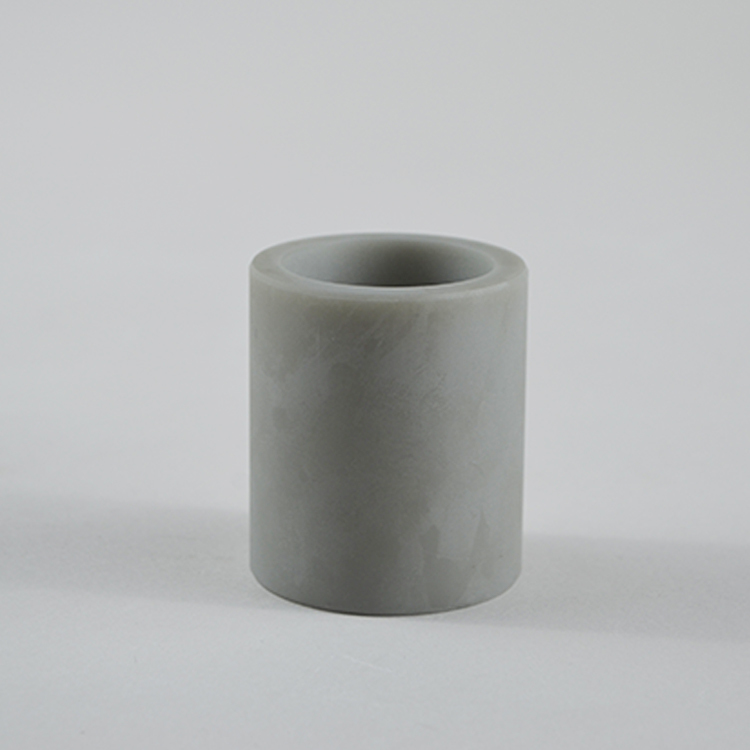

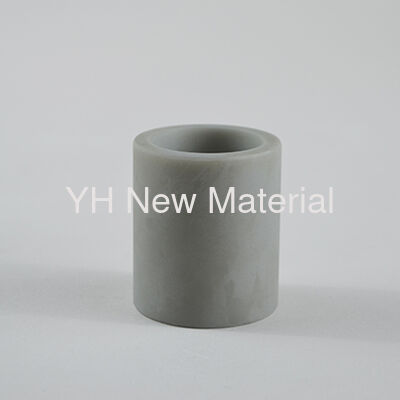

Aluminium Nitride AlN Structural Components Tube Sleeve

Tired of frequent pipeline replacements and safety hazards in corrosive, high-temperature chemical environments?

Upgrade to our Aluminum Nitride (AlN) Ceramic Tubes — the ultimate solution for uncompromising performance in harsh industrial conditions!

Our AlN ceramic tubes boast superior corrosion resistance that outperforms traditional 316L stainless steel and ordinary ceramics.

They remain structurally stable even when conveying 50% concentrated sulfuric acid, strong alkalis, and molten media, eliminating l

eakage risks and cutting maintenance costs by up to 70%. With a melting point of 2200℃ and stable performance at 1600℃,

they easily withstand extreme temperatures in petroleum cracking, ammonia synthesis, and other high-heat processes,

extending service life from 18 months to over 2 years.

What sets us apart? Exceptional thermal conductivity (200-300W/(m·K)) that boosts heat exchange efficiency by 30%, reducing energy consumption significantly.

Plus, high purity and zero impurity leaching ensure your chemical products meet strict purity standards for pharmaceutical and electronic-grade applications.

Application
Aluminum Nitride Part Application:
Here are the common purity levels of aluminum nitride powder (AlN) and their typical applications:
1. Industrial Grade Purity•Purity Range: 95% - 98%•Applications: Generally used in applications where high purity is not critical, such as basic ceramic

materials and composites.
2. High Purity•Purity Range: 99% - 99.5%•Applications: Suitable for most electronic packaging and thermal management applications, as well as

high-performance ceramic materials.
3. Ultra-High Purity•Purity Range: 99.5% - 99.99%•Applications: Used in advanced electronic packaging, LED packaging, and high-performance catalyst

supports where extremely high purity is required.
4. Special Purity•Purity Range: >99.99%•Applications: Used in specific scientific research and high-precision technology applications, such as

aerospace and military fields.
Selection Recommendations•Choose Based on Application Requirements: Different applications have different purity requirements. Selecting the appropriate purity can balance performance and cost.

			Regular Size

			Length x Width (mm)

			Thickness (mm)

2'' x 2''
(50.8 x 50.8)

 3'' x 3''
(76.2 x 76.2)

4'' x 4''
(101.6 x101.6)

4.5'' x 4.5''

			(114.3 x 114.3)

5'' x 5''
(127 x 127)

			 0.385

			 0.5

			 0.635

			 1.0

			Diameter (mm)

			Thickness (mm)

Φ16 Φ19 Φ20 Φ26Φ30 Φ35 Φ40 Φ45 Φ50 Φ52 Φ60 Φ75 Φ80

			1.0

			1.2

			1.5

			2.0

			2.5

Performance That Outperforms Alternatives


			Item

			Unit

			Reference Value

			Test method

			Thermal conductivity

			 W/m・K

			＞170

			Transient plane source method

			Surface roughness

			μm

			＜0.6

			Stylus surface roughness tester

			Warpage

			 /

			＜2.5‰

			Glass gauge

			Apparent density

			 g/cm3

			≥3.26

			Drainage method

			Bending strength

			 MPa

			＞300

			Three-point bending resistance method

			Volume resistance

			Ω・cm

			 1.5x1013 (TYP)

			Volume resistance gauge

			Dielectric constant

			 @1MHz

			 8.9 (TYP)

			Impedance method

			Dielectric loss

			 @1MHz

			4.6×10-4(TYP)

			Impedance method

			Break down voltage

			 Kv/mm

			36.85(TYP)

			DC power method

			Coefficient of linear expansion

			 1×10-6/℃

			 4.75(TYP)

			Thermomechanical a

Various Types of Aluminum Nitride Sheets

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Exceptional Material Properties:

Technical Superiority

* High Purity Material: >99% AlN composition with minimal impurities.

* Advanced Manufacturing: Pressureless sintering technology ensures uniform density.

* Precision Engineering: ±0.05mm dimensional tolerance guarantee.

* Multiple Finishes: As-fired, polished, or metallized surfaces available.

Quality Certifications

* ISO 9001:2015 Certified Manufacturing

* Batch-to-Batch Consistency Guarantee

* Full Traceability Documentation

* RoHS & REACH &CE Compliant

Packing

Customizable Aluminium Nitride AIN Parts AlN Structural Components Tube Sleeve 5

FAQ

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
