| Place of Origin: | China Yixing |
|---|---|
| Brand Name: | HY |
| Certification: | CE |
| Model Number: | HY-TCG-05 |
| Minimum Order Quantity: | 10 pieces |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
| AL2O3: | ≥ 99.5% | Product Name: | Industrial Alumina Ceramic Tube |
|---|---|---|---|
| Color: | White Or Pale Yellow | Density: | 3.85g/cm³ |
| Sintering Temperature: | 1650℃ | Hardness （HV): | 1700 |
| Size: | Customization |
ceramic tube insulator high temperature ceramic tube ceramic tubes aquarium axial lead ceramic tube fuse

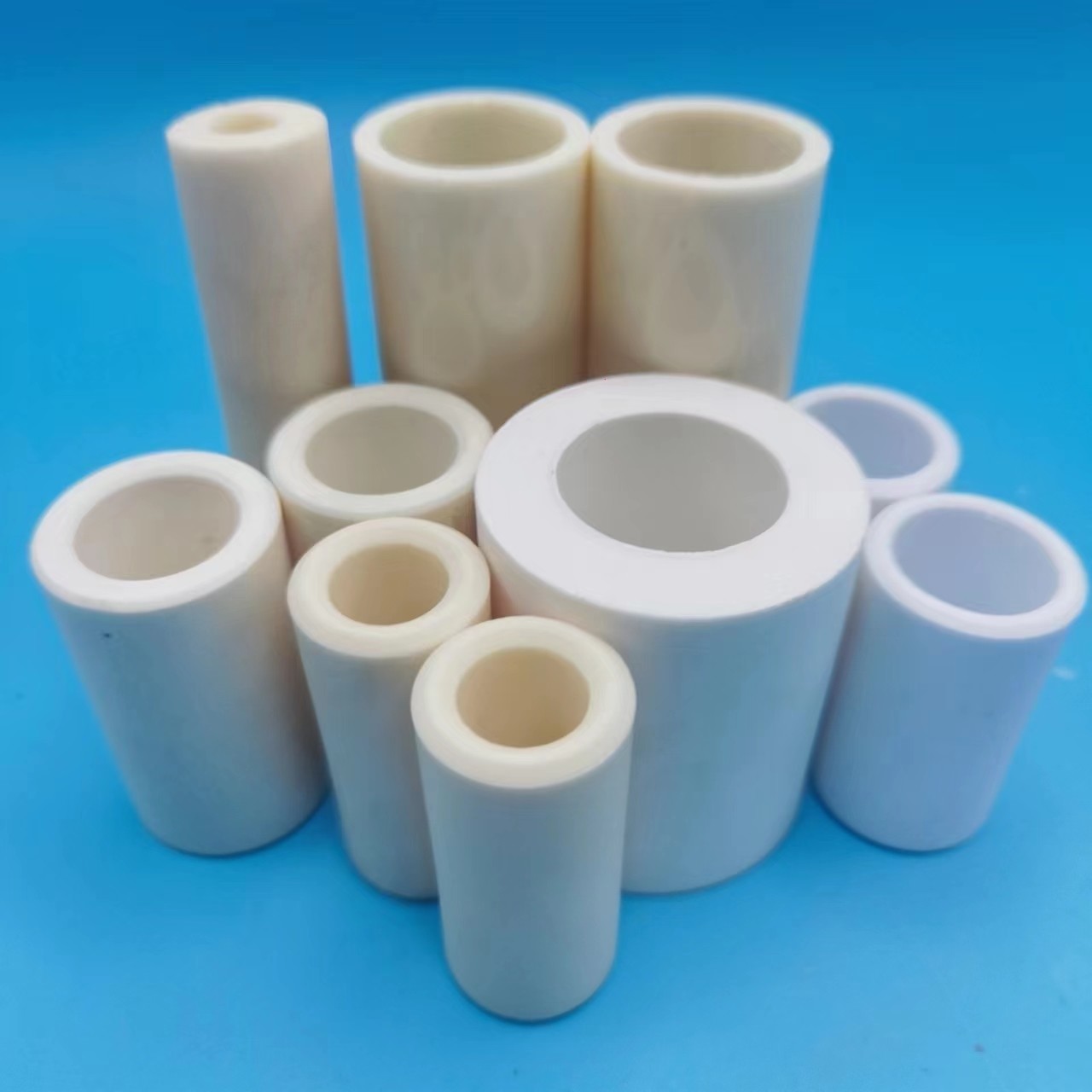

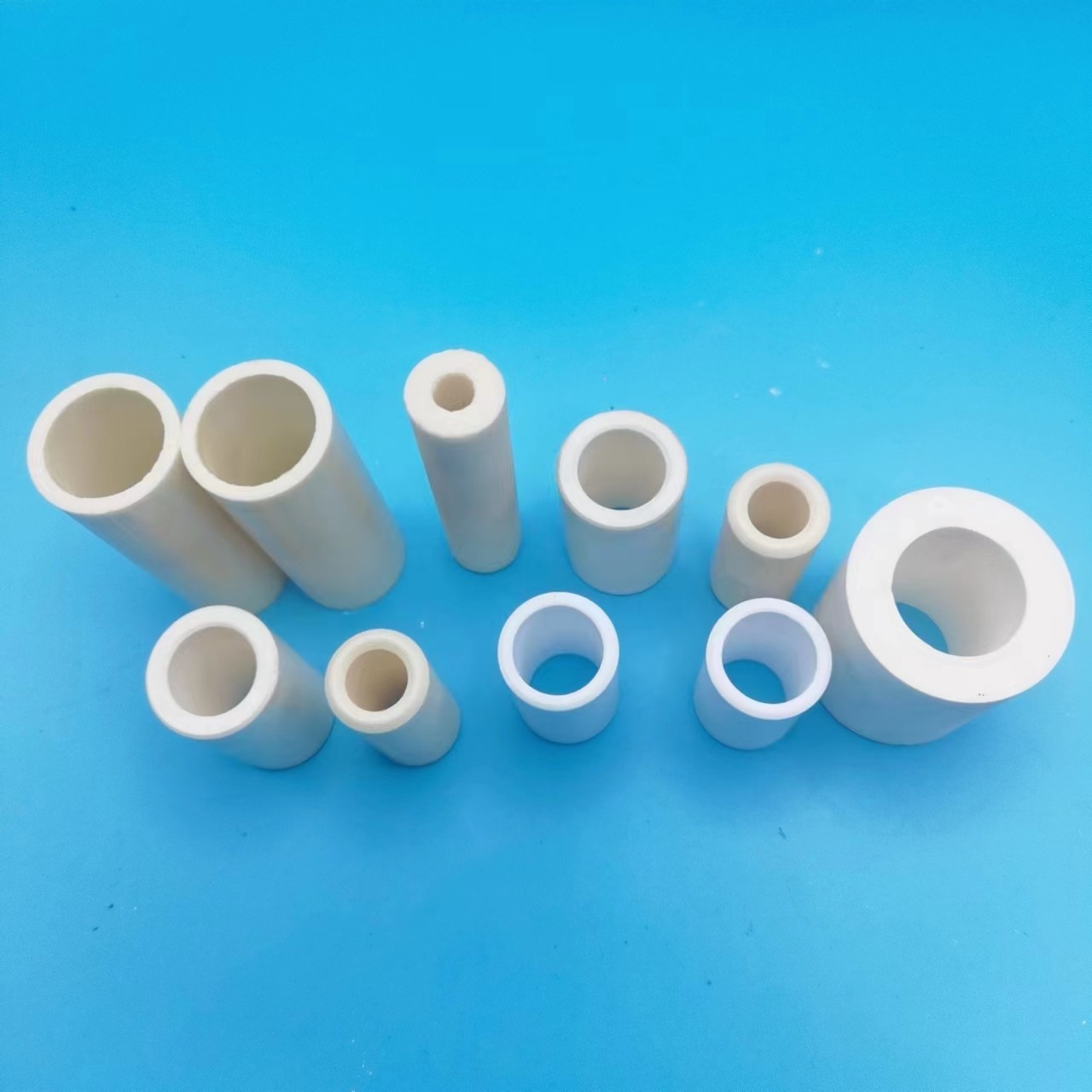

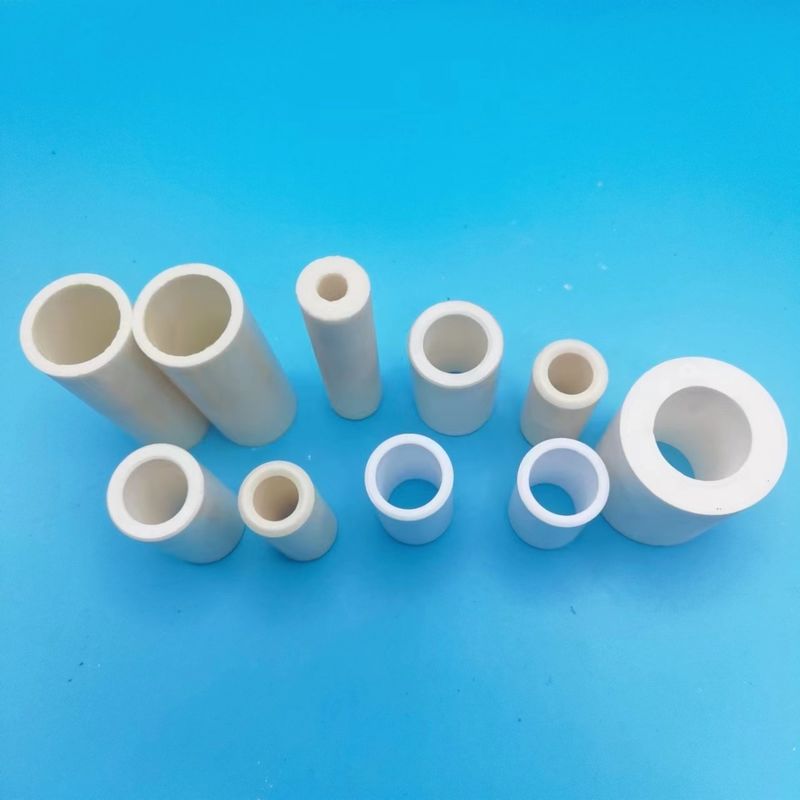

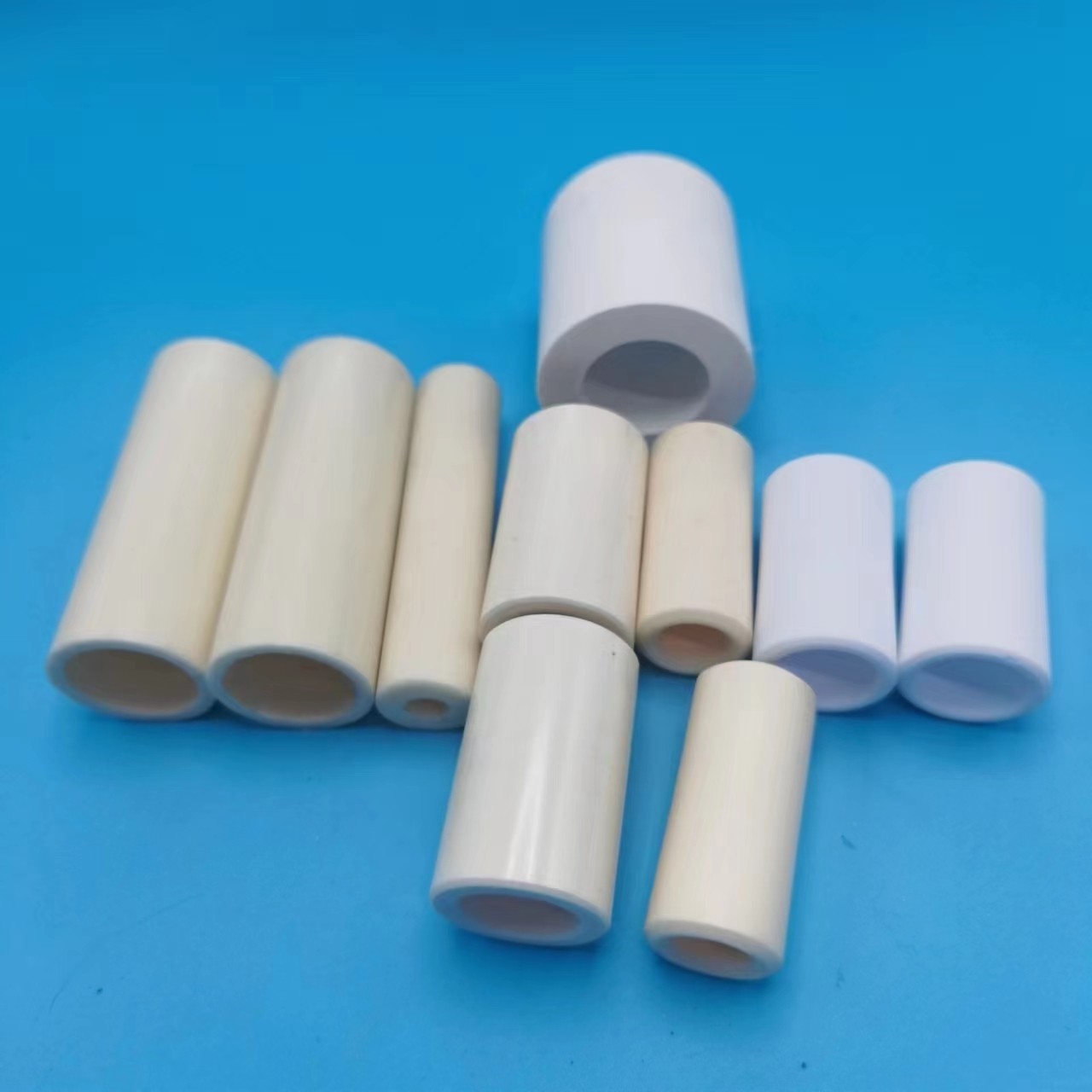

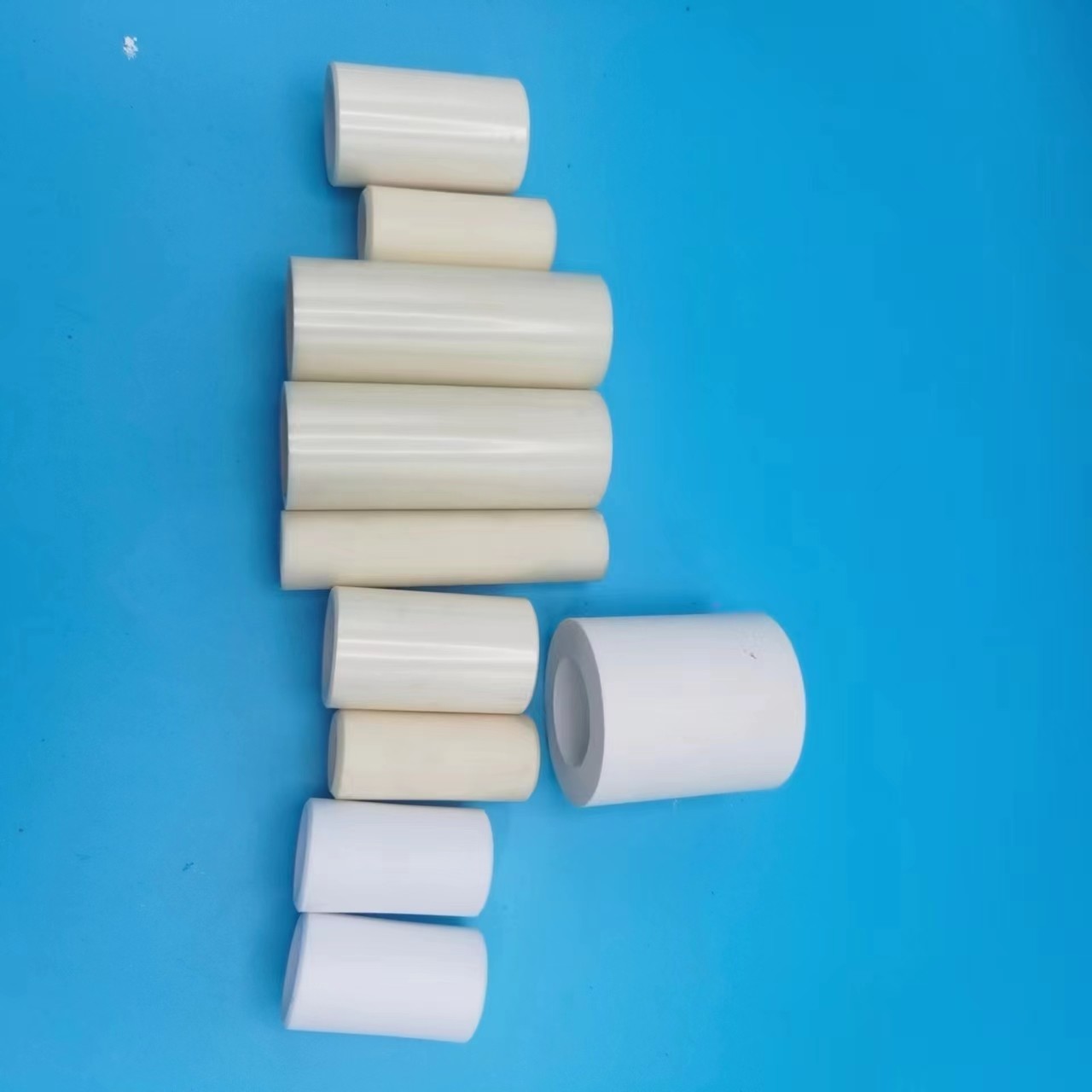

product name:Industrial alumina ceramic tube
Aluminum oxide ceramics are high-purity aluminum oxide products with excellent physical properties and chemical stability. The following are the performance characteristics and applications of alumina ceramics:
1. High hardness: Aluminum oxide ceramics have a very high hardness, up to level 9, which is more than 8 times that of steel. Therefore, they can be used to manufacture wear-resistant and high-temperature resistant components.
2. High melting point: Aluminum oxide ceramics have a high melting point of about 2050 ℃, making them suitable for use in high-temperature environments. For example, they can be used to manufacture high-temperature furnaces, heat exchangers, etc.
Aluminum oxide ceramics have a wide range of applications in industries, scientific research, military and other fields. For example, in automobile manufacturing, alumina ceramics can be used to manufacture wear-resistant components such as brake pads and clutch plates; In the aerospace field, alumina ceramics can be used to manufacture high-temperature engine nozzles, turbine blades, etc; In the medical field, alumina ceramics can be used to manufacture dentures, bone implants, etc; In the chemical industry, alumina ceramics can be used to manufacture reaction vessels, mass transfer equipment, and so on.
Physicochemical indexes of alumina solid rod:
| Item | Unit | Typical Values |
| Physical Properties | ||
| Colour | Ivory | |
| Density | g/cm3 | 3.85 |
| Alumina Content | % | 99% |
| Gas Permeability | 0 | |
| Water Absorption | % | 0% |
| Physical Properties | ||
| MONS’Hardness | 82 | |
| Vickers Hardness(Hv50) | Gpa(kg/mm2) | 15.7(1600) |
| Flexural Strength(20℃) | Mpa | 330 |
| Compressive Strength(20℃) | Mpa | 2000 |
| Fracture Thoughness(20℃) | Mpam1/2 | 4 |
| Thermal Properties | ||
| Thermal Conductivity(20℃) | W/(m.k) | 27.5 |
| Thermal Expansion Coeffcient | 10-6/℃ | 7.6 |
| Thermal Shock Resistance | △T℃ | 200 |
| Maximum Use Temperature | ℃ | 1650 |
| Electrical Properties | ||
| Dielectric Strength | KV/mm | ＞12 |
| Dielectric Conatant | ε0 | 9-10 |
| Dielectric Loss Angle(1MHz) | 0.0002 | |
| Volume Resistivity(20℃) | Ω.cm | ＞1014 |
