| Place of Origin: | China Yixing |
|---|---|
| Brand Name: | HY |
| Certification: | CE |
| Model Number: | HY-TCH-01 |
| Minimum Order Quantity: | 10 pieces |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| AL2O3: | ≥ 99% | Product Name: | Alumina Ceramics Ring Parts |
|---|---|---|---|
| Color: | White | Density: | 3.85g/cm³ |
| Sintering Temperature: | 1690℃ | Size: | Customization |

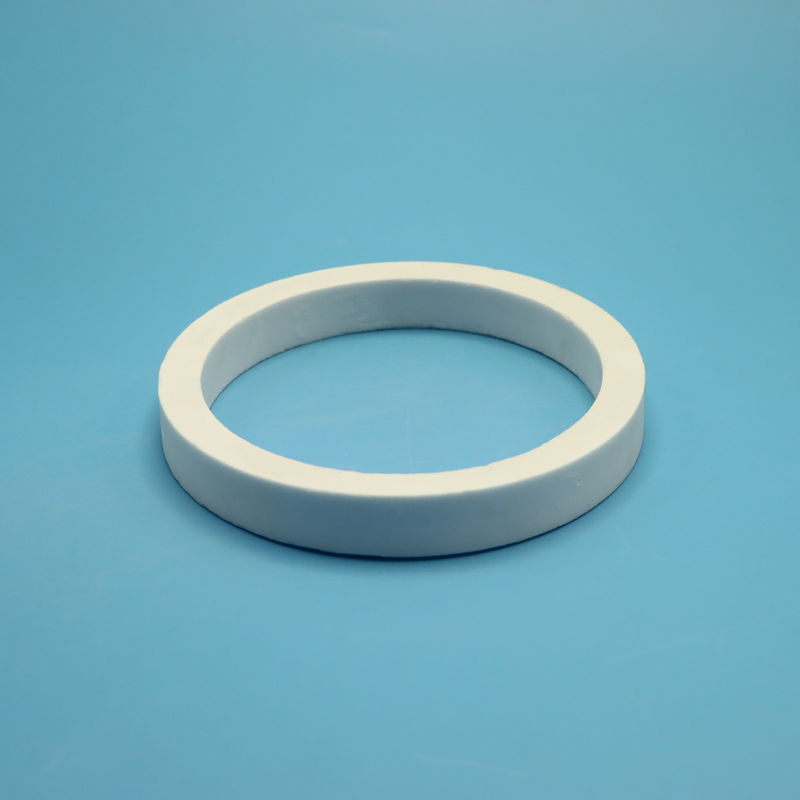

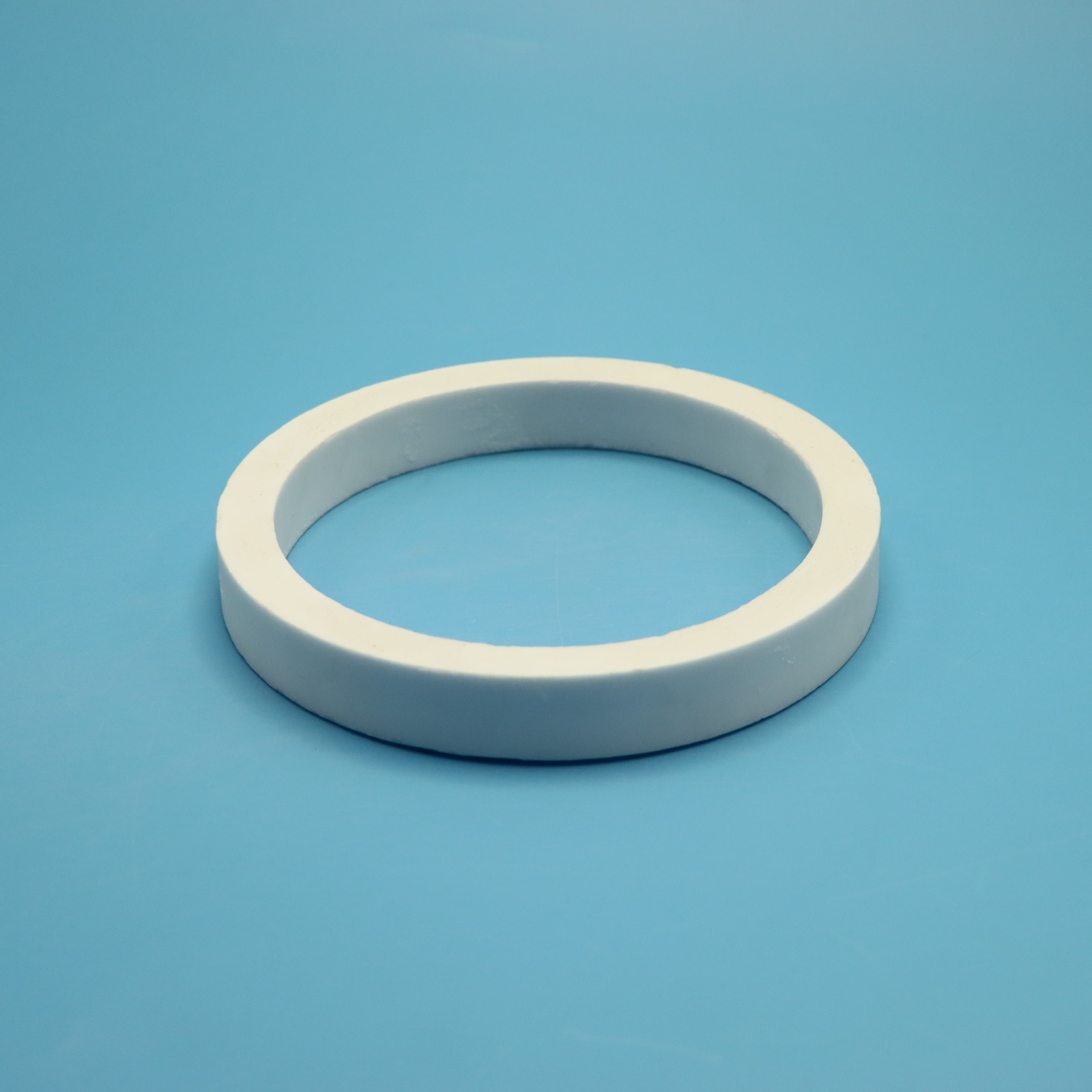

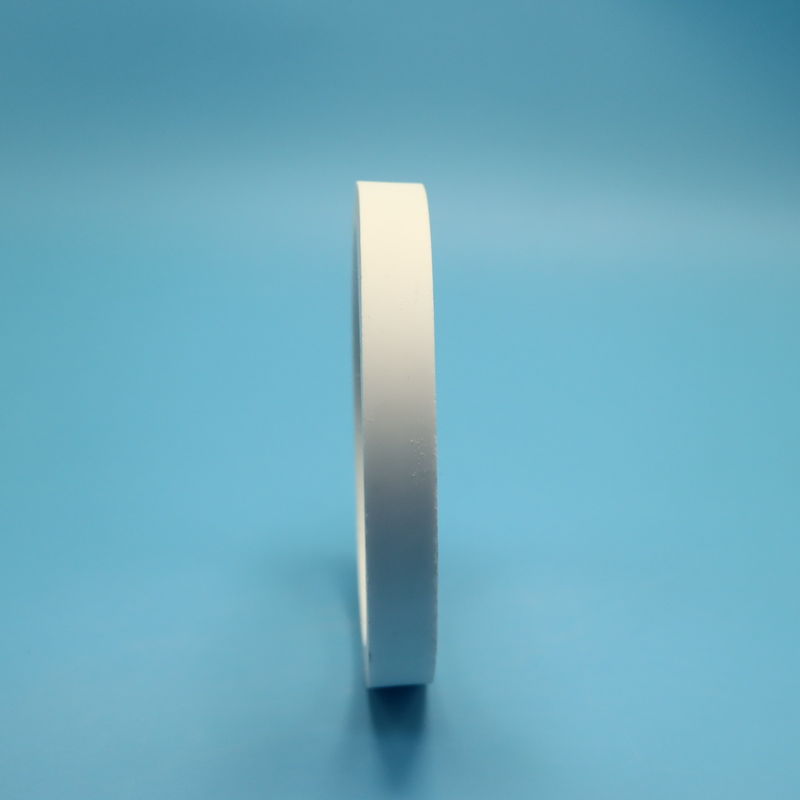

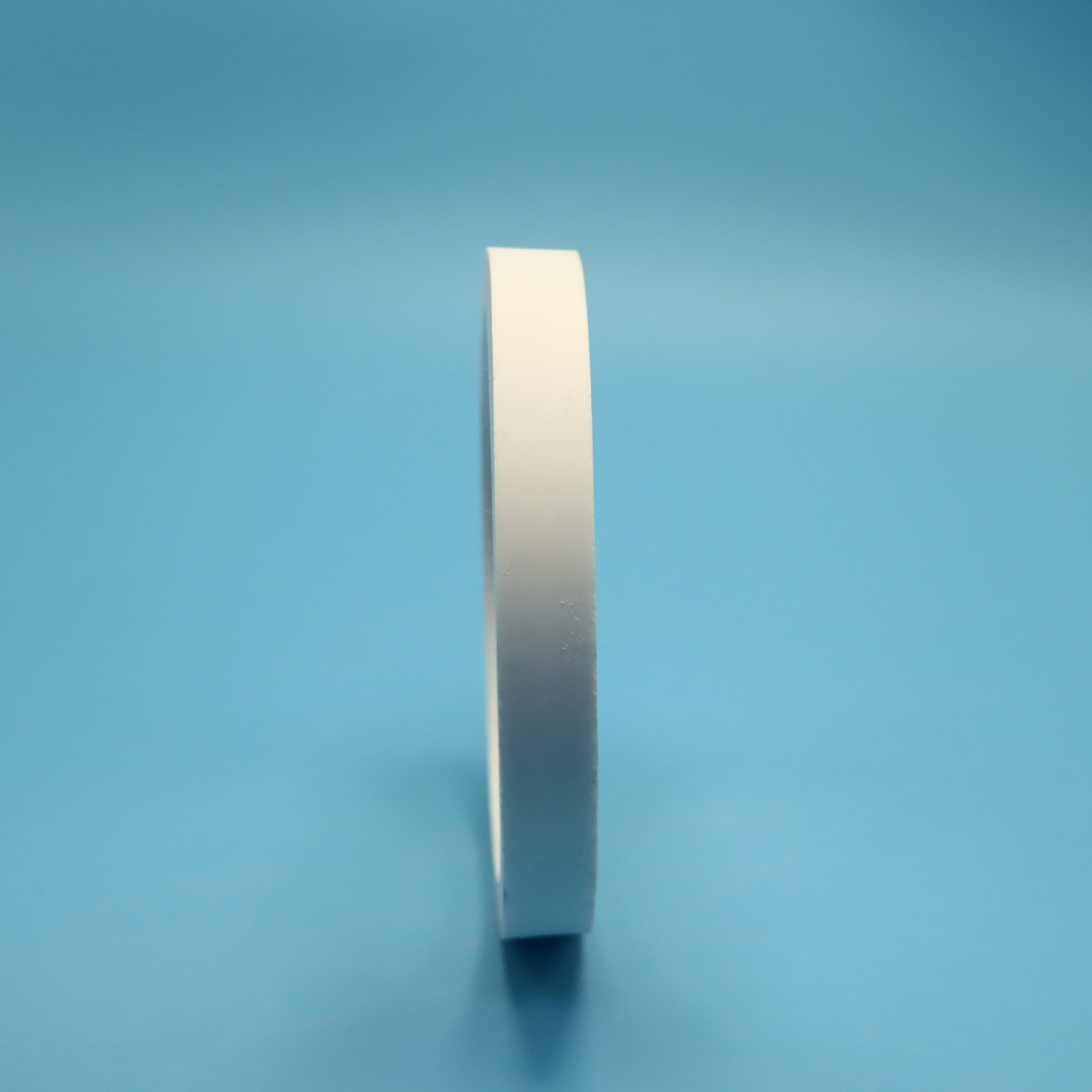

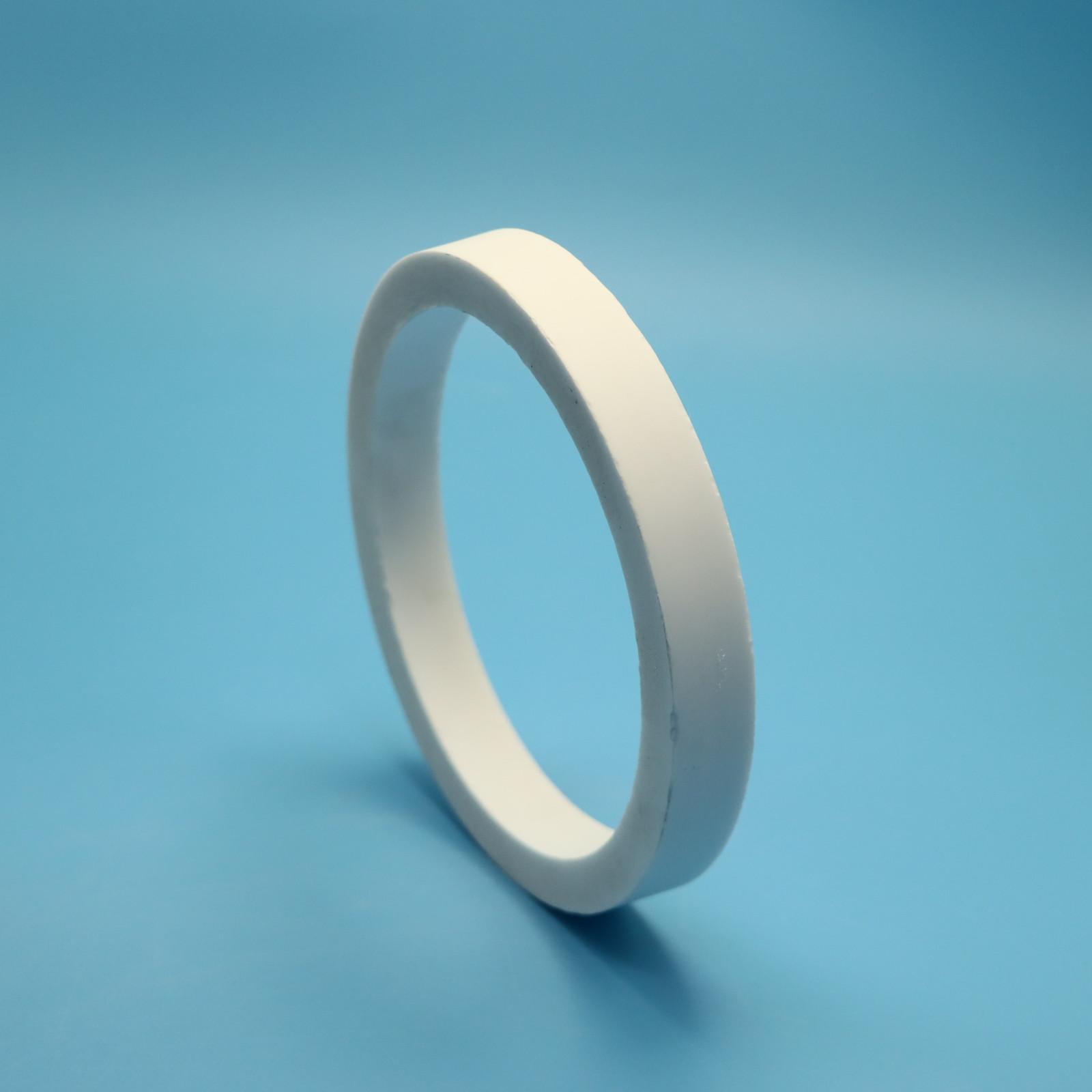

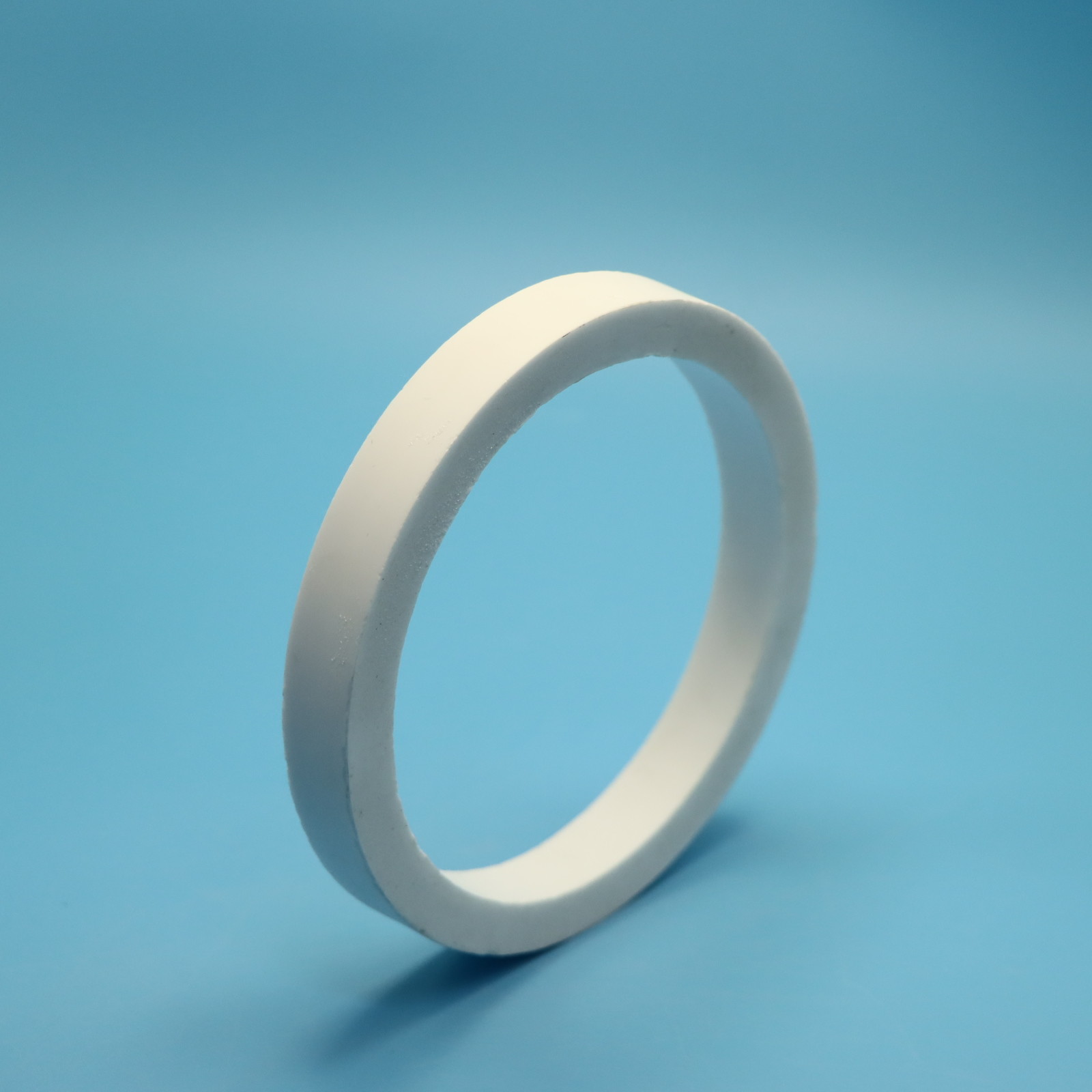

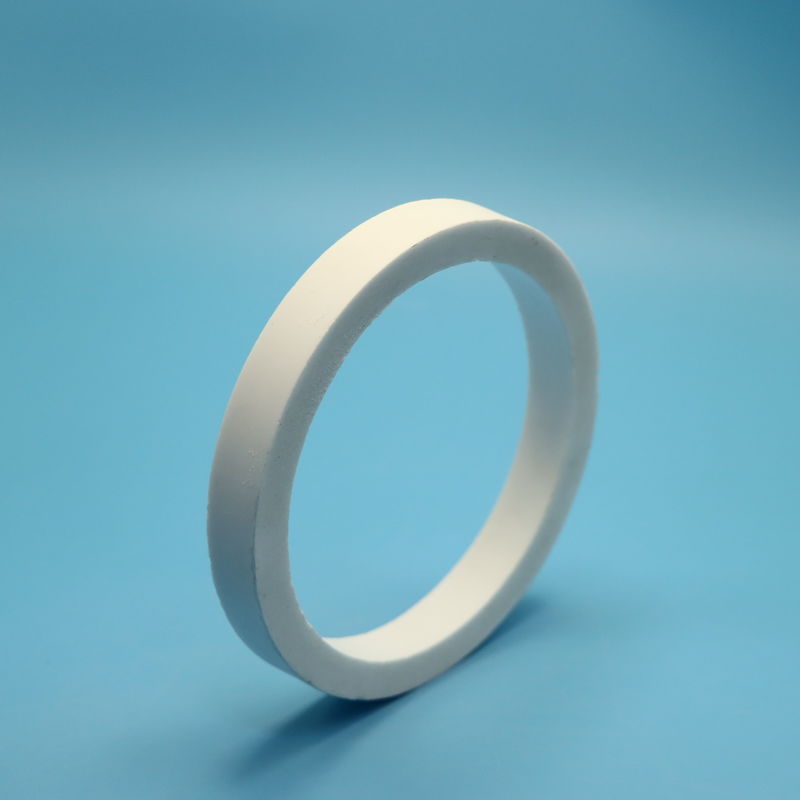

Alumina ceramic ring
Advantages of alumina ceramics:
1. Aluminum oxide ceramics have excellent properties that are non combustible, rust resistant, sturdy, and not easily damaged compared to other organic and metal materials.
2. Aluminum oxide ceramics have wear resistance, but their hardness is the same as that of corundum, and their wear resistance can reach Mohs hardness level nine, which is comparable to that of superhard alloys.
Performance of alumina ceramics:
1. Lightweight
The density of alumina ceramic materials is 3.7~3.95g/cm °, which is only half of that of steel and can greatly reduce equipment load.
2. Wide applicability
Aluminum oxide ceramics are widely used in fields such as machinery, fiber optics, cutting tools, medical, food, chemical, aerospace, etc.
products index:
| Ceramic characteristic table | |||
| name | 99% AL2O3 | 95% AL2O3 | |
| physical propertyessential component | essential component | AL2O3≥99% | AL2O3≥95% |
| Density(g/cm3) | 3.85 | 3.6 | |
| water absorption% | 0 | 0 | |
| sintering temperature | 1690 | 1670 | |
| material characters | Hardness(HV) | 1700 | 1600 |
| break off strength | >6500 | >2900 | |
| compressive strength | 30000 | 25000 | |
| thermal response | maximum service tempera- ture | 1500 | 1400 |
| thermal expansion coefficient | 8 | 7.8 | |
| 10-6/℃ | |||
| 0-1000℃ | |||
| Heat shock resistance T(℃) | 200 | 220 | |
| thermal conductivity W/m.k | 31 | 22 | |
| electrical specification | volume resistivity Ω.cm | >1012 | >1012 |
| Insulation destructive power KT/m | 18 | 16 | |
| dielectric constant 1MHZ(E) | 9.2-10.5 | 9.0-10 | |
