| Place of Origin: | China Yixing |
|---|---|
| Brand Name: | HY |
| Certification: | CE |
| Model Number: | HY-TCJHQ-02 |
| Minimum Order Quantity: | 10 pieces |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| AL2O3: | ≥ 95% | Product Name: | Ceramic Insulated Oil Fume Purifier |
|---|---|---|---|
| Color: | White | Density: | 3.85g/cm³ |
| Sintering Temperature: | 1650℃ | Hardness （HV): | 1700 |

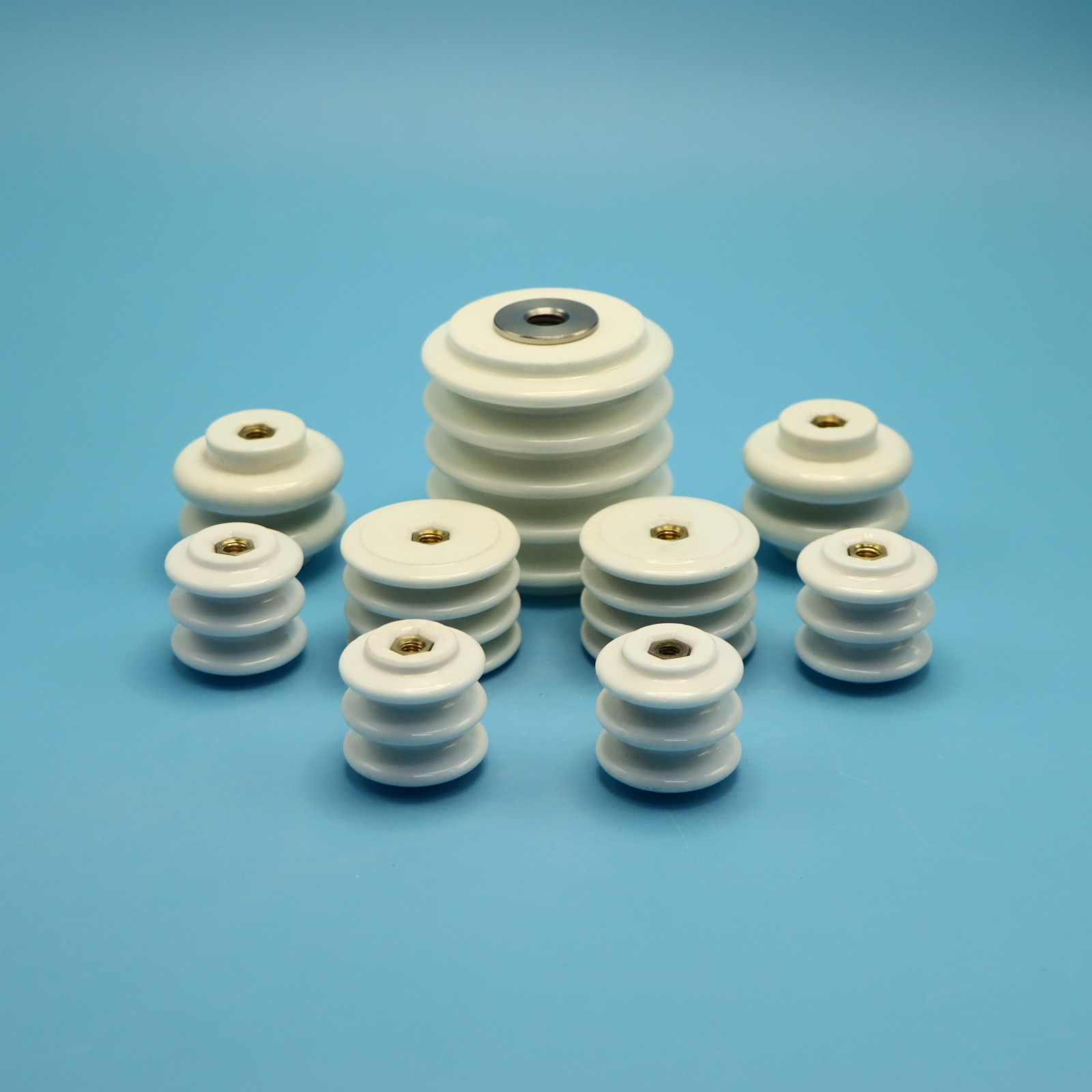

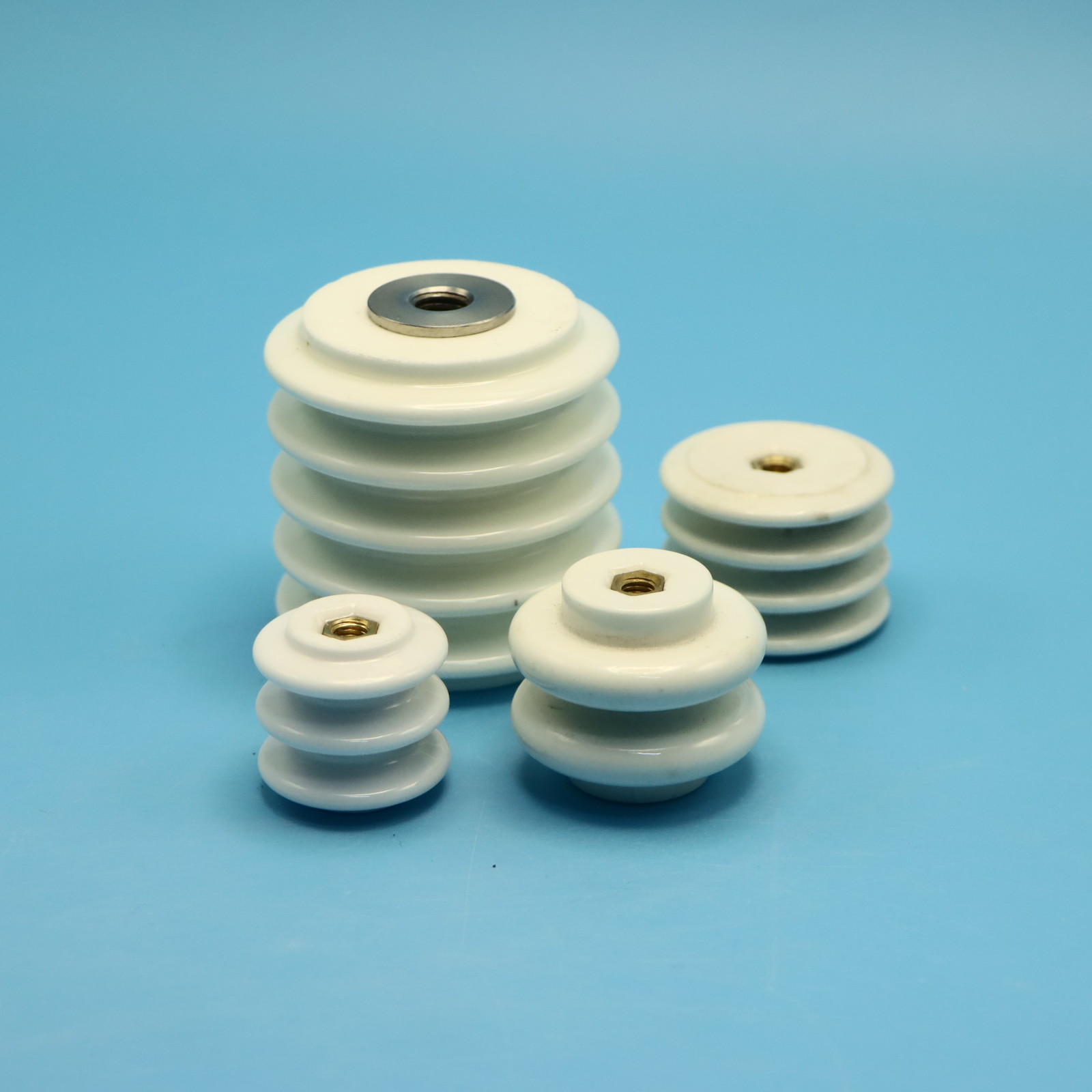

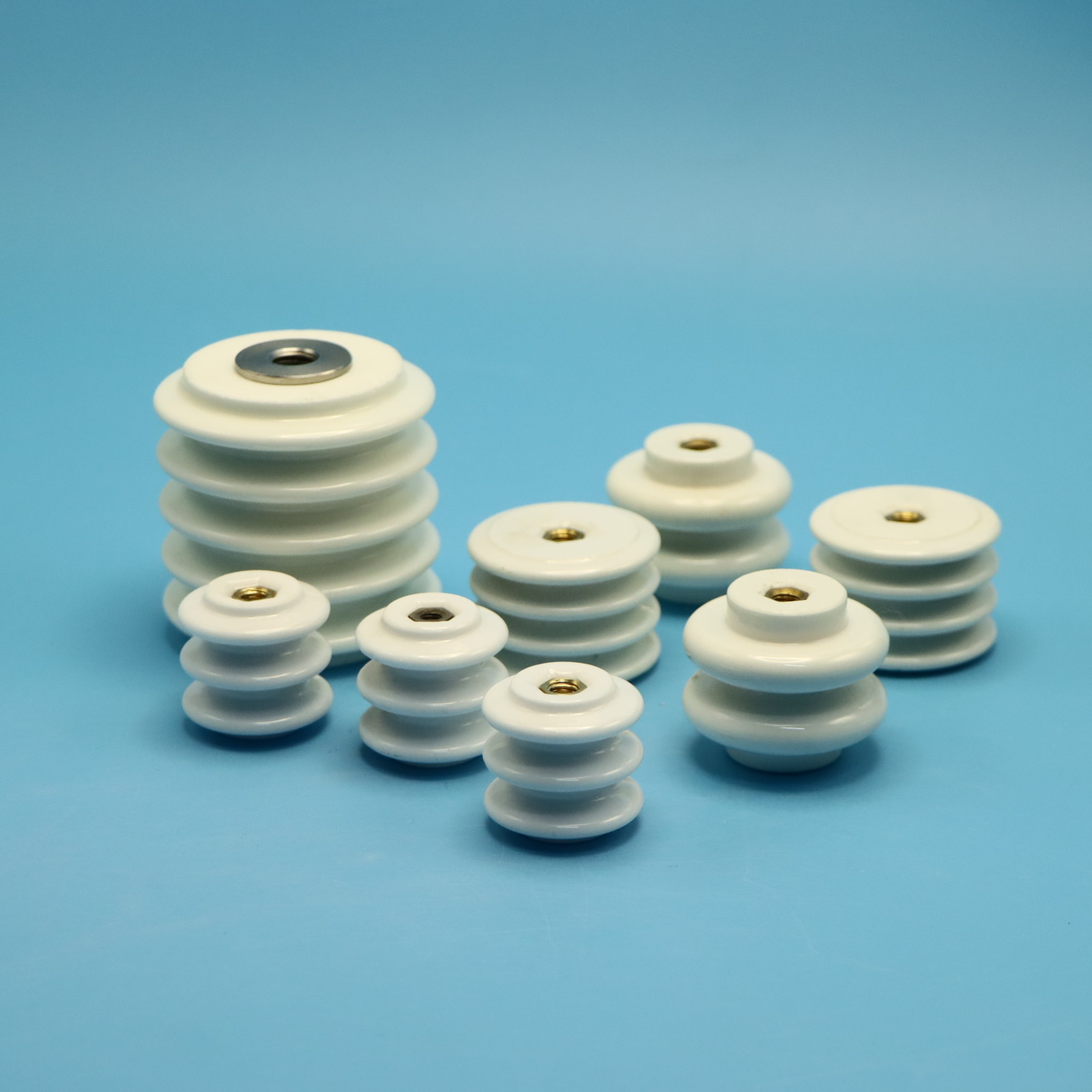

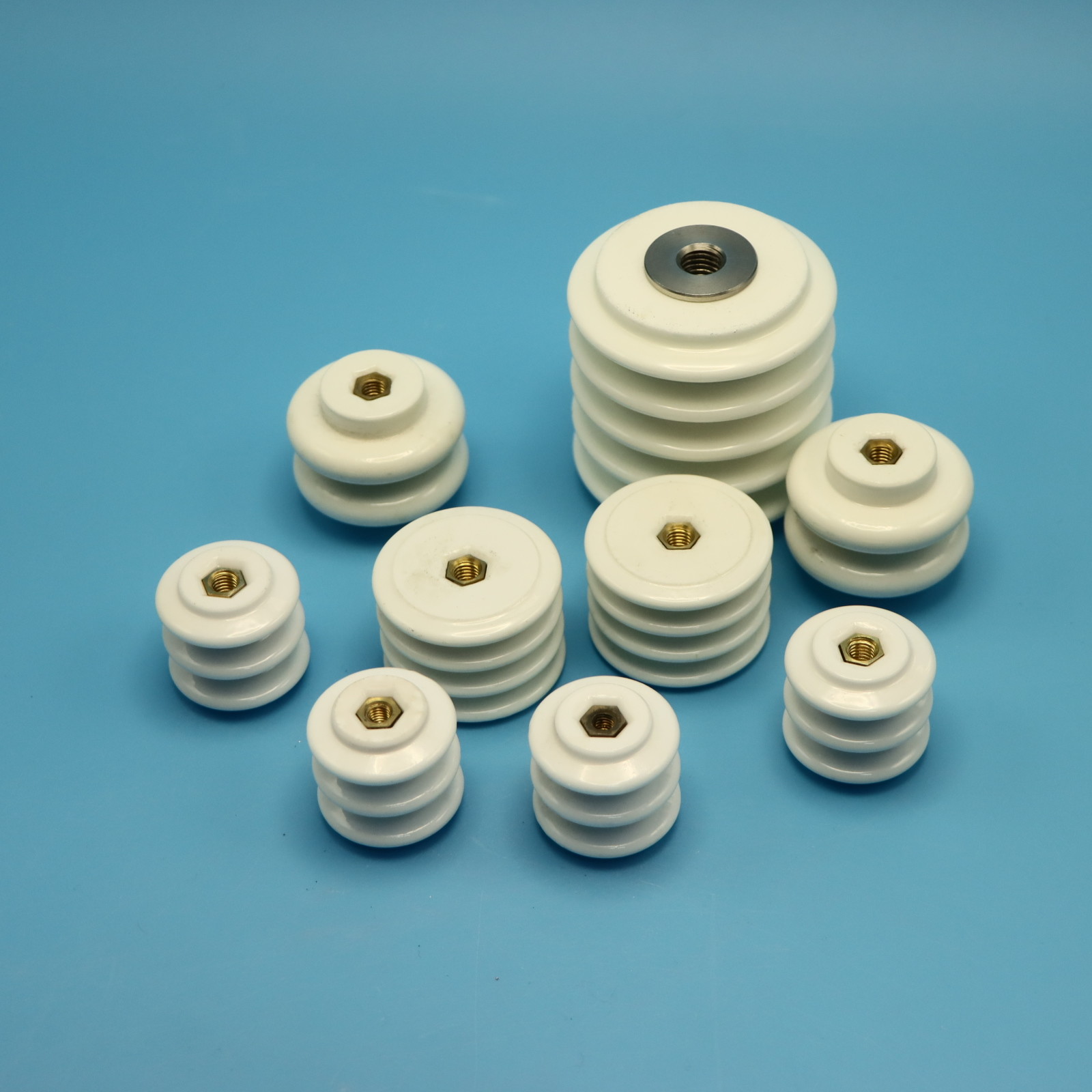

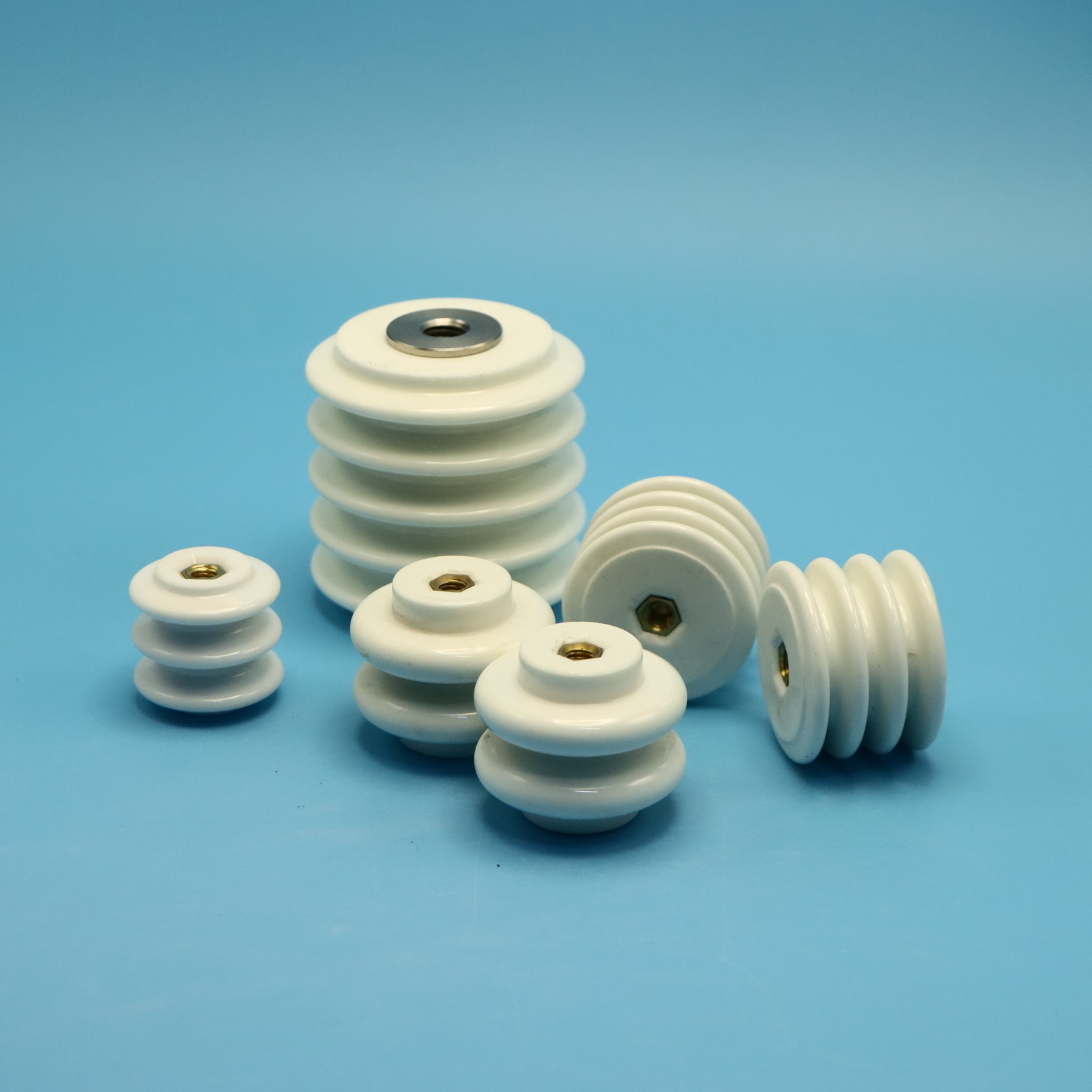

Ceramic insulation products electric ceramic oil diffuser ceramic oil diffuserceramic air purifier
Aluminum oxide ceramic (Al203) is a highly wear-resistant precision ceramic material widely used in various industries. The main molding methods for alumina ceramic products include dry pressing, isostatic pressing, injection molding, and casting. Different product shapes, sizes, complex shapes, and precision require different molding methods. Aluminum oxide ceramic products that have undergone high-temperature sintering can only be processed using diamond grinding technology. The common purity of alumina ceramics is 90% -99.9%.
Advantages of alumina ceramics:
1. Aluminum oxide ceramics have excellent insulation properties, with relatively low high-frequency losses but good high-frequency insulation properties;
2. Aluminum oxide ceramics have the characteristics of heat resistance, low coefficient of thermal expansion, high mechanical strength, and good thermal conductivity.
3. Aluminum oxide ceramics have characteristics such as chemical corrosion resistance and molten metal properties.
Performance of alumina ceramics:
1. High hardness
After measurement, the Rockwell hardness of alumina is HRA80-90, which is only second to diamond and far exceeds the wear resistance of wear-resistant steel and stainless steel.
2. Excellent wear resistance
Aluminum oxide ceramic material has been tested by the Powder Metallurgy Research Institute of Central South University of Technology, and its wear resistance is 266 times that of manganese steel and 171.5 times that of high chromium cast iron. According to our customer tracking survey over the past decade, it can extend the service life of the equipment by at least ten times under the same working conditions.
Performance of alumina ceramics:
1. High hardness
After measurement, the Rockwell hardness of alumina is HRA80-90, which is only second to diamond and far exceeds the wear resistance of wear-resistant steel and stainless steel.
2. Excellent wear resistance
Aluminum oxide ceramic material has been tested by the Powder Metallurgy Research Institute of Central South University of Technology, and its wear resistance is 266 times that of manganese steel and 171.5 times that of high chromium cast iron. According to our customer tracking survey over the past decade, it can extend the service life of the equipment by at least ten times under the same working conditions
products index:
| Ceramic characteristic table | |||
| name | 99% AL2O3 | 95% AL2O3 | |
| physical propertyessential component | essential component | AL2O3≥99% | AL2O3≥95% |
| Density(g/cm3) | 3.85 | 3.6 | |
| water absorption% | 0 | 0 | |
| sintering temperature | 1690 | 1670 | |
| material characters | Hardness(HV) | 1700 | 1600 |
| break off strength | >6500 | >2900 | |
| compressive strength | 30000 | 25000 | |
| thermal response | maximum service tempera- ture | 1500 | 1400 |
| thermal expansion coefficient | 8 | 7.8 | |
| 10-6/℃ | |||
| 0-1000℃ | |||
| Heat shock resistance T(℃) | 200 | 220 | |
| thermal conductivity W/m.k | 31 | 22 | |
| electrical specification | volume resistivity Ω.cm | >1012 | >1012 |
| Insulation destructive power KT/m | 18 | 16 | |
| dielectric constant 1MHZ(E) | 9.2-10.5 | 9.0-10 | |
Company workshop equipment:
ceramic oil fume purifier
