| Place of Origin: | China Yixing |
|---|---|
| Brand Name: | HY |
| Certification: | CE |
| Model Number: | HY-YHG-02 |
| Minimum Order Quantity: | 10 pieces |
| Price: | Negotiation |
| Packaging Details: | strong wooden box for global shipping |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 10000 pcs per month |
| Density: | 5.95-6.00 | Density: | 5.9 |
|---|---|---|---|
| Size: | Customization | Component Content: | ZrO2 ≥ 95% |
| Hardness: | 1400 HV | Max Use Temperature: | 1600℃ |
| Color: | Yellow | ||
| High Light: | 95% Zirconia Ceramic Parts,ZrO2 Zirconia Ceramic Parts,95% zirconia ceramic tube |
||

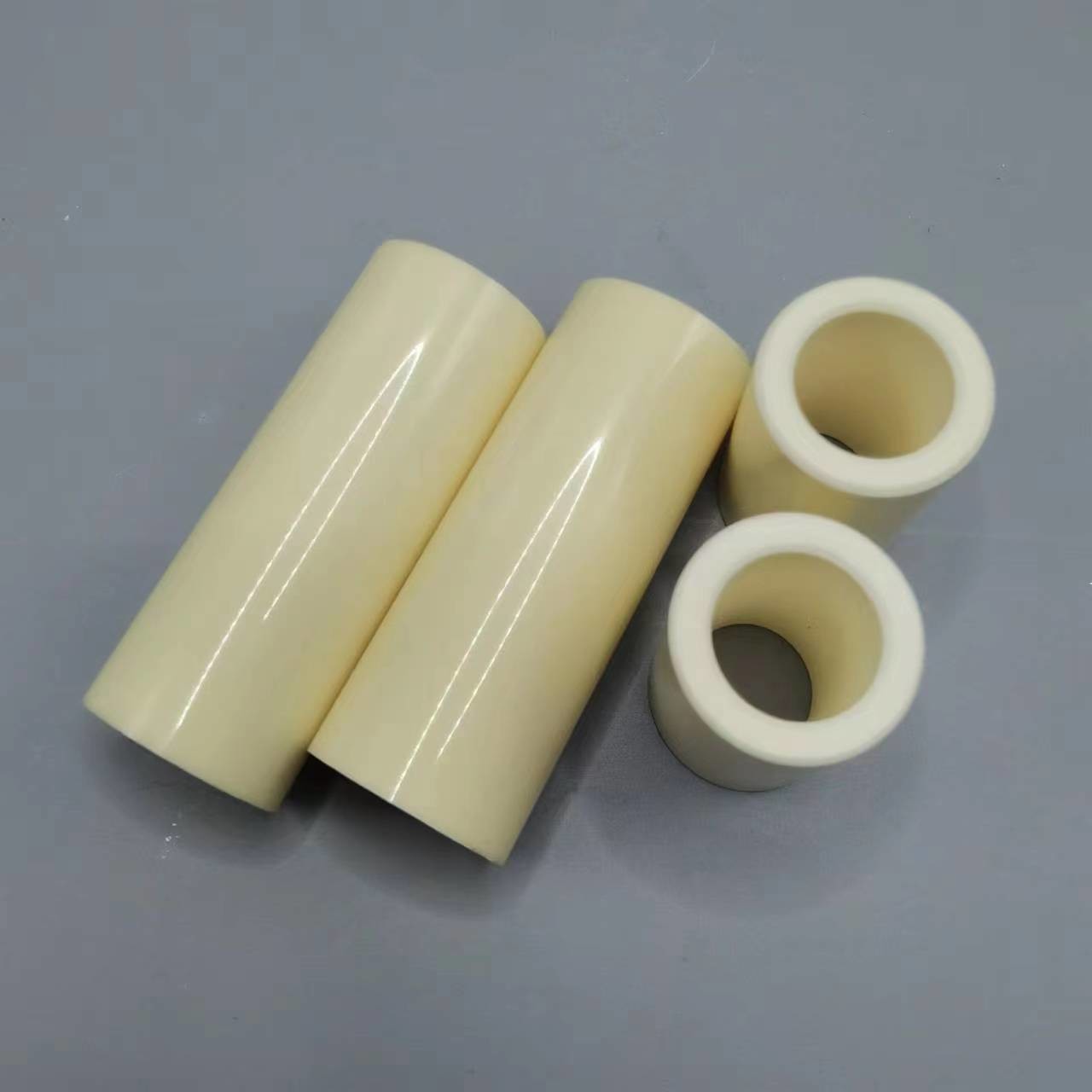

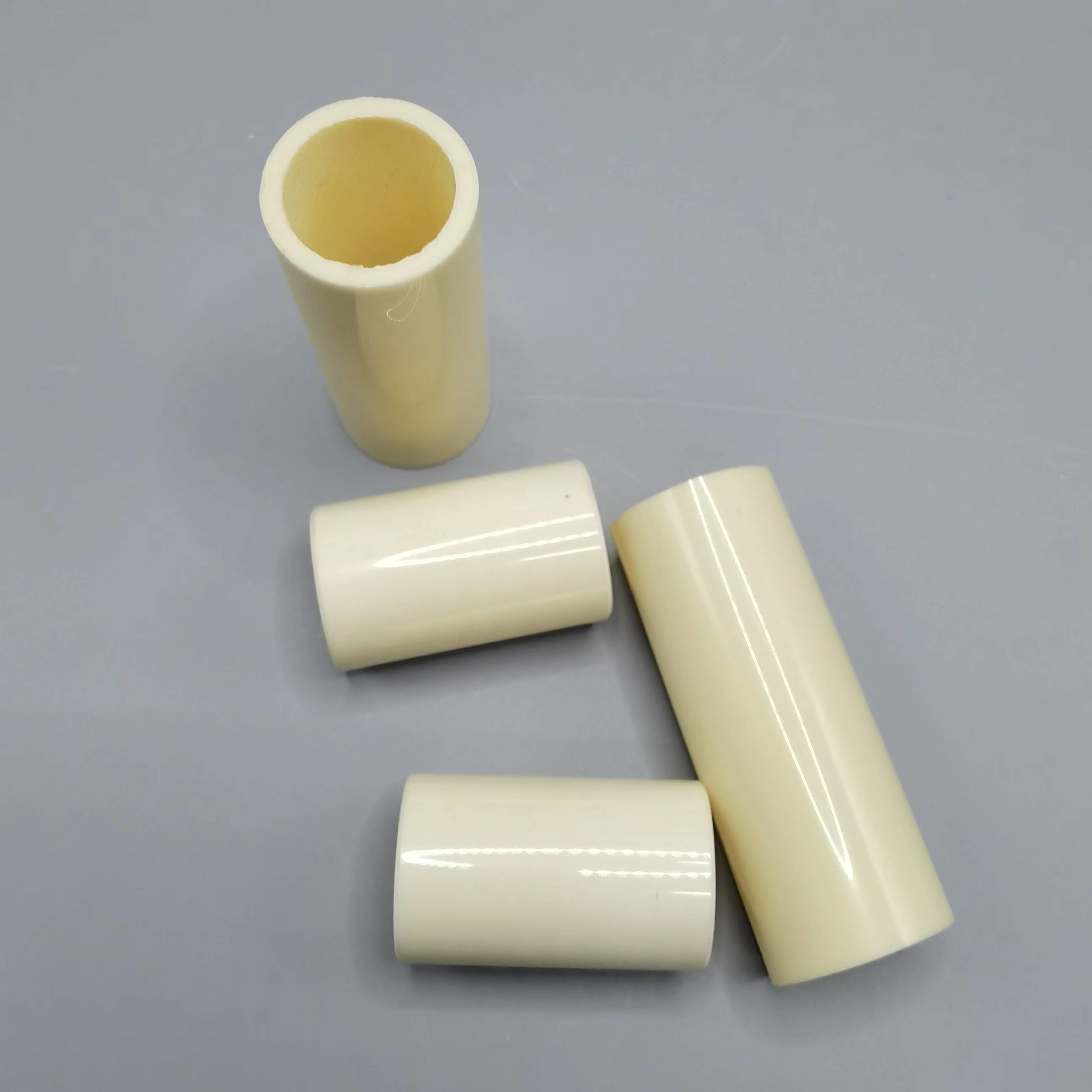

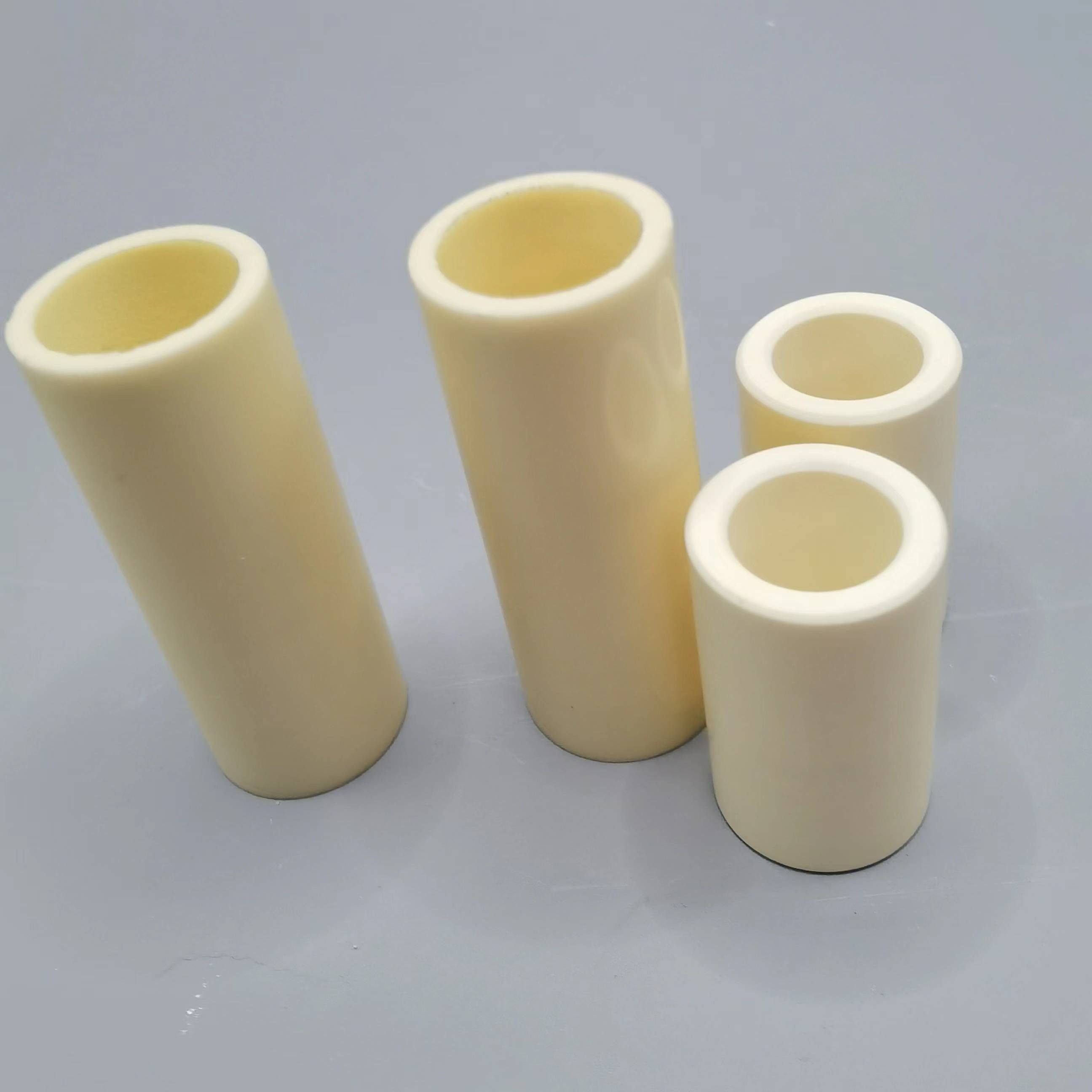

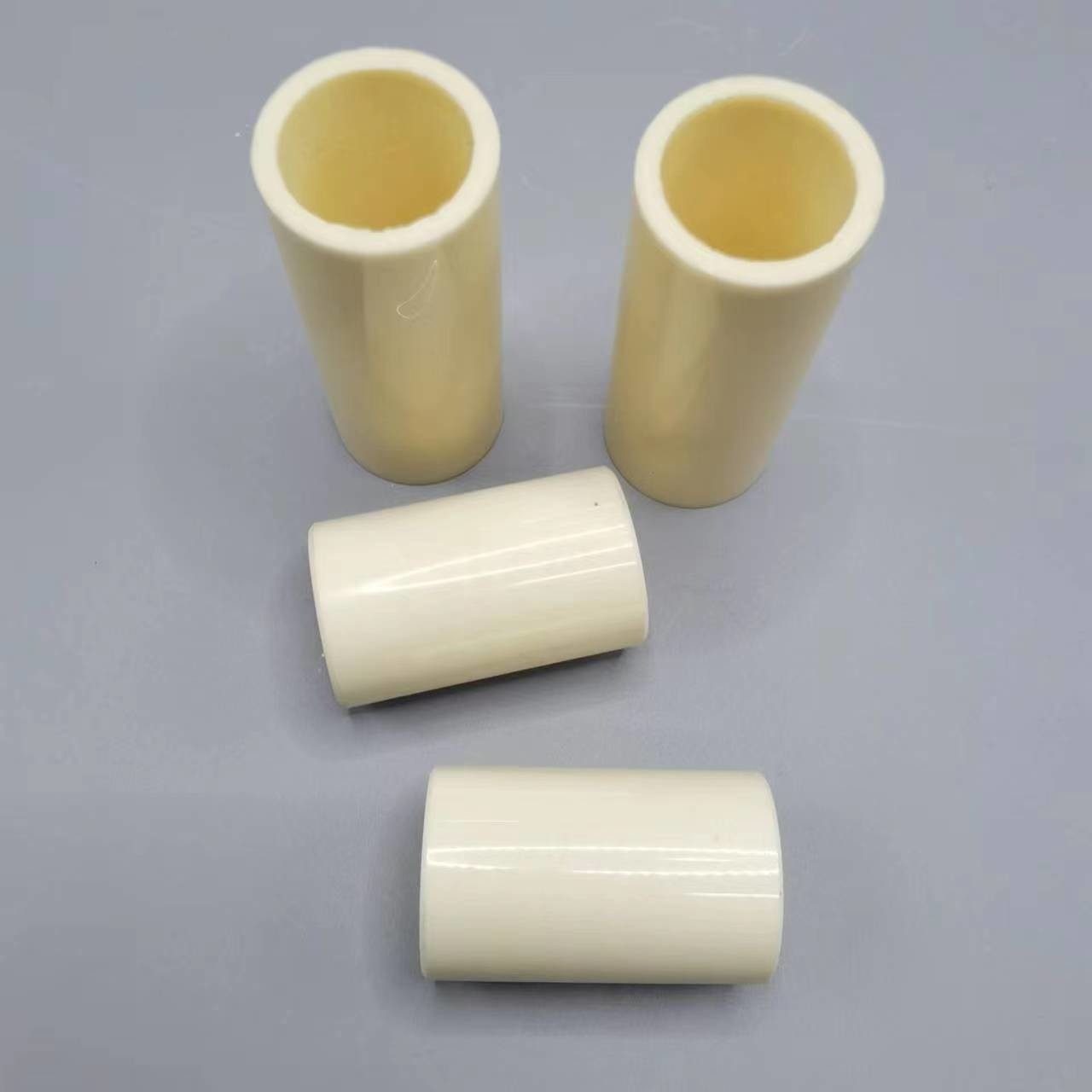

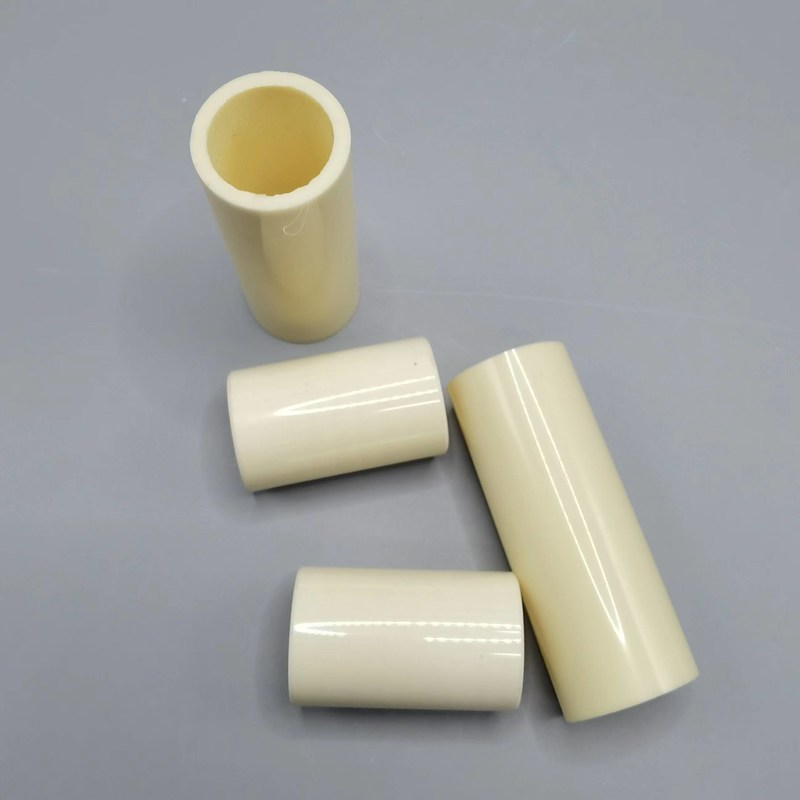

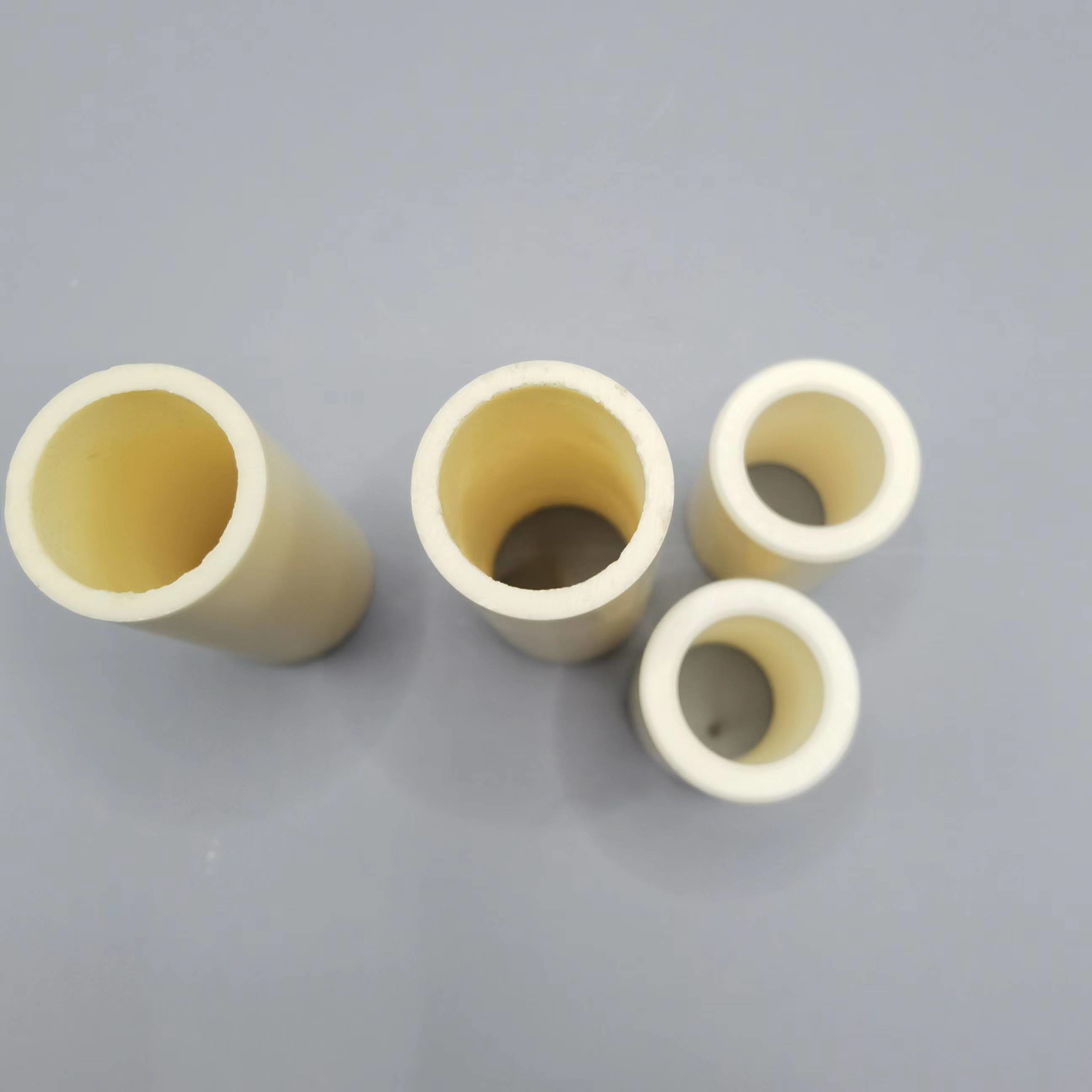

Zirconia ceramic tube car parts laser semiconductor insulation long use life
product name:Zirconia ceramic tube
model:HY-YH02
Product description:
As the most important material in advanced ceramics, zirconia ceramic material is a very important basic material for the development of modern high-tech industry. Zirconia is widely used and has a broad market. The specific applications include solid fuel batteries, automobile exhaust treatment, dental materials, ceramic cutting tools, and zirconia ceramic optical fiber inserts. Zirconia ceramics have high hardness, high wear resistance, good high temperature thermal stability and thermal shock resistance. With the development of zirconia ceramics, its application field has expanded from the field of refractory materials in the past to the field of structural ceramics, bioceramics and electronic functional ceramics. It also has active applications in high-tech fields such as aerospace and nuclear industry. ZrO2 porous ceramics not only have the characteristics of high melting point, high hardness, low thermal conductivity, good thermal stability and small high temperature creep, but also have the characteristics of low density, high strength, high porosity, large specific surface area, strong self-interference to fluid and good filtration and adsorption. In addition, the martensitic transformation of ZrO2 can play a toughening effect of phase transformation toughening, microcrack toughening and dispersion toughening, which can greatly improve the toughness and strength of porous ceramics.
products index:
| Ceramic characteristic table | |||
| name | zirconium oxide ceramics | ||
| physical propertyessential component | essential component | ZrO2≥95% | |
| Density(g/cm3) | 3.85 | ||
| water absorption% | 0 | ||
| sintering temperature | 1690 | ||
| material characters | Hardness(HV) | 1700 | |
| break off strength | >6500 | ||
| compressive strength | 30000 | ||
| thermal response | maximum service tempera- ture | 1500 | |
| thermal expansion coefficient | 8 | ||
| 10-6/℃ | |||
| 0-1000℃ | |||
| Heat shock resistance T(℃) | 200 | ||
| thermal conductivity W/m.k | 31 | ||
| electrical specification | volume resistivity Ω.cm | >1012 | |
| Insulation destructive power KT/m | 18 | ||
| dielectric constant 1MHZ(E) | 9.2-10.5 | ||
Product application field:
