Detail Information

Purity Grade:	99%+ High Purity H-BN	Structure:	One-piece Threaded Structure, Easy Installation
Heat Resistance:	No Cracking Or Deformation Under High Heat	Safety:	High Voltage Insulation, Non-conductive
Surface Property:	Self-lubricating, Anti-metal Adhesion	Thread Accuracy:	Standard Metric Thread, Wear-resistant & Tight Fit
Durability:	Thermal Shock Resistant, Long Service Life	Processing:	Custom Size & Special Shape Available
Application:	Vacuum Furnace, Welding Jig, Semiconductor	Service:	Fast Sampling, Stock Supply, Global Delivery

Product Description

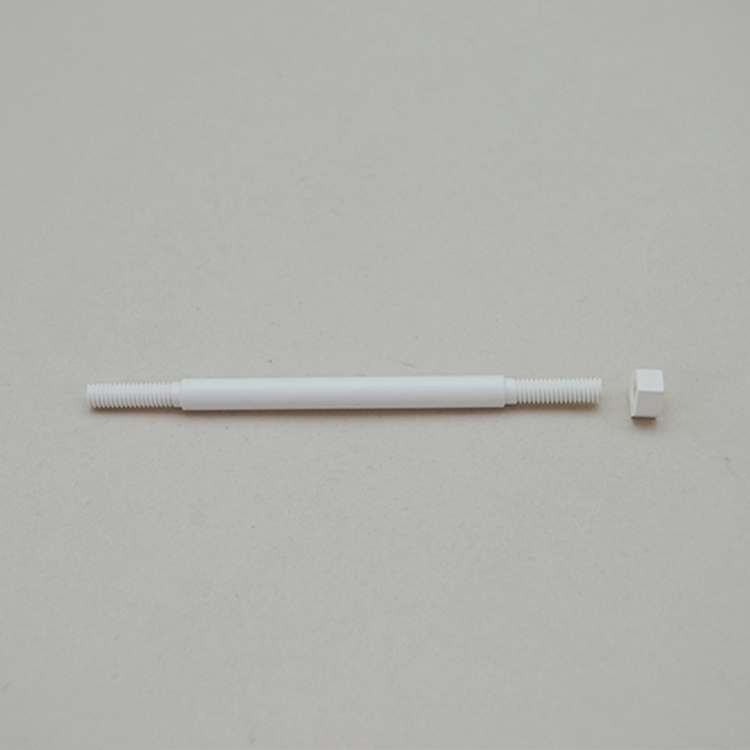

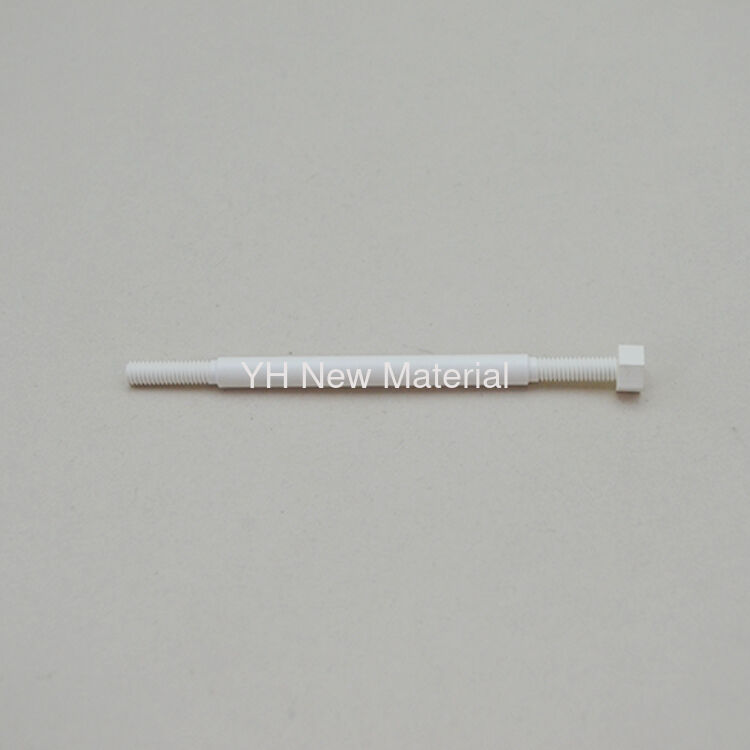

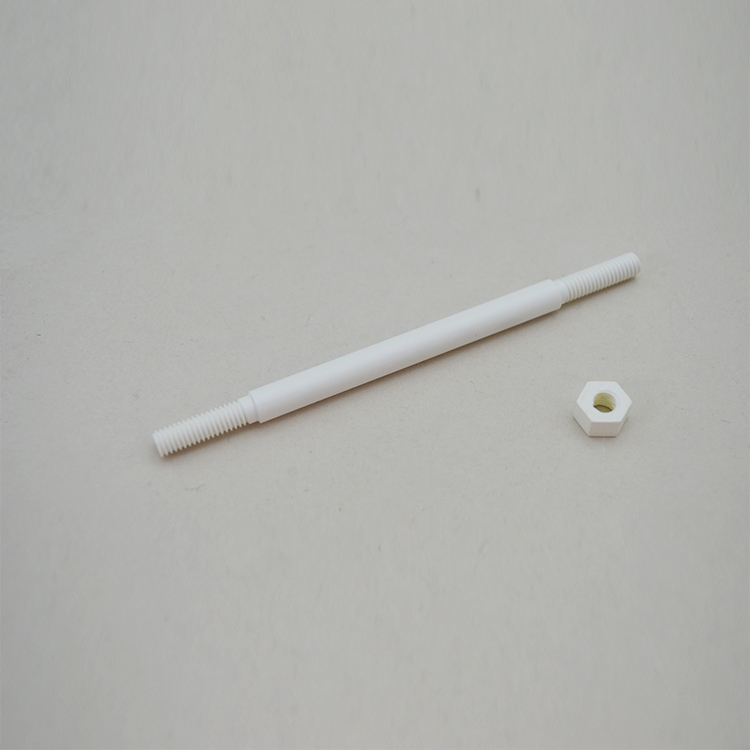

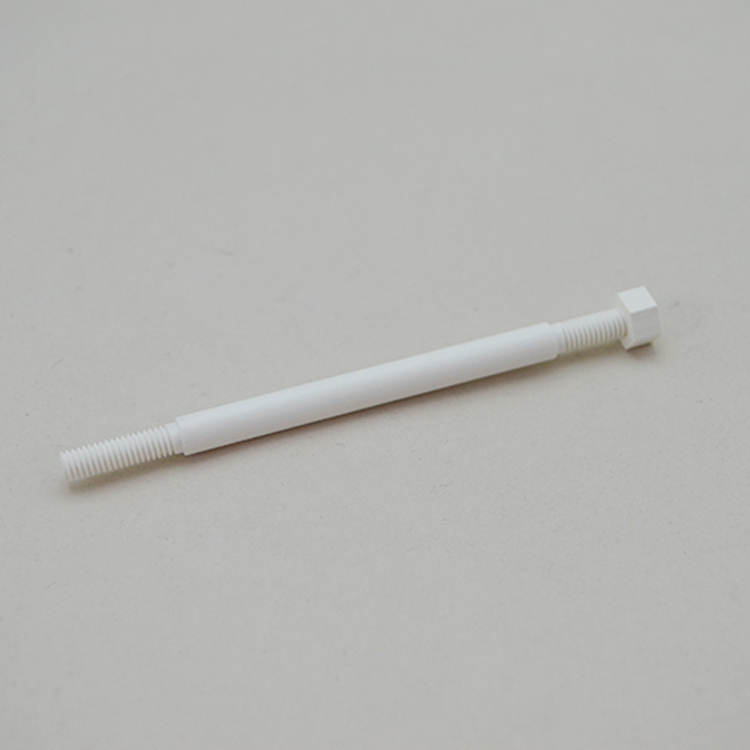

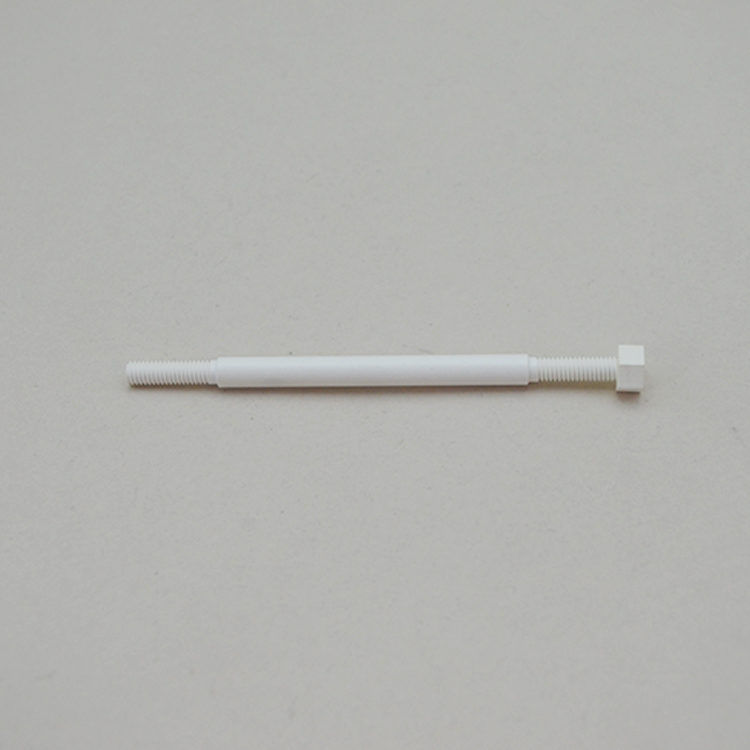

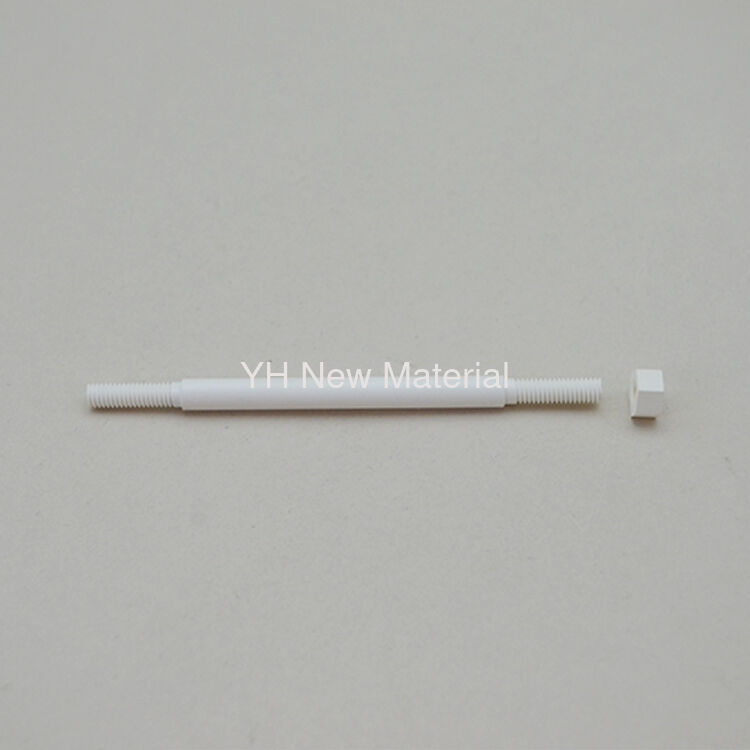

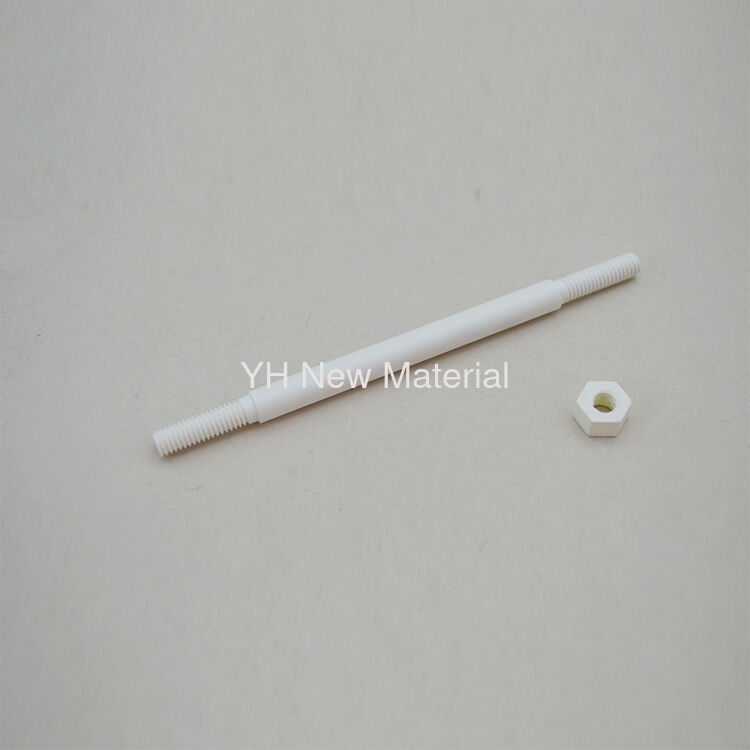

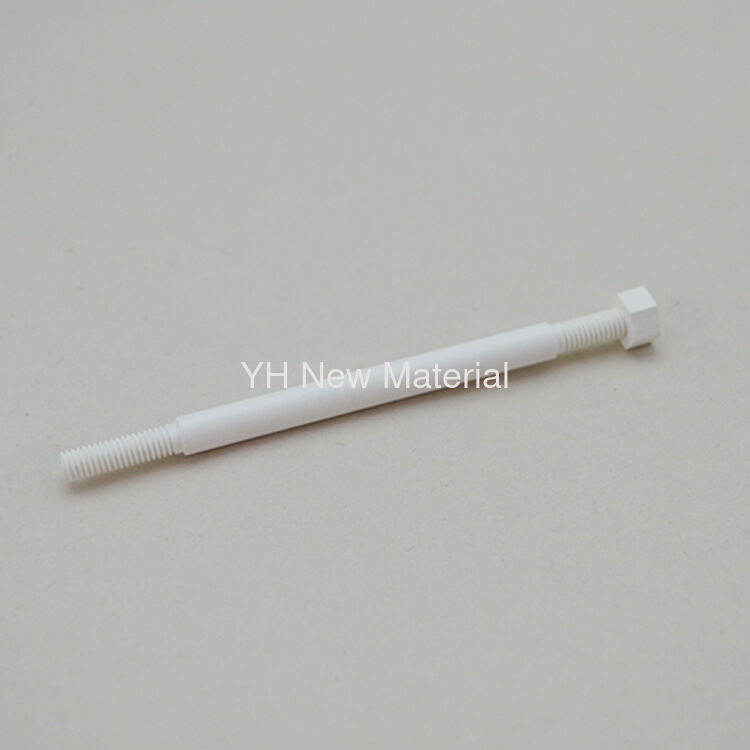

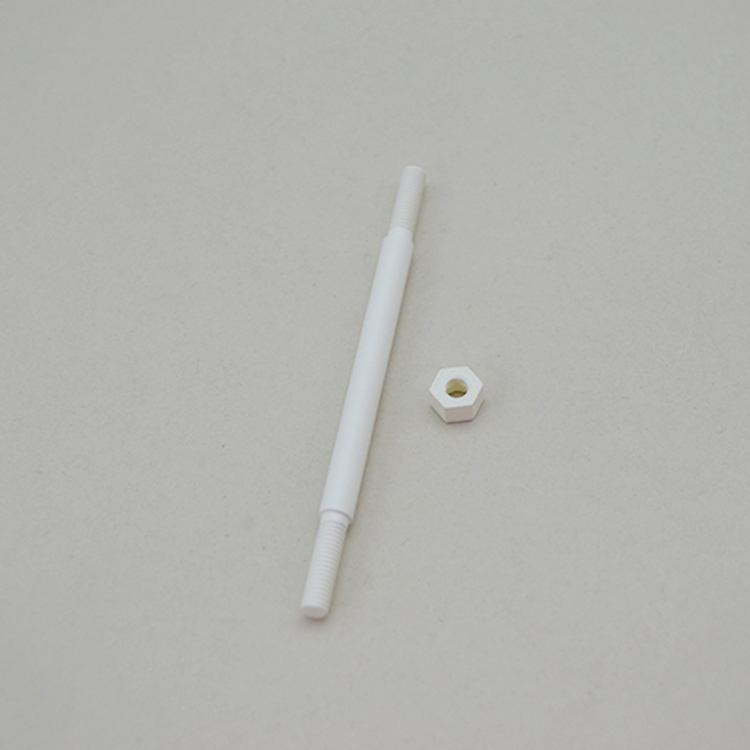

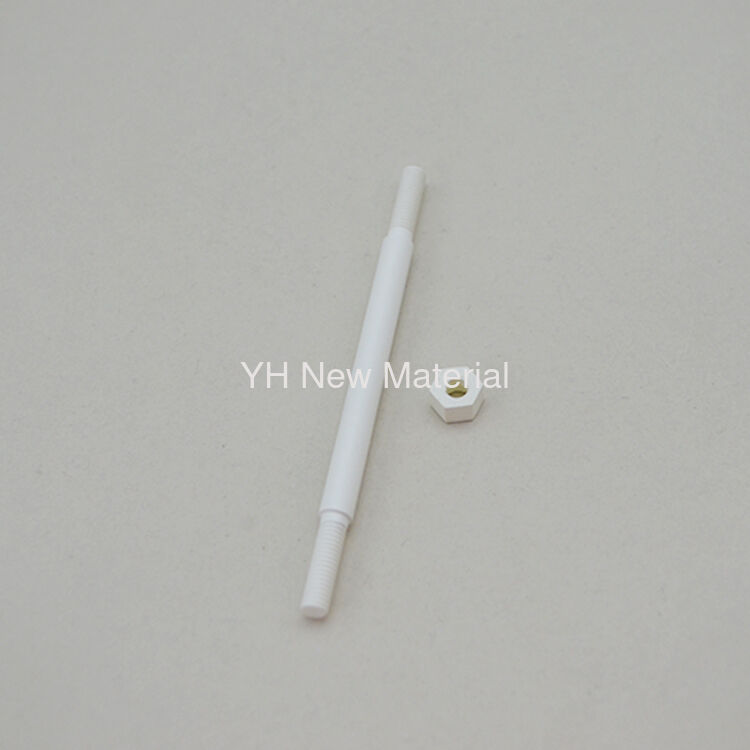

High Temperature Insulating High Purity Threaded BN Boron Nitride Ceramic Rod

Description

Product Overview

Threaded boron nitride ceramic rods are special ceramic structural parts made of high-purity hexagonal boron nitride through hot-press sintering and precision CNC turning. Different from ordinary alumina ceramics, BN materials feature ultra-high temperature resistance, perfect insulation, non-wetting to molten metal, self-lubricating property and excellent machinability. With integrally molded high-precision threads, the rods deliver smooth meshing performance without thread slipping or deformation under high temperatures. They are indispensable insulating positioning, fixing and supporting components for high-temperature vacuum equipment, semiconductor tooling, welding jigs and high-voltage precision devices.

Material	h-BN Ceramic
Product Type	Threaded ceramic rod / threaded positioning pin
Working Temperature	2000℃ 850℃ in air, 2000℃ in vacuum/inert atmosphere
Insulation Performance	Ultra-high insulation, leakage-free, high-temperature insulation
Thread Specification	M3/M4/M5/M6/M8/M10
Size Range	5mm–300mm Diameter 3mm–30mm, Length 5mm–300mm
Core Features	High temperature resistance, non-conductive, non-stick metal, easy machining, high strength
Production Process	Hot-press sintering, precision turning, one-piece threaded molding
Application Industries	High-temperature equipment, semiconductor, vacuum furnace, new energy, precision instruments, welding fixture
Supply Capacity	Standard stock + custom service, test reports available

Application
Threaded boron nitride ceramic rods are widely applied in high-temperature, high-voltage, insulating and anti-stick industrial scenarios: vacuum furnace insulating support columns, semiconductor equipment positioning ceramic pins, anti-stick ceramic threaded pillars for welding jigs, high-voltage insulating fasteners for new energy equipment, high-temperature support pillars for precision laboratory instruments, laser device insulating parts, metallurgical anti-stick structural components, and aerospace high-temperature insulating assemblies.

Mechanical Properties

 Item

 Unit

 Data

Main Content

 %

 99.9

Bulk Density

 g/cm3

 1.95-2.0

Compression Strength

 MPa

 100

Flexural Strength

 MPa

 30

Electrical Resistivity

 Ohm.cm

 >1014

Thermal Conductivity

 W/MK

 20

Expansion Coefficient

 10-6 K (20-1000°C)

 1.5

Max. Work Temperature

 °C(air)

 900

 °C (inert gas)

 2400

 °C (vacuum)

 2000

Various Types of BN Ceramic

We Can Do OEM and 0BM According to Your Drawing and Requirements.

High Purity Threaded BN Boron Nitride Ceramic Rod 3

High Purity Threaded BN Boron Nitride Ceramic Rod 4

Boron Nitride Machining
Hexagonal boron nitride can be machined into highly complex geometries with very tight tolerances.
Precision Ceramics has 3, 4 and 5 axis CNC machining capabilities and over 20 years of experience
creating custom boron nitride components.
Precision Ceramics is your Boron Nitride machining specialist for your technical ceramic prototyping &
manufacturing needs; we are always happy to use our many years of advanced ceramics experience
to provide advice on materials, design, and application. If you would like to buy Boron Nitride plates,
bars, rods, tubes, Aerosol Sprays, Paintable Coatings, Industrial Powders, or custom machined parts,
please contact us and one of our experts will be happy to assist you.

High Purity Threaded BN Boron Nitride Ceramic Rod 6

FAQ

Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramic
