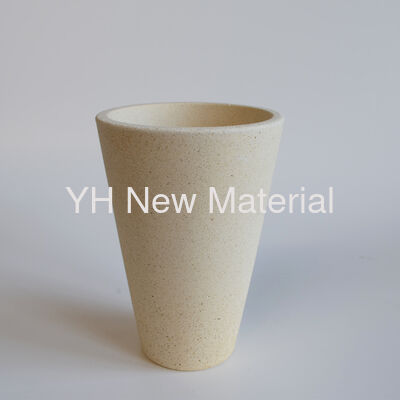

Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay

Name: Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay
Brand: Hunan Yuanhong New Materials Co.,Ltd
SKU: YH
Availability: InStock

$Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay$

Basic Information

Place of Origin:	CHINA
Brand Name:	YH
Certification:	ISO,CE
Model Number:	YH

Minimum Order Quantity:	10
Price:	Negotiated
Packaging Details:	by caront or wooden case
Delivery Time:	10-30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000pcs per month

Get Best Price

Chat Now

Detail Information

Dielectric Strength:	15 KV/mm	Chemical Composition:	Al2O3 (Aluminum Oxide)
Color:	White Or Yellow	Electrical Insulation:	Excellent
Operating Temperature:	Up To 1700°C	Low Thermal Expansion:	Excellent
Biocompatibility:	Yes	Alumina Content:	95-99.7%
Flexural Strength:	300 To 400 MPa	Thermal Conductivity:	20 To 30 W/m·K
Machinability:	Difficult	Maximum Use Temperature:	1700c
Transparency:	Opaque	Surface Finish:	Polished
Highlight:	Fire Clay Melting Crucible , Refractory Material Fire Clay Crucible

Product Description

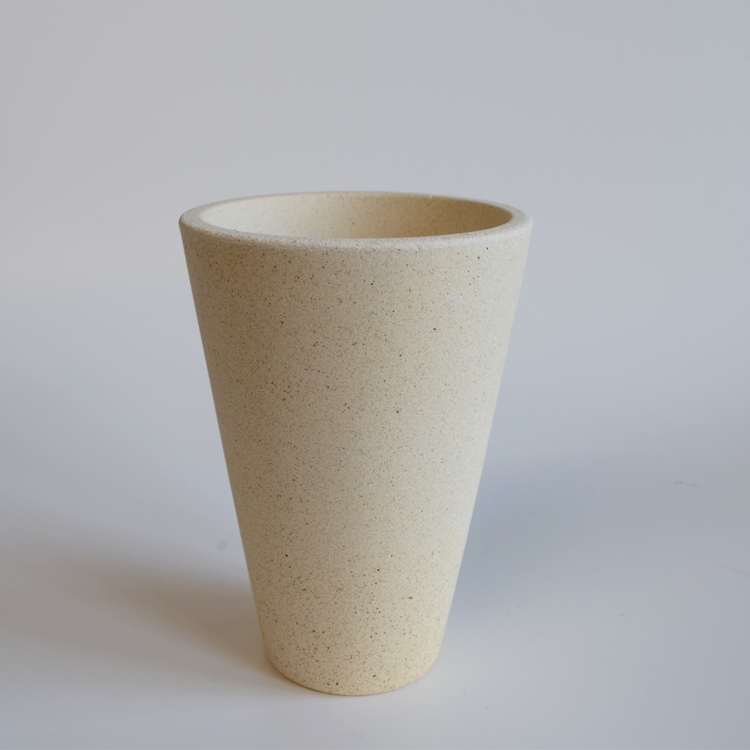

High Quality Fire Clay Melting Crucible for Laboratory Gold Assay

Agent Recruitment-Oriented (Global Expansion Focus)

As a top-tier manufacturer of Fire Assay Crucibles, we are dedicated to delivering premium-grade products tailored for mining, metallurgy, and precious metals analysis fields. Our crucibles stand out with exceptional thermal stability, strong corrosion resistance, and unparalleled analytical accuracy, all backed by advanced production technology and rigorous quality control systems. To further extend our global footprint and bring reliable assay solutions to more clients worldwide, we are actively seeking passionate agents and distributors. If you have rich experience in laboratory consumables, mining supplies, or analytical instruments, join our dynamic network and grow with a trusted partner in the fire assay industry!

Type: Refractory Material

Working Temperature:
≥ 1350ºC(Fire assay working temperature less than 1150ºC)
No cracking when moved from 1100°C furnace directly onto a room-temperature steel plate.
Chemical Corrosion Resistance:
Highly resistant to corrosive fluxes like litharge, borax, and silica, maintaining integrity during the critical initial 3-5 assay cycles.
Accuracy & Low Retention:
Made from high-quality clay, crucible ensures minimal retention of precious metals for easy recovery and accurate result.
Structural Stability:
Our fully automated production lines ensure consistent quality and stability in every batch.

$Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay 0$

Application of Clay Ceramic Fire Assay Crucible:

1.Precious Metal Analysis

2.Mining Laboratory

3.Laboratory Testing

4.Mineral Assaying

5.Fire Assaying

6.Gold Assaying

$Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay 1$

Mechanical Properties

Fire Assay Crucible:standard size

Item	OD (mm)	Height (mm)	Capacity (ml)	Wooden Case Dimension (mm)	Qty/Case (pc)	Qty/20’FCL (pc)
XTL-30g	85	105	250	107010701080	2310	46200
XTL-40g	85	135	350	111010701080	1980	39600
XTL-45g	88	160	500	108011701080	1296	25920
XTL-50g	105	150	700	114010301120	1530	30600
XTL-55g	90	155	680	114010301120	1296	25920
XTL-65g	105	165	720	114010301120	1425	28500
XTL-75g	120	160	750	108011701080	900	18000

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Material Properties

Chemical Composition
SiO2	54.6%
Al2O3	40.31%
Fe2O3	1.11%
TiO2	0.47%
CaO	1.28%
MgO	0.34%
K2O	0.61%
Na2O	0.39%
L.O.I(loss on ignition)	0.21%

Features of alumina ceramic

Our Technical Expertise: The Reason to Choose Us
Advantage:


Withstands temperatures above 1600°C without cracking or deformation

Precise dimensional control ensures consistent casting processes

Low thermal expansion reduces stress during metal pouringAutomated production ensures uniform quality batch-to-batch

No harmful emissions, meets environmental standards

$Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay 2$

$Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay 3$

$Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay 4$

Exhibition

$Refractory Material Fire Clay Melting Crucible For Laboratory Gold Assay 5$

FAQ

Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
