| Place of Origin: | China Yixing |
|---|---|
| Brand Name: | HY |
| Certification: | CE |
| Model Number: | HY-DHT |
| Minimum Order Quantity: | 10 pieces |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 100000 pcs per month |
| AL2O3: | ≥ 99% | Color: | White |
|---|---|---|---|
| Size: | Customization | Density: | 3.85g/cm³ |
| Hardness HV: | 1600 | Water Absorption: | 0 |
| Number Of Use: | 10000 | ||
| High Light: | 99% alumina ceramic products,alumina ceramic products AL2O3,White alumina 99 |
||
white ceramic ignition head gas ignition needle size can be customized engine ignition head
product name:Ceramic ignition needle
dimension:Accept customization
product introduction:
Alumina ceramic igniter is a kind of ceramic product used in electric burner igniter. Electric burners often use igniter to ignite. The igniter generally emits electric sparks through the igniter electrode, and the outer surface of the igniter electrode requires an insulated, high-temperature resistant and explosion-proof protective sleeve. Usually, ceramic igniter is used for protection.
products standard:
| Ceramic characteristic table | |||
| name | 99% AL2O3 | 95% AL2O3 | |
| physical propertyessential component | essential component | AL2O3≥95% | |
| density | 3.85 | 3.6 | |
| water absorption% | 0 | 0 | |
| sintering temperature | 1690 | 1670 | |
| material characters | hardness | 1700 | 1600 |
| break off strength | >6500 | >2900 | |
| compressive strength | 30000 | 25000 | |
| thermal response | maximum service tempera- ture | 1500 | 1400 |
| thermal expansion coefficient | 8 | 7.8 | |
| 10-6/℃ | |||
| 0-1000℃ | |||
| Heat shock resistance T(℃) | 200 | 220 | |
| thermal conductivity W/m.k | 31 | 22 | |
| electrical specification | volume resistivity Ω.cm | >1012 | >1012 |
| Insulation destructive power KT/m | 18 | 16 | |
| dielectric constant 1MHZ(E) | 9.2-10.5 | 9.0-10 | |

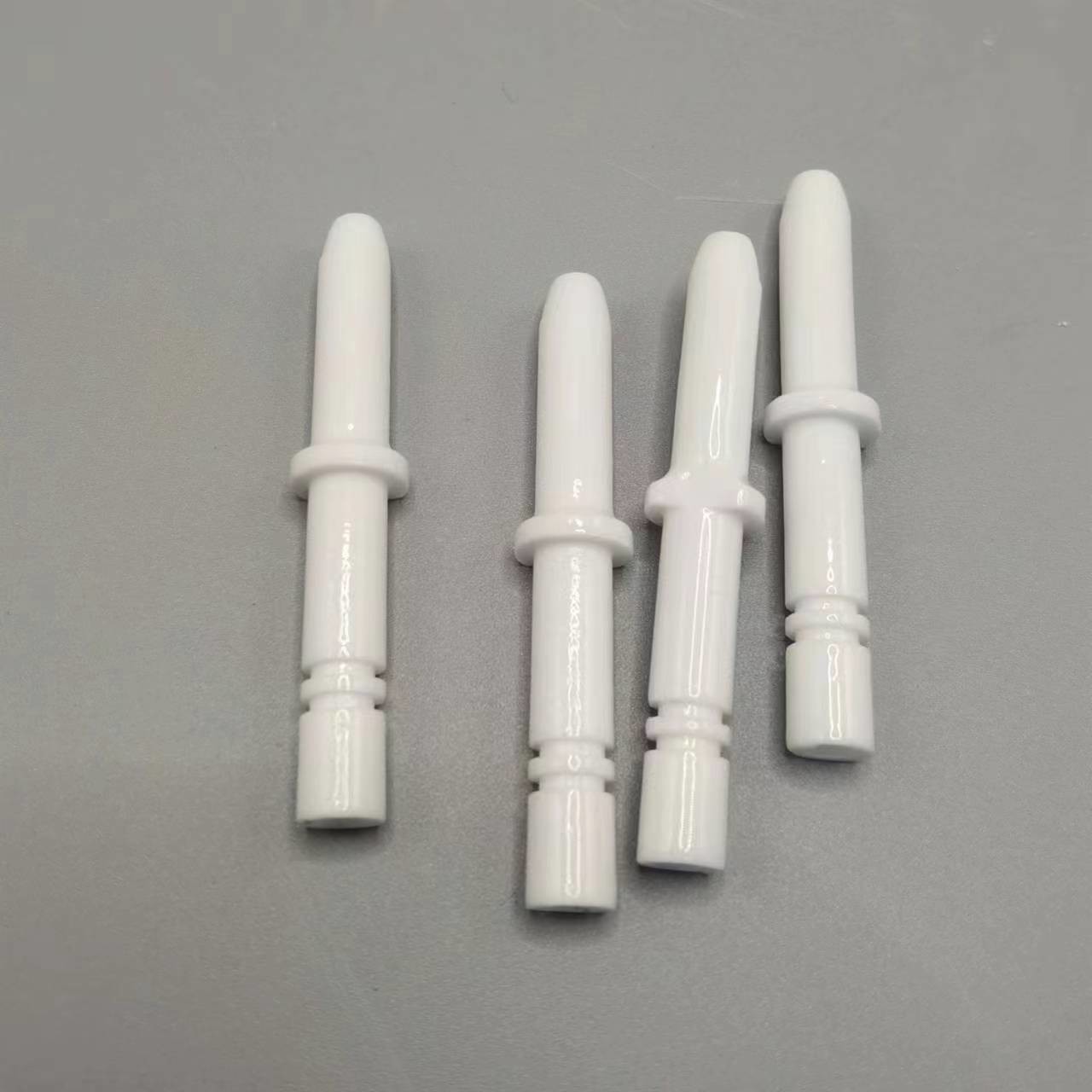

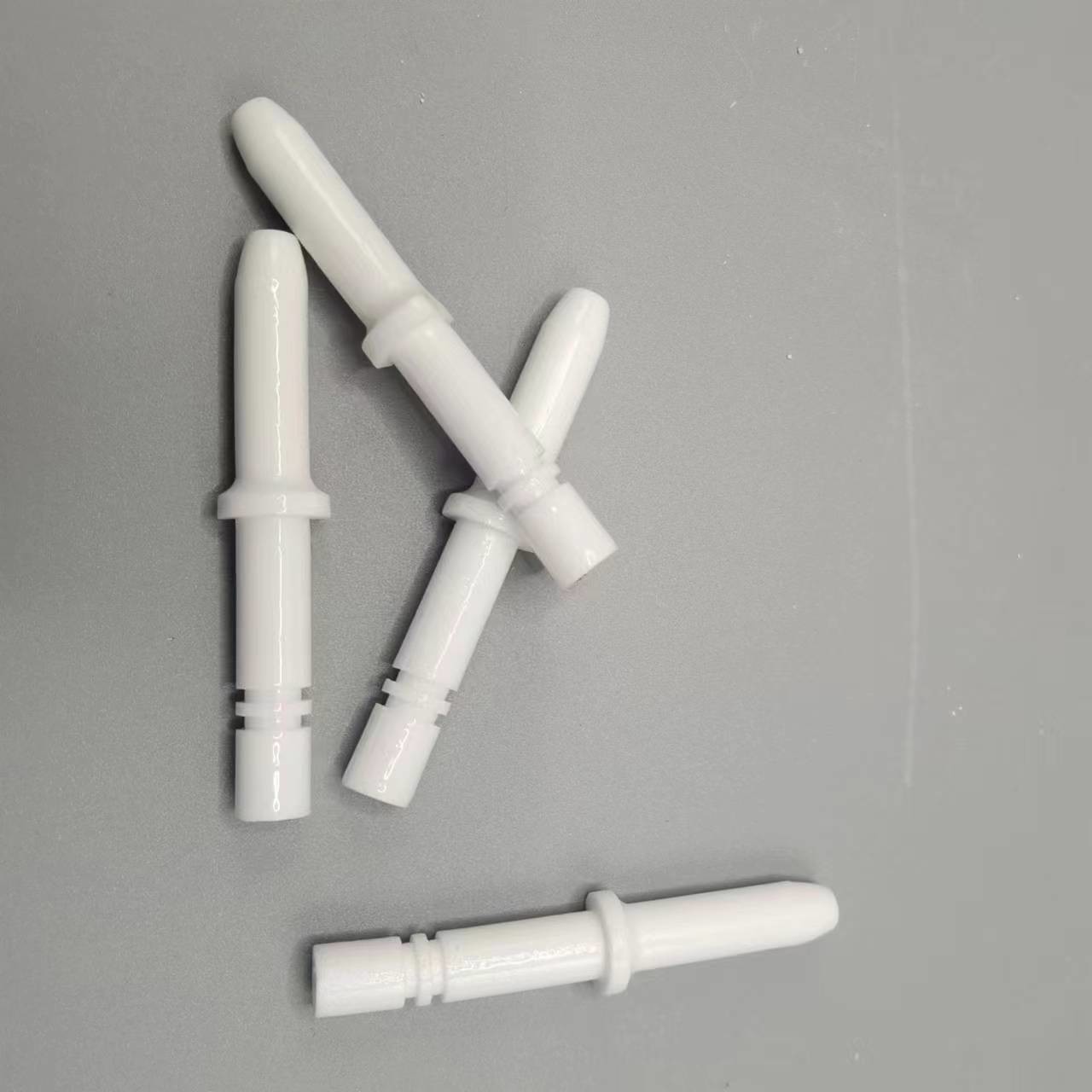

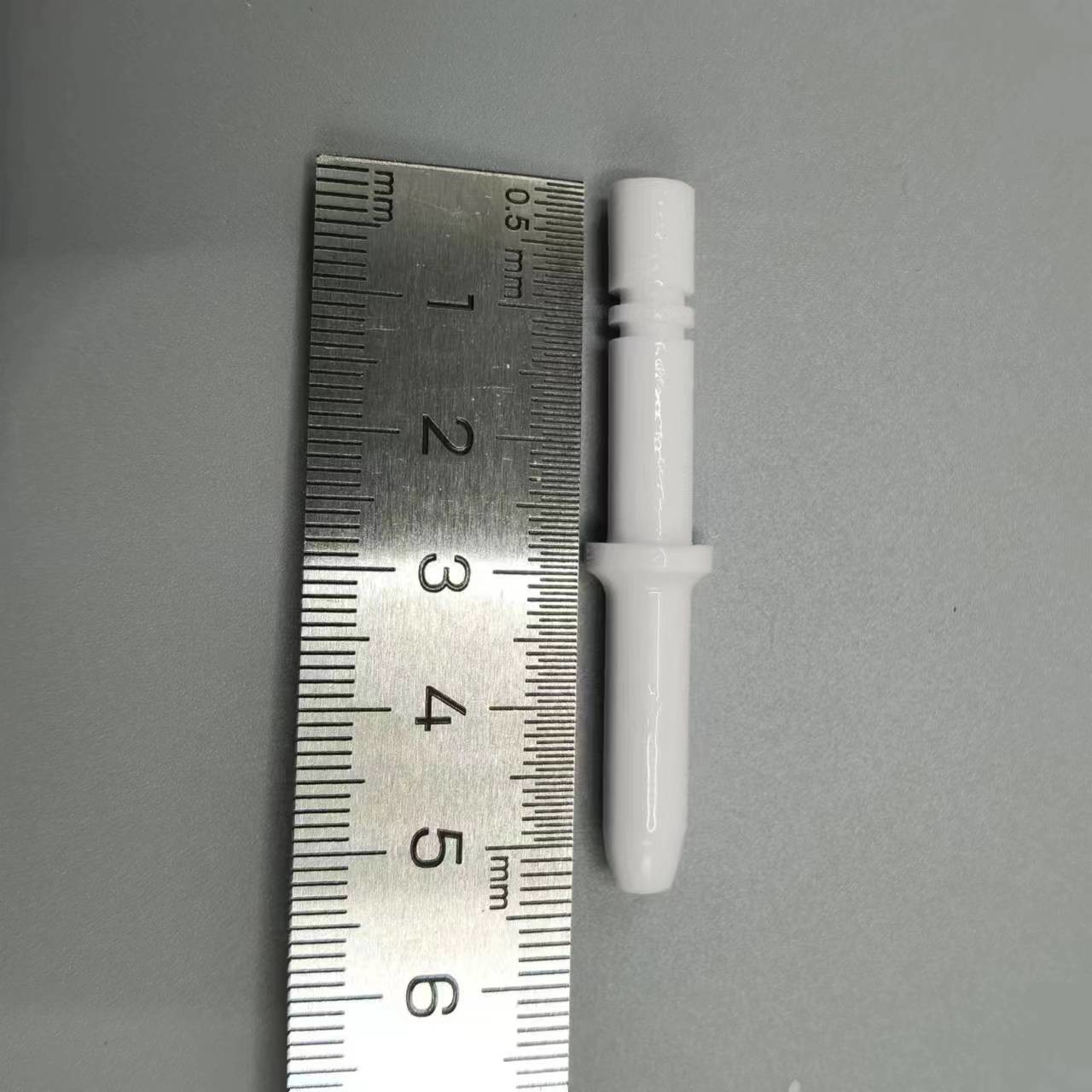

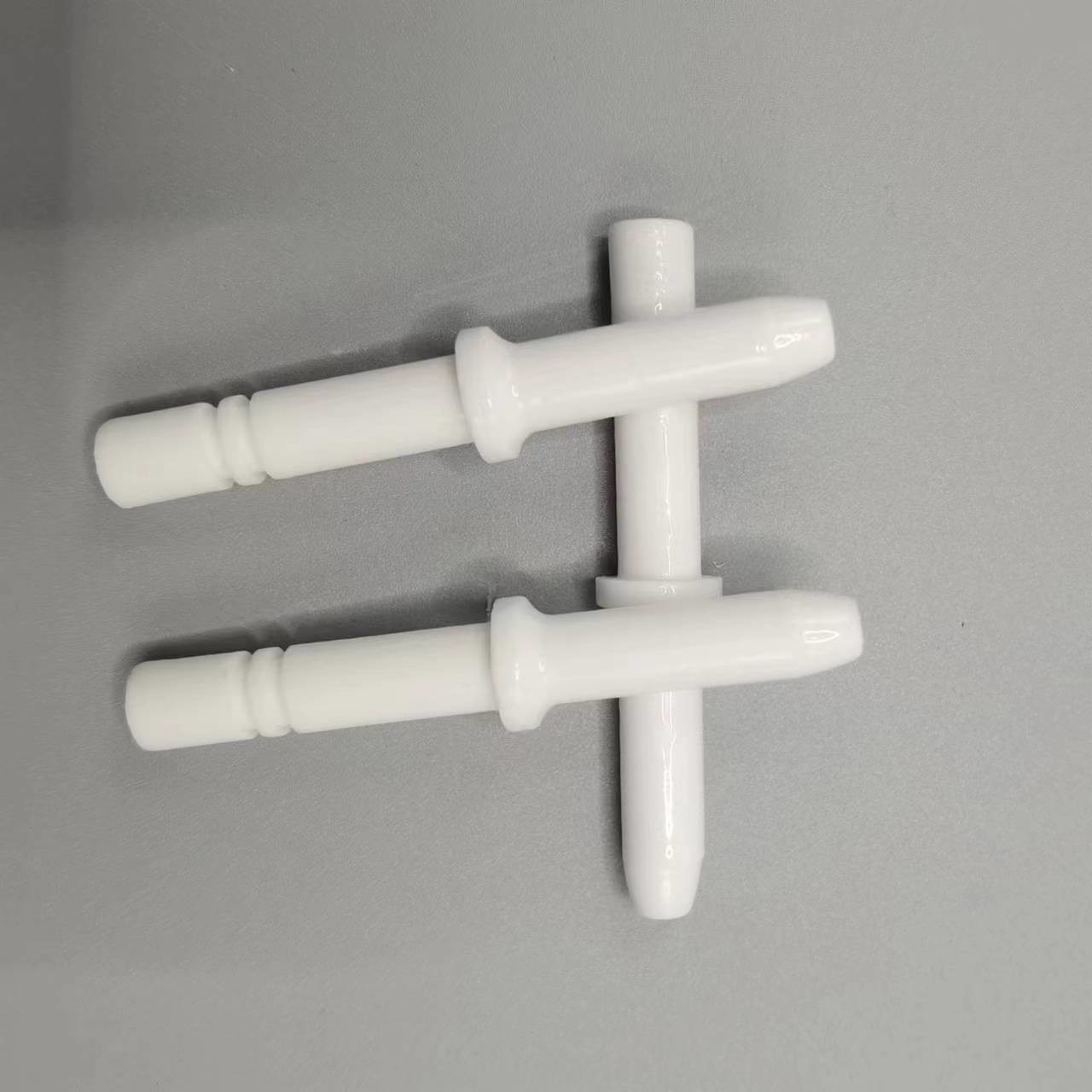

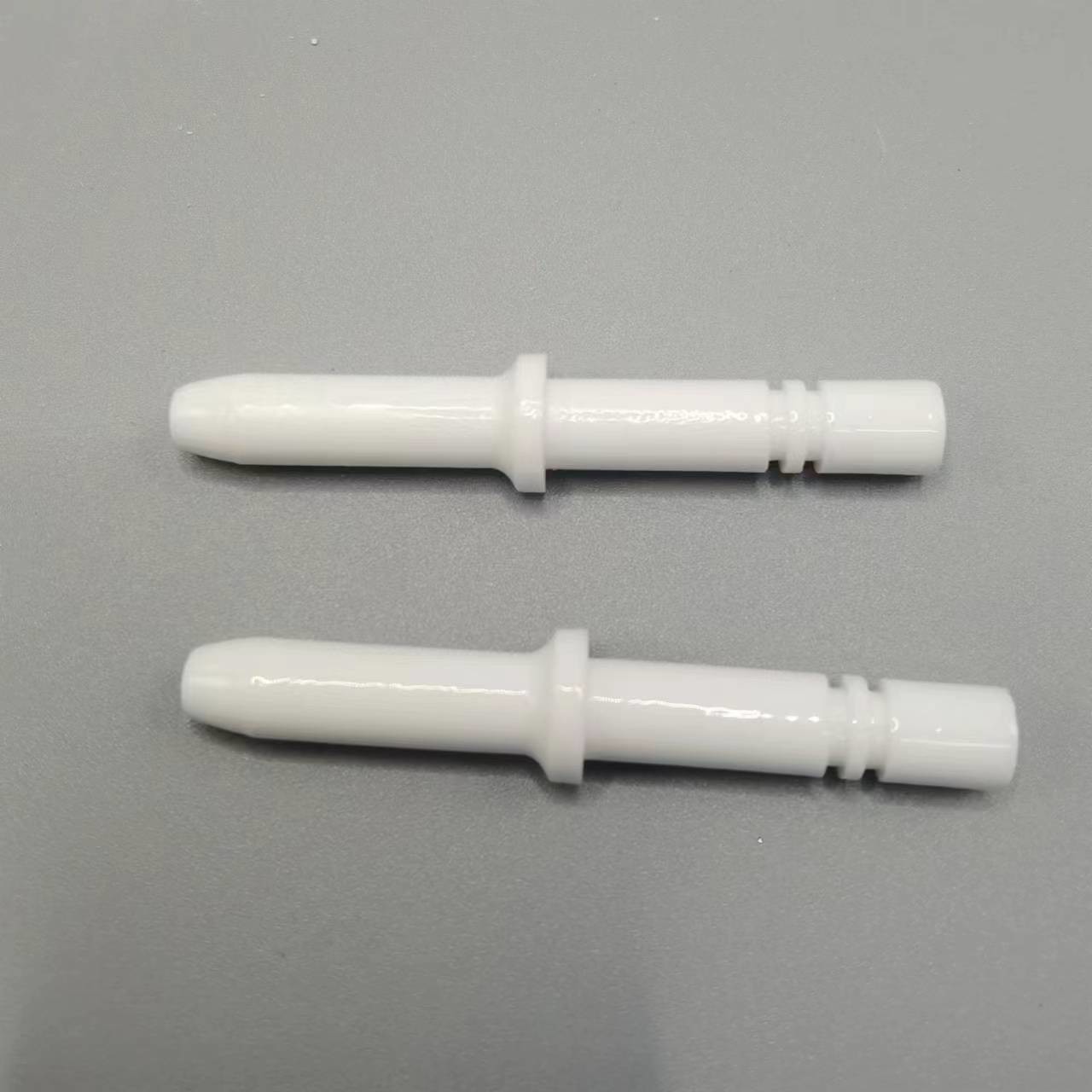

Production pictures:
